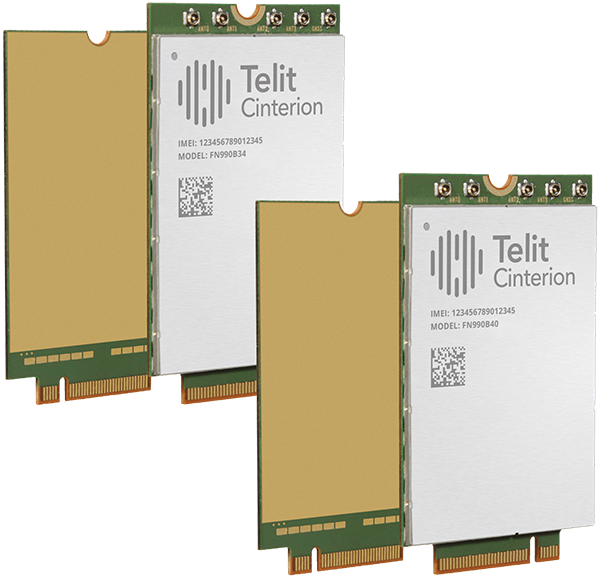

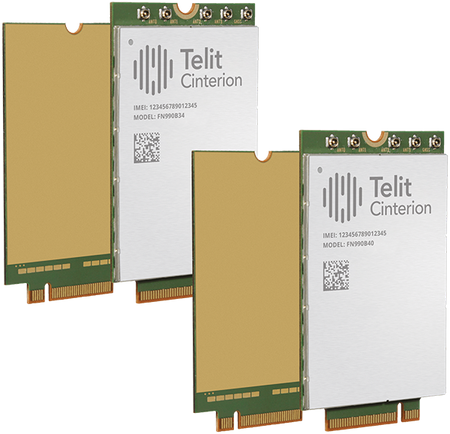

Telit Cinterion FN990B34

Cellular Features:

• 5G 3GPP Rel 17 sub-6 FDD and TDD, SA and NSA operations
• 5G core network Opt. 3a/3x and Opt. 2
• 4G: 7-CA up to 20 layers DL/2-CA UL, 256-QAM DL/UL
• 3G: 3GPP WCDMA Rel 99, HSDPA, HSUPA, HSPA+ and DCHSPA+ (42DL/11UL  Mbps)
• GNSS: GPS, GLONASS, Galileo and BeiDou support
• Two GNSS paths to support simultaneous L1 and L5 operation
• 4 x 4 MIMO DL support on all 4G and 5G MHB and UHF bands
• 2 x 2 MIMO DL support on LB and B46 bands 2 x 2 MIMO UL support on bands 1, 25, 3, 7, 41, 48, 66, 77, 78, 79
• Four LTE and sub-6 antenna connectors with GNSS shared path
• SRS support: 1T/2R (TDD-LTE), 1T/4R, 2T/4R (TDD-NR SA)
• 3GPP standard and proprietary Telit Cinterion AT commands
• AppZone development environment

Certifications:

FCC, IC, CE/RED, NCC, RCM, GCF, PTCRB, Various MNOs*
