Product Overview:

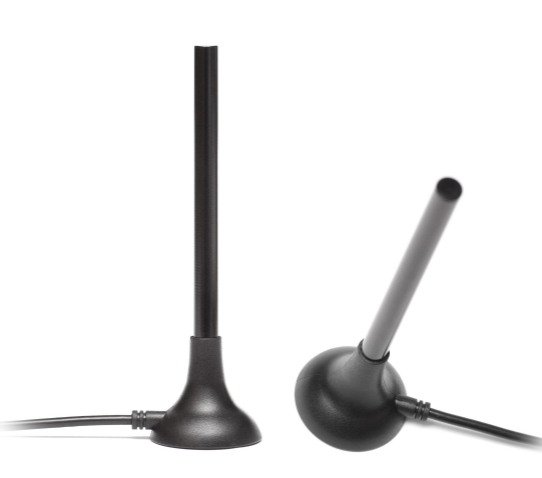

The ANT-LXM66476-SMA-M is a magnetic-mount 5G antenna that offers excellent performance across multiple frequencies. It is ideal for applications where portability and easy installation are required.
Key Features:
- Supports 5G, 4G LTE, 3G, and 2G
- Magnetic mount for quick installation
- Ground-plane dependent
- Customizable cable and connector options
- Dimensions: Ø 31 × 109 mm
Technical Specifications:
-
Frequency Ranges:
- 617-960 MHz
- 1427-2690 MHz
- 3300-5000 MHz
- 5150-5925 MHz
- Peak Gain: 2.9 dBi
- Impedance: 50 Ohm
- Polarization: Linear
- Max Input Power: 35W
- Connector Type: SMA-Male
- Cable Length: 300 cm (custom lengths available)
- Cable Type: LL100
- Operating Temperature: -40°C to +85°C
Installation Notes:
This antenna is designed for magnetic mounting. Ensure the mounting surface is metallic for optimal signal performance.
Frequently Asked Questions:
Q1: Can the antenna be easily relocated?
A1: Yes, the magnetic mount allows for quick and easy relocation of the antenna without requiring tools.
Q2: Does the antenna require a ground plane?
A2: Yes, this antenna is ground-plane dependent for optimal performance.
Inquire for customization options eg connector, cable length, and bulk quantity.
