Beschreibung

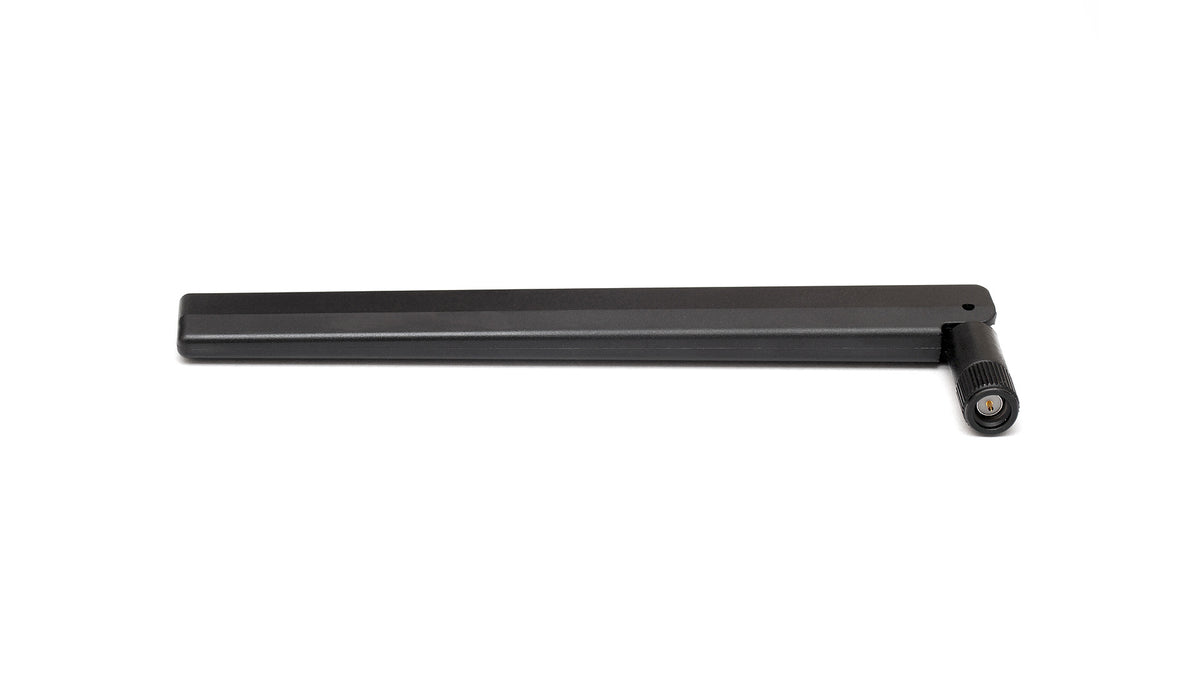

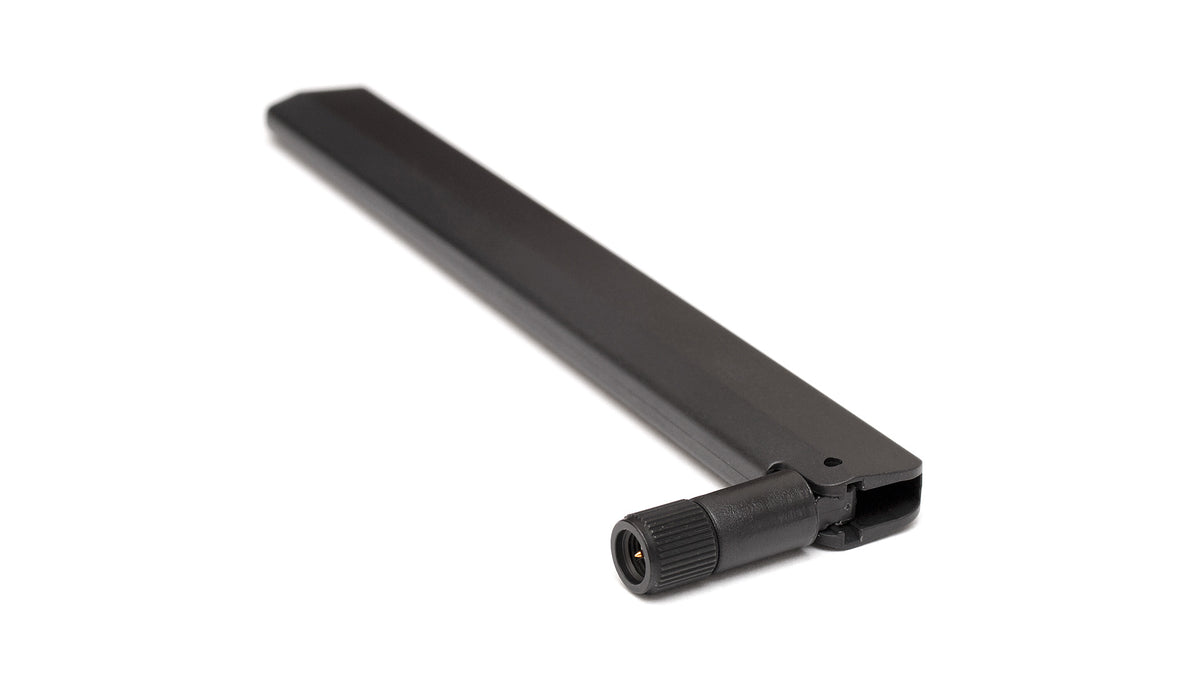

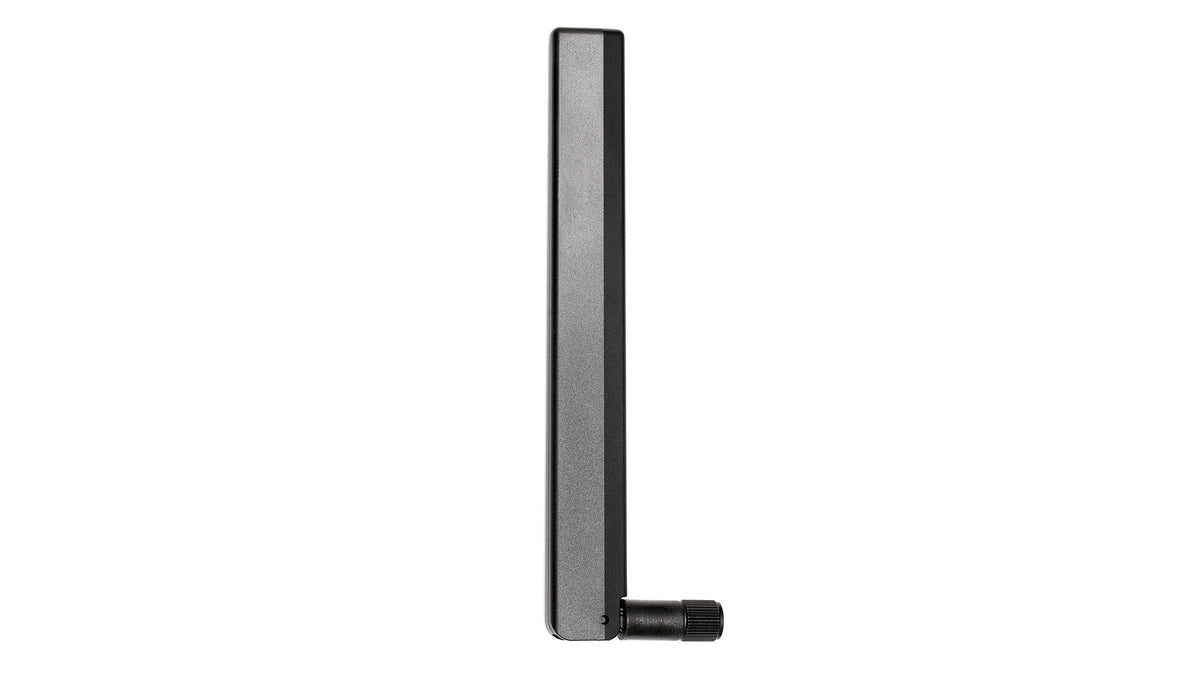

The 2JW1124W-C952N_CU010375 is a 4G LTE/3G/2G Ultra Wideband Hinged Connector Antenna from 2J Antennas. It uses a connector mount design with dimensions 170 × 18 × 10. Key attributes include Dipole Antenna, Ground Plane Independent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 2.6 dBi 4G LTE Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
4G LTE / Cellular / LPWA / NB-IoT
Connector & Cable
- Connector Type: SMA-Male
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 170 × 18 × 10 mm
Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT
Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~1.7:1, ~1.5:1, ~1.3:1
Efficiency (%): ~54, ~60, ~67
Peak Gain (dBi): ~0.6, ~2.6, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Dipole Antenna
- Ground Plane Independent
- Wide band Antenna
- 698-2700 MHz 4GLTE Bands
- 2.6 dBi 4G LTE Peak Gain
- High Performance
- Hinged Connector
Product family reference: 2JW0924-C952B. Configuration SKU: 2JW1124W-C952N_CU010375.
2JW1124W-C952N_CU010375 4G LTE/3G/2G Ultra Wideband Hinged Antenna
