Beschreibung

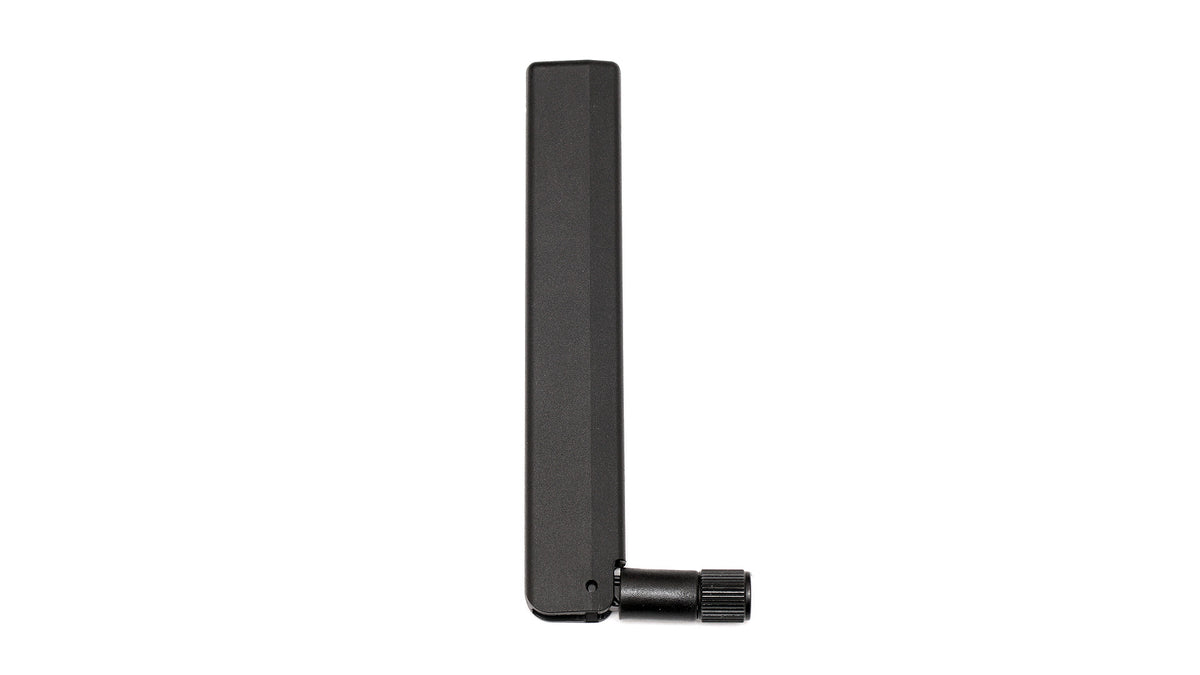

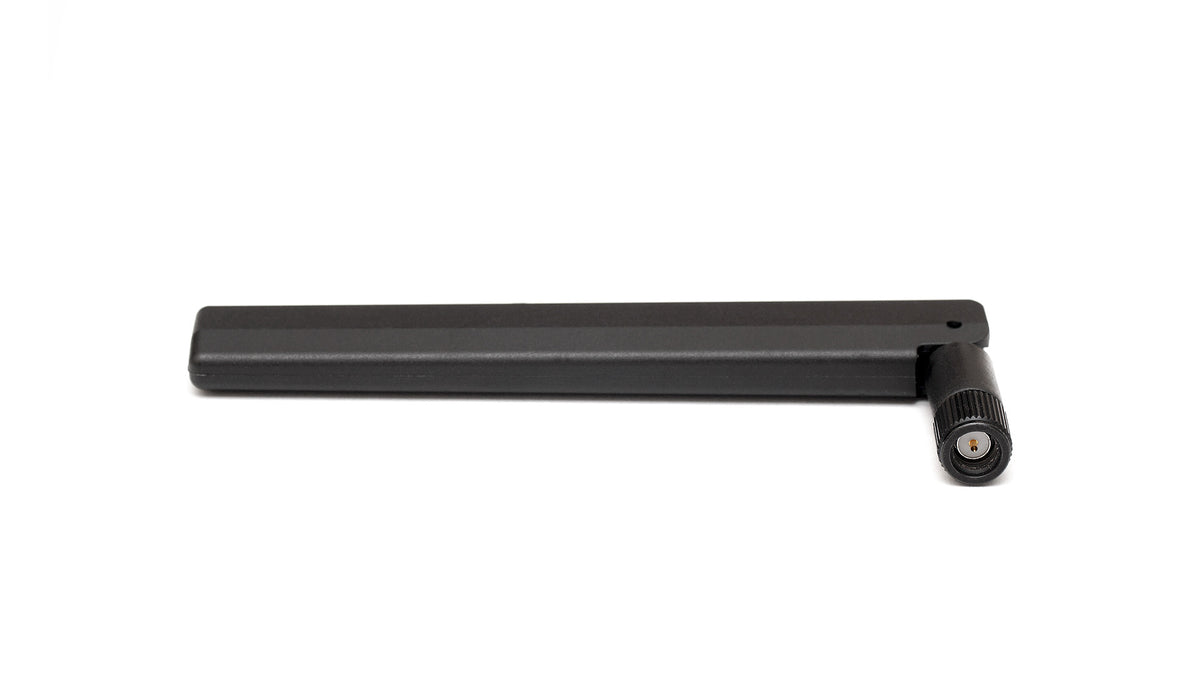

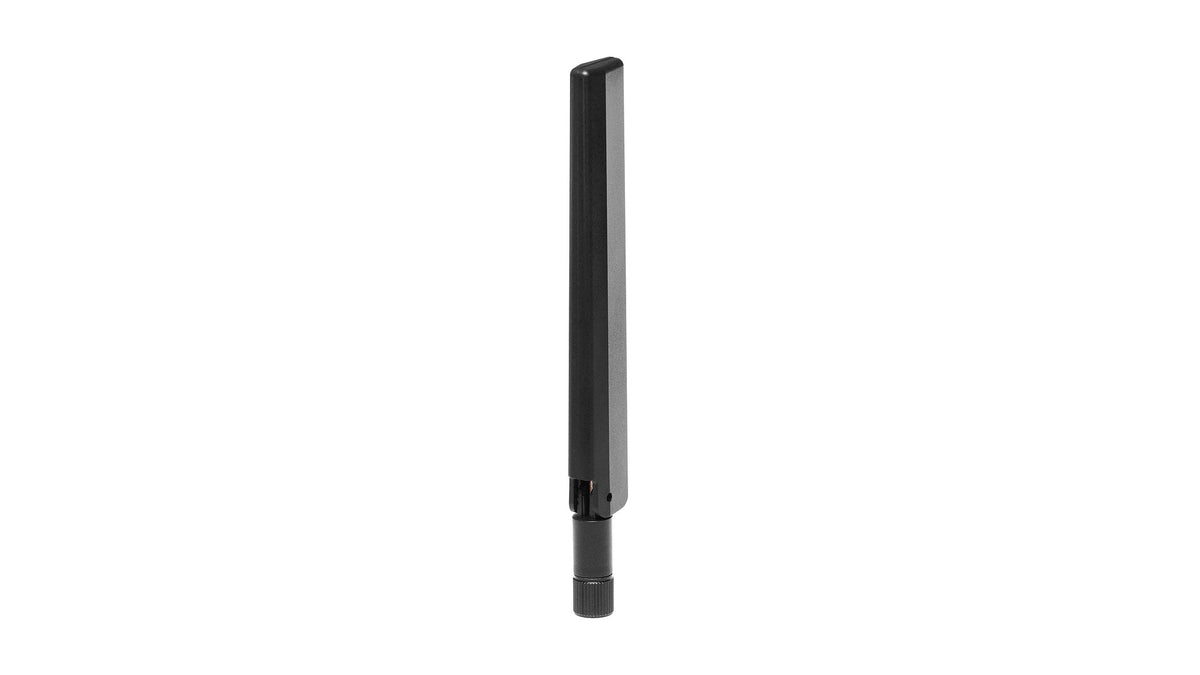

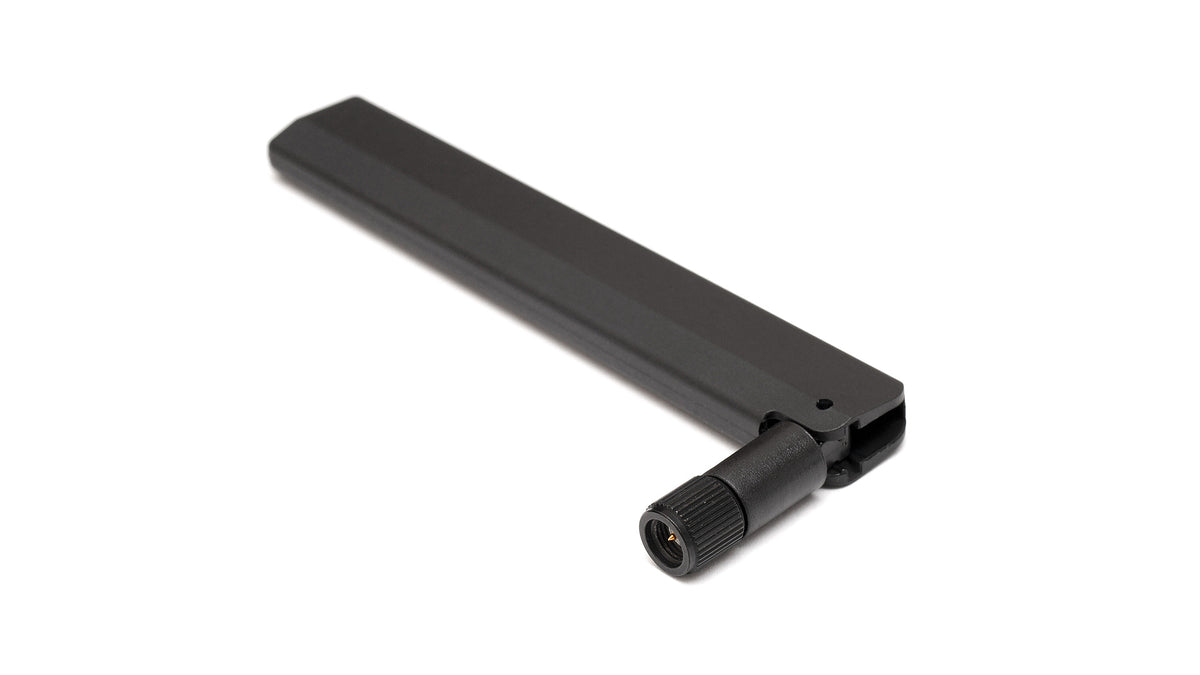

The 2JW1115-C952B_CU010375 is a 868/915 MHz ISM Ground plane independent connector mount Antenna from 2J Antennas. It uses a connector mount design with dimensions 135 × 19 × 10. Key attributes include Dipole Antenna, Dual Band 868/915 MHz ISM Antenna, Ground Plane Independent, 3.3 dBi 868/915 MHz ISM Peak Gain, High Performance. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 135 × 19 × 10 mm
Connection 1 — 868 & 915 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928
VSWR: ~1.5:1, ~3.0:1
Efficiency (%): ~70.0, ~70.9
Peak Gain (dBi): ~2.3, ~3.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Dipole Antenna
- Dual Band 868/915 MHz ISM Antenna
- Ground Plane Independent
- 3.3 dBi 868/915 MHz ISM Peak Gain
- High Performance
- Hinged Connector
Product family reference: 2JW1115-C952B. Configuration SKU: 2JW1115-C952B_CU010375.
