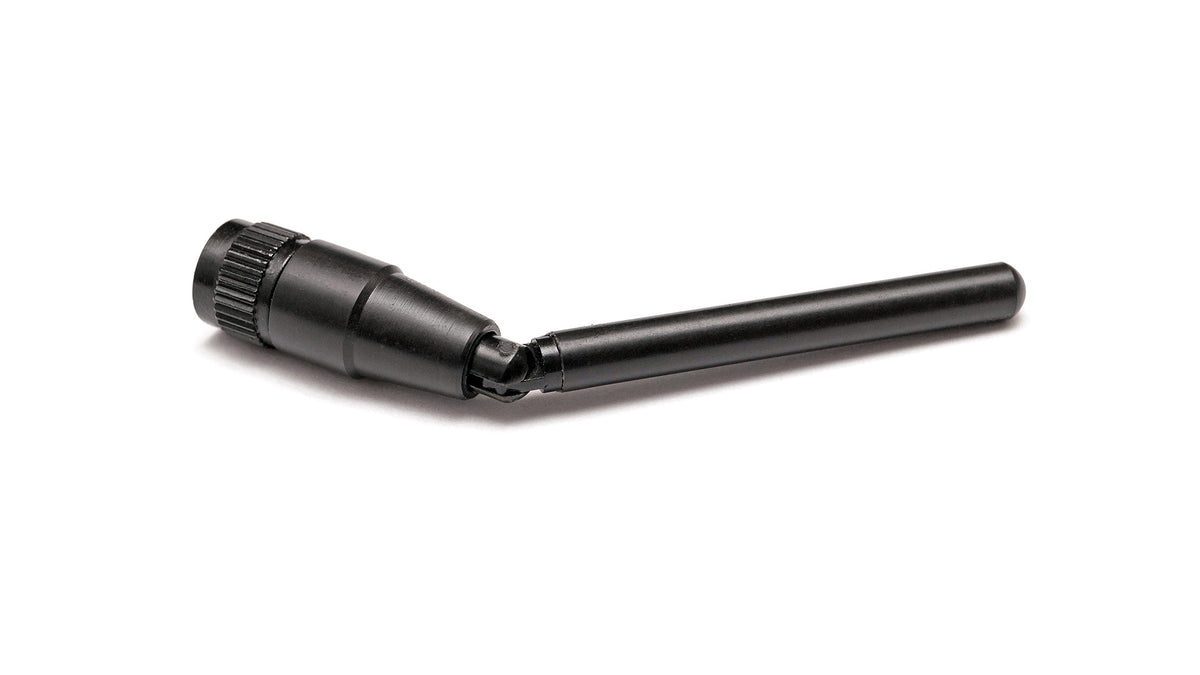

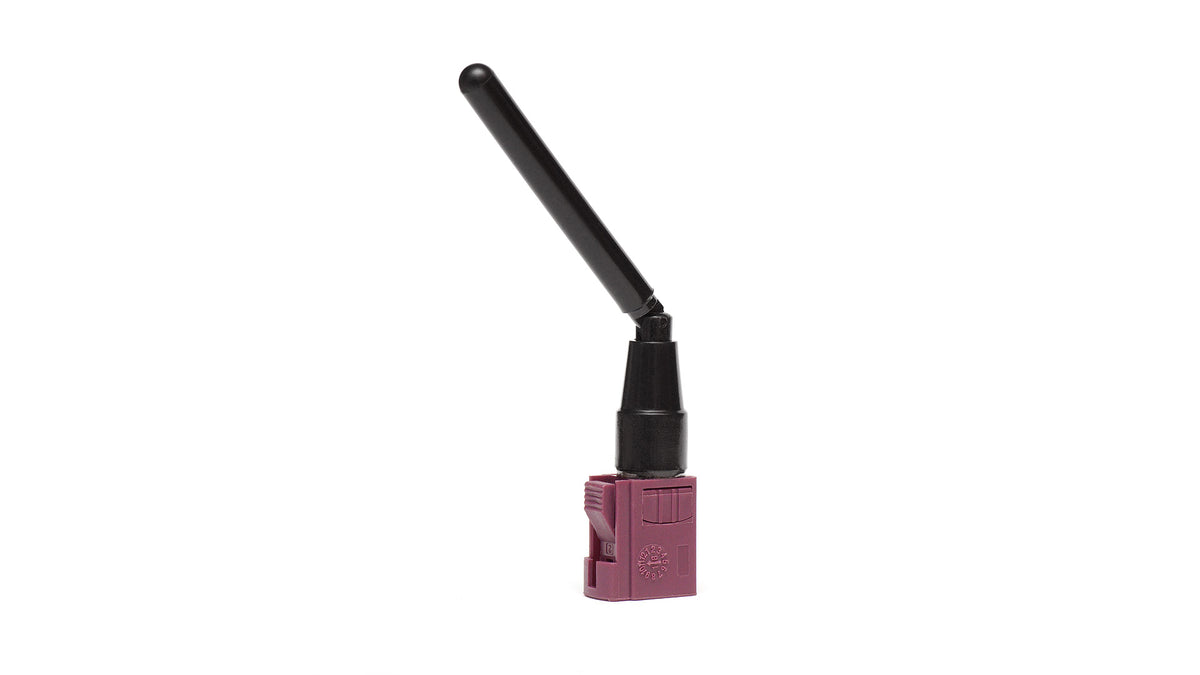

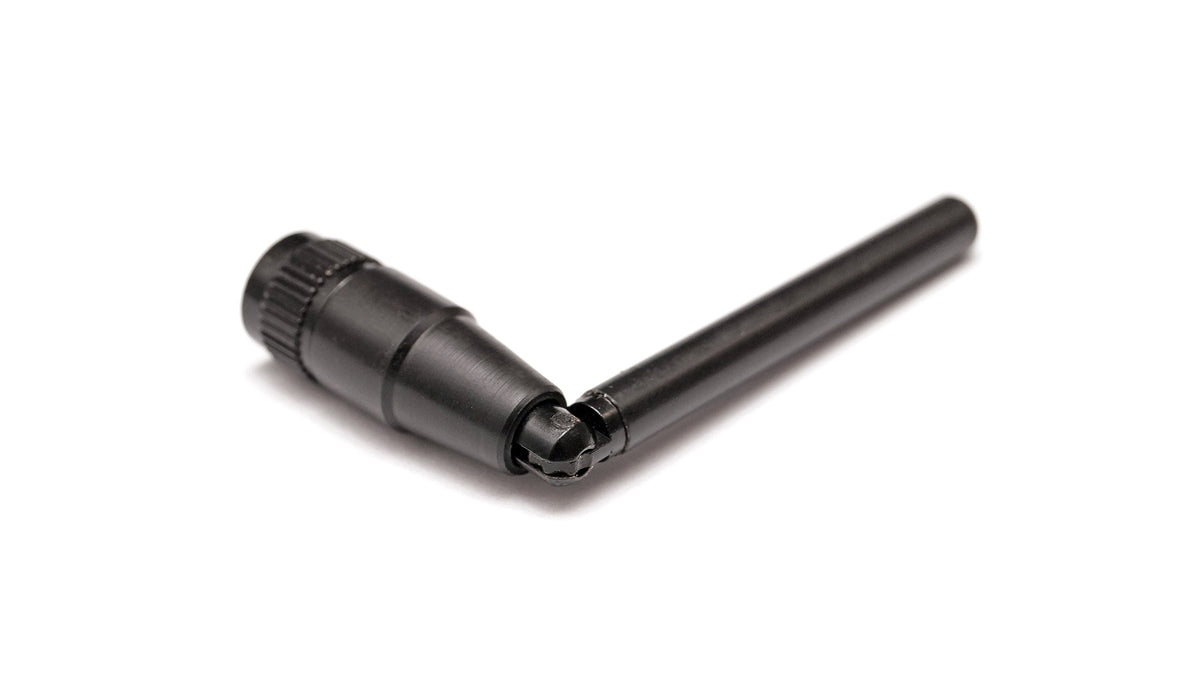

The 2JW1024W_CU010375 is a 4G LTE/3G/2G Low Profile High Efficiency Antenna from 2J Antennas. It uses a connector mount design with dimensions Ø 10 × 71. Key attributes include Monopole Antenna, Ground Plane Dependent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 4.6 dBi 4G LTE Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
4G LTE / Cellular / LPWA / NB-IoT
Connector & Cable
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
- See datasheet for connector and cable options.
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: Ø 10 × 71 mm
Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT
Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~3.1:1, ~1.7:1, ~1.5:1
Efficiency (%): ~58, ~67, ~74
Peak Gain (dBi): ~0.1, ~2.9, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Key Features
- Monopole Antenna
- Ground Plane Dependent
- Wide band Antenna
- 698-2700 MHz 4GLTE Bands
- 4.6 dBi 4G LTE Peak Gain
- High Efficiency
- Small Form Factor
- Hinged Connector
Product family reference: 2JW1024. Configuration SKU: 2JW1024W_CU010375.
2JW1024W_CU010375 4G LTE/3G/2G Low Profile High Efficiency Antenna
