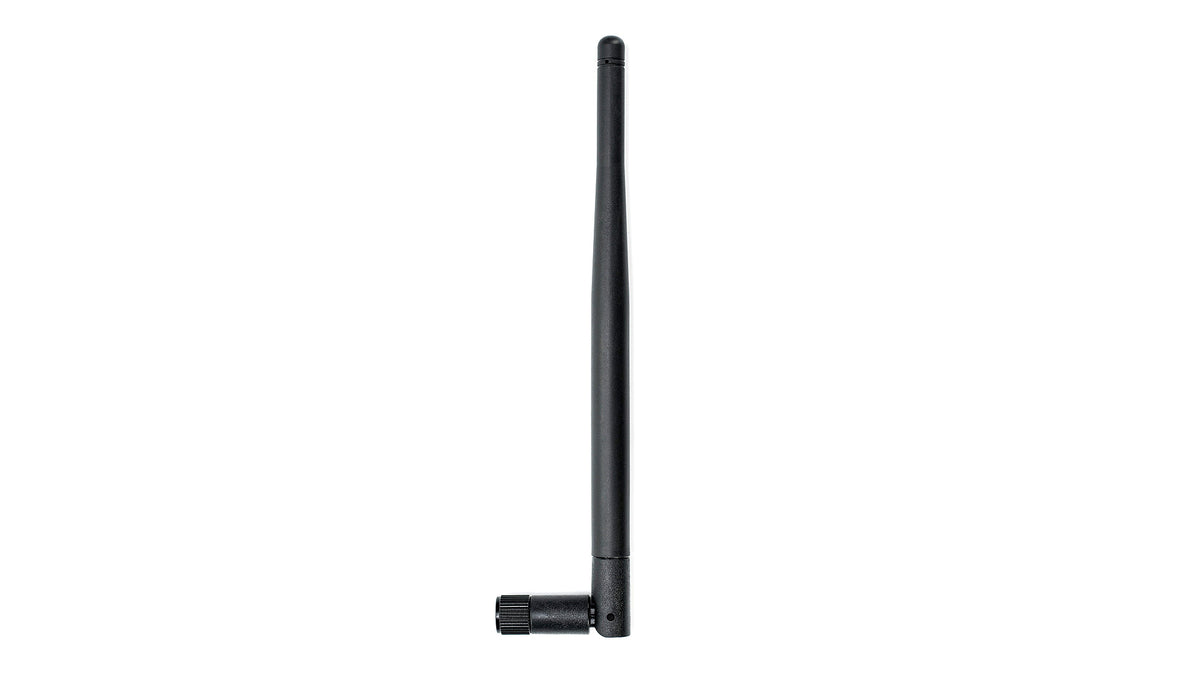

The 2JW0502W-C442W_CU010375 is a Tri Band WIFI 6E / WIFI 7 ISM Hinged connector Antenna from 2J Antennas. It uses a connector mount design with dimensions 173 × Ø 10. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Connector & Cable
- Connector Type: SMA-Male
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
- White C442W variant; datasheet/media from C442B catalog page
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 173 × Ø 10 mm
Connection 1 — 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.2:1, ~2.1:1, ~3.4:1
Efficiency (%): ~58.4, ~56.1, ~44.3
Peak Gain (dBi): ~3.1, ~6.6, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Product family reference: 2JW0502-C442B. Configuration SKU: 2JW0502W-C442W_CU010375.
