Beschreibung

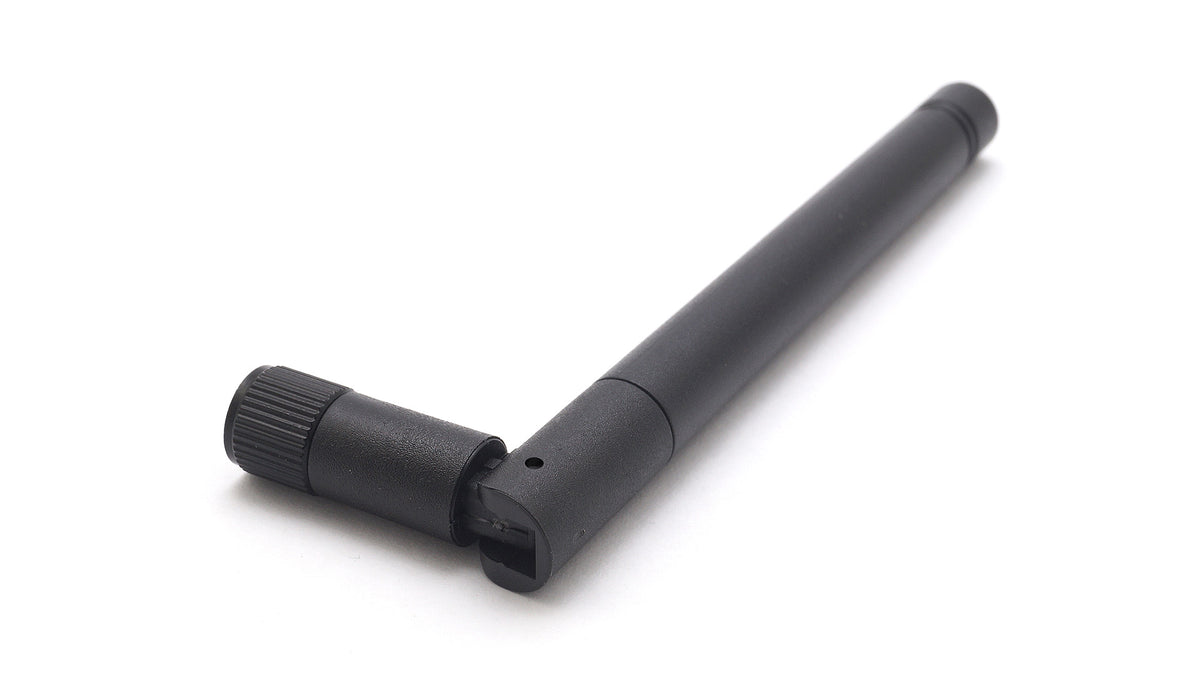

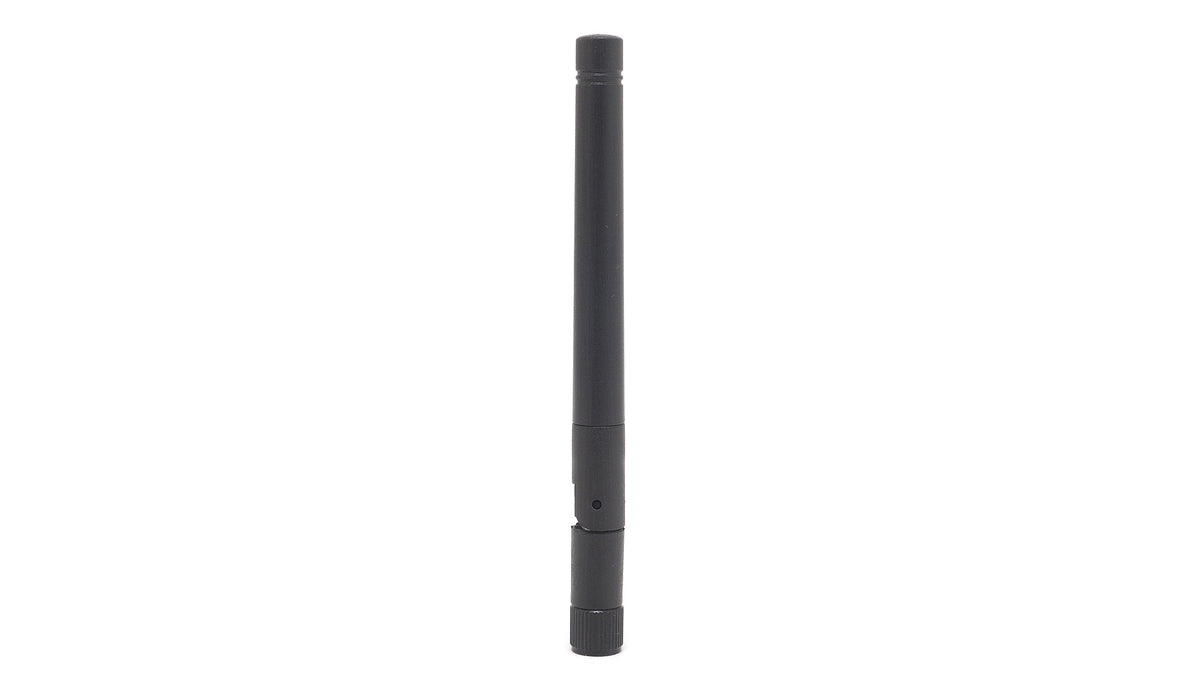

The 2JW0315W-868-C675N_CU010375 is a 868 MHz ISM Narrowband Antenna from 2J Antennas. It uses a connector mount design with dimensions 113 × Ø 10. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
- White/C675N variant; datasheet/media from C675B catalog page
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 113 × Ø 10 mm
Connection 1 — 868 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~1.8:1
Efficiency (%): ~51.2
Peak Gain (dBi): ~1.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Product family reference: 2JW0315-868-C675B. Configuration SKU: 2JW0315W-868-C675N_CU010375.
2JW0315W-868-C675N_CU010375 868 MHz ISM Narrowband Antenna
