Beschreibung

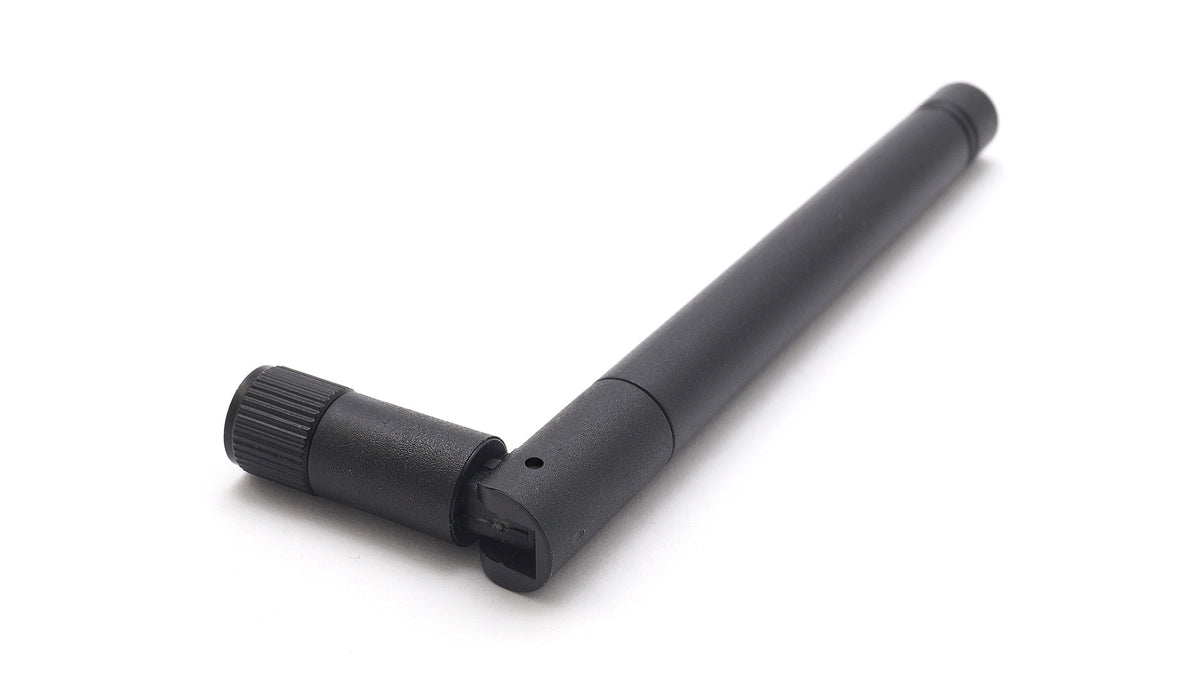

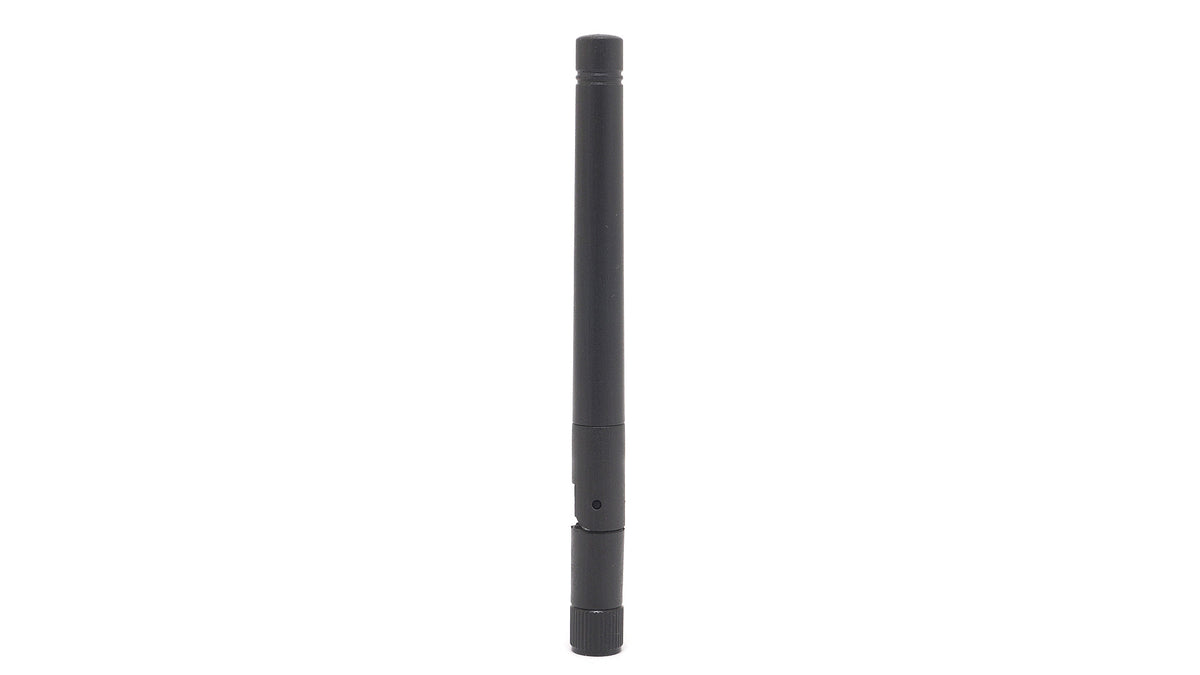

The 2JW0304W-C675W_CU010375 is a CELLULAR Ultra Wideband Antenna from 2J Antennas. It uses a connector mount design with dimensions 113 × 10. Key attributes include Dipole Antenna, Ground Plane Independent, 2.0 dBi 3G 2G Peak Gain, Hinged Connector, Applications Cellular & Wireless Industrial & Automation. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
3G / 2G / Cellular
Connector & Cable
- Connector Type: SMA-Male
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 113 × 10 mm
Connection 1 — 3G / 2G / Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170
VSWR: ~2.1:1, ~1.6:1
Efficiency (%): ~30, ~59
Peak Gain (dBi): ~-1.3, ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Dipole Antenna
- Ground Plane Independent
- 2.0 dBi 3G 2G Peak Gain
- Hinged Connector
- Applications Cellular & Wireless Industrial & Automation
Product family reference: 2JW0304-C675B. Configuration SKU: 2JW0304W-C675W_CU010375.
2JW0304W-C675W_CU010375 CELLULAR Ultra Wideband Antenna
