Beschreibung

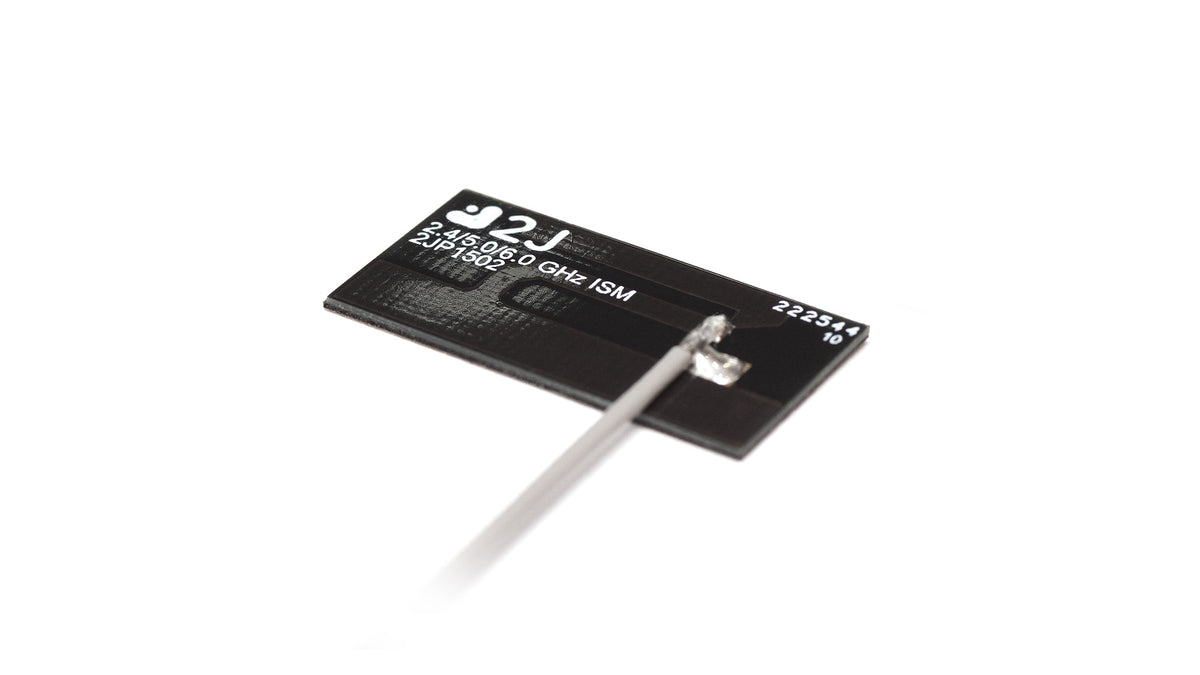

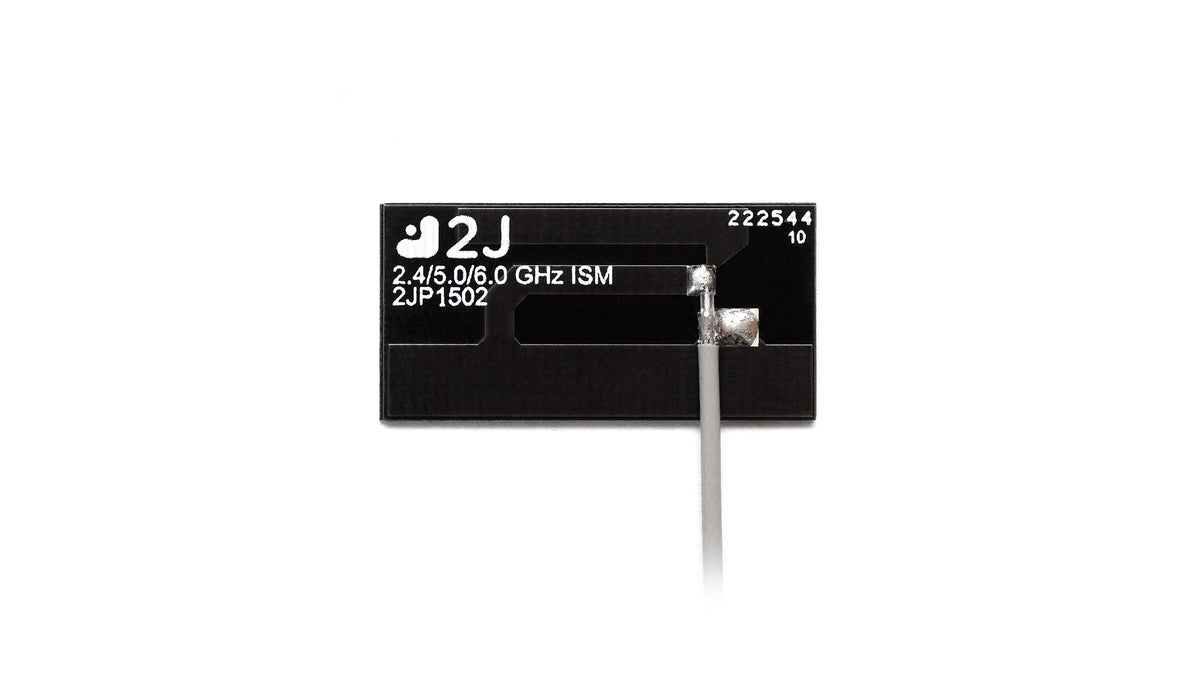

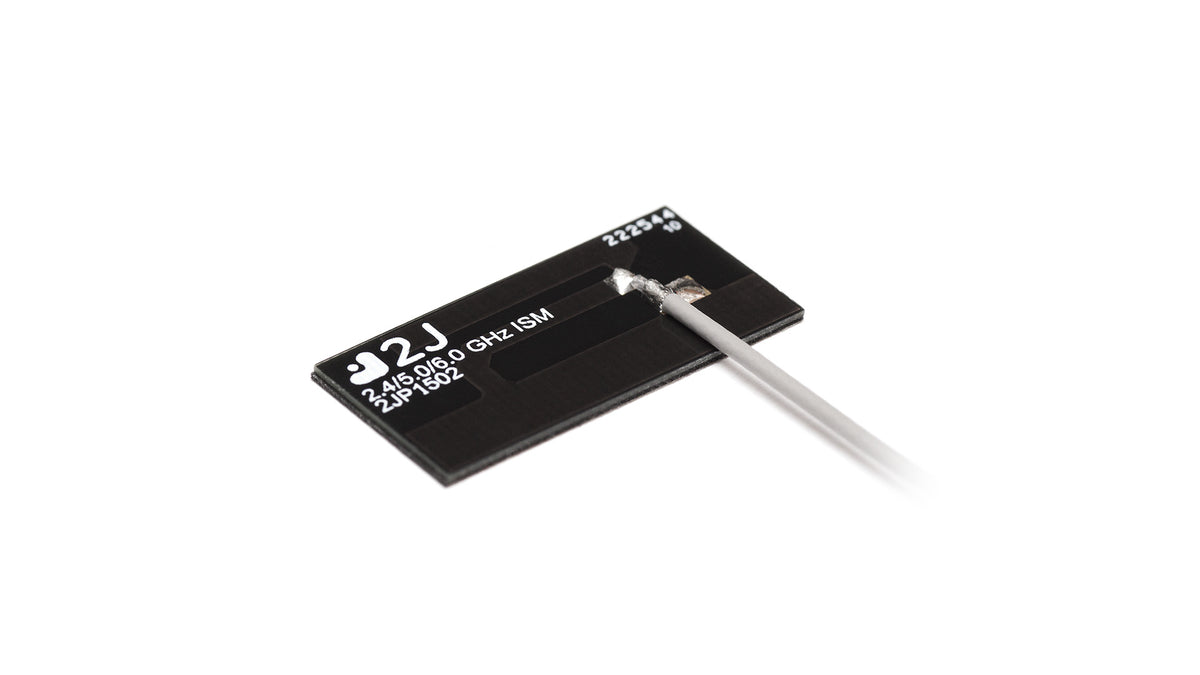

The 2JP1502P-SP-010MC137-UFL is a 2.4/5.0/6.0 GHz ISM WIFI 6E / WIFI 7 High Performance Rigid Fiberglass Embedded Antenna from 2J Antennas. It uses a adhesive mount rigid design with dimensions 30 × 15 × 1. Key attributes include Rigid Internal Antenna, WIFI 6E / WIFI 7 Antenna, Ground Plane Independent, 5.0 dBi WIFI Peak Gain, High Performance. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Connector & Cable
- Connector Type: U.FL / IPEX
- Cable: 10 cm MC137
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount Rigid.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Dimensions: 30 × 15 × 1 mm
Connection 1 — 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.9:1, ~1.8:1, ~1.7:1
Efficiency (%): ~57.7, ~70, ~68.3
Peak Gain (dBi): ~3.1, ~5.0, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Key Features
- Rigid Internal Antenna
- WIFI 6E / WIFI 7 Antenna
- Ground Plane Independent
- 5.0 dBi WIFI Peak Gain
- High Performance
- Self-Adhesive
- Small Form Factor
- Customizable Cable and Connector
Product family reference: 2JP1502P-SP. Configuration SKU: 2JP1502P-SP-010MC137-UFL.
