Beschreibung

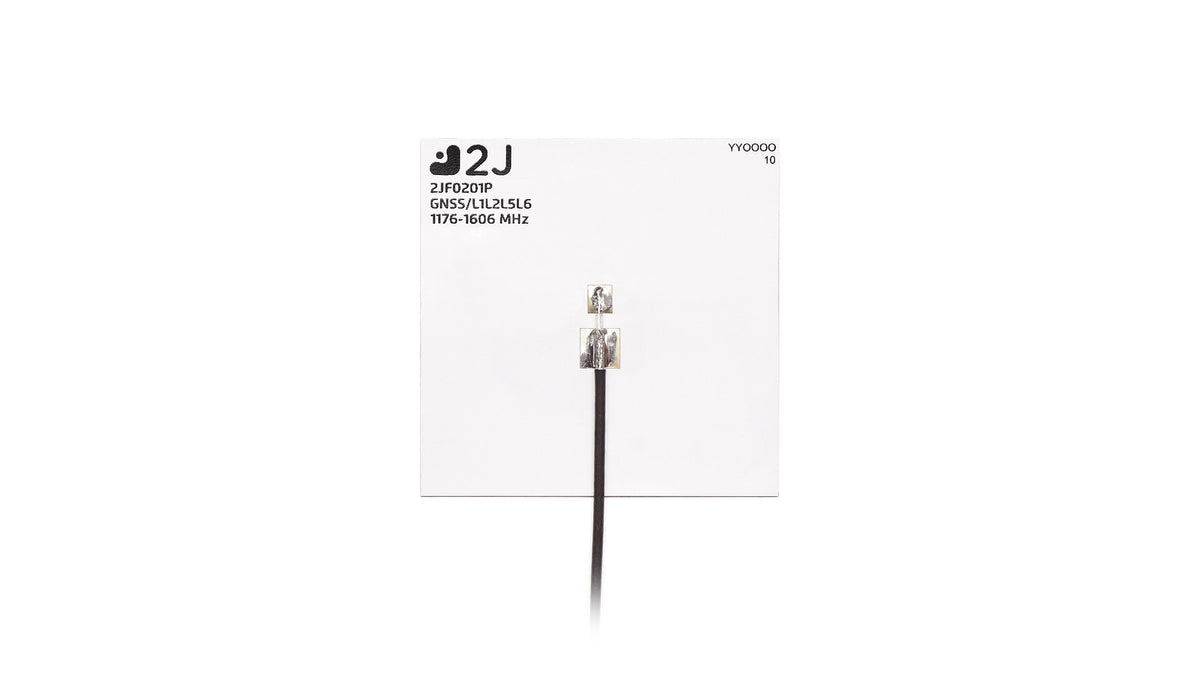

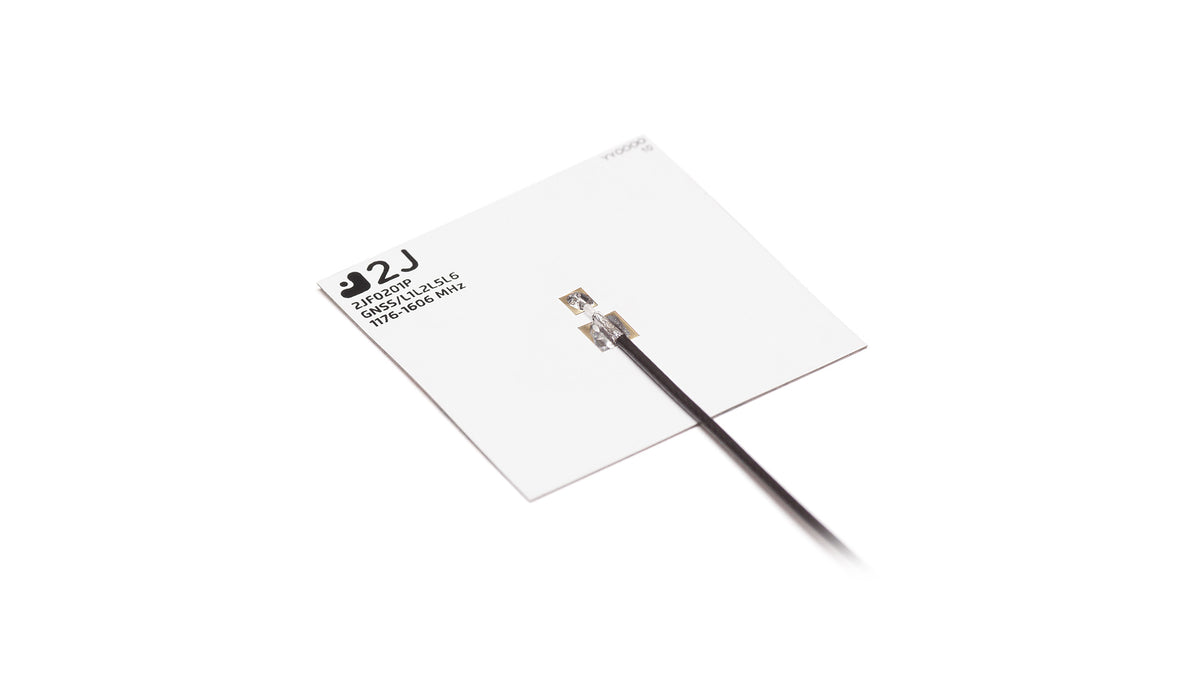

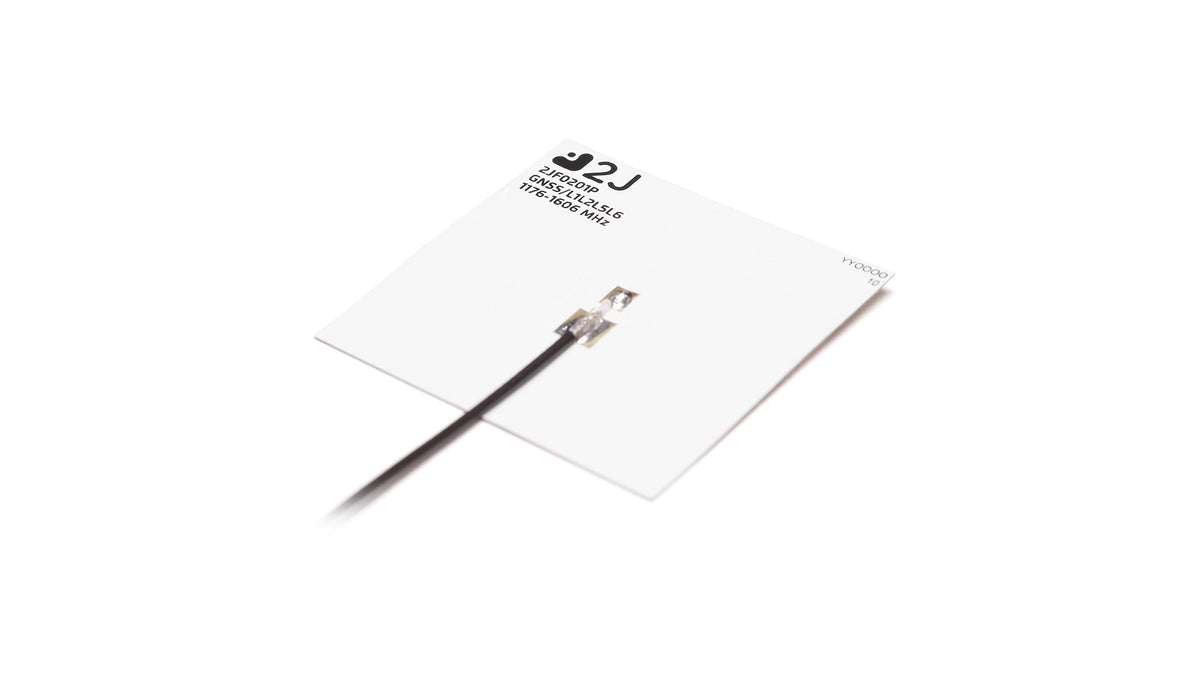

The 2JF0201P-010MC137B-UFL is a High Precision GPS/GNSS/L1/L2/L5/L6 Flexible Polymer Adhesive Antenna from 2J Antennas. It uses a adhesive mount flexible design with dimensions 45.4 × 45.4 × 0.2. Key attributes include Passive GNSS Antenna, L1/L2/L5/L6 Multi-Band-Constellation, Flexi Internal Antenna, Ground Plane Independent, 4.9 dBi GNSS Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
Connector & Cable
- Connector Type: U.FL / IPEX
- Cable: 10 cm MC137B
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount Flexible.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Dimensions: 45.4 × 45.4 × 0.2 mm
Connection 1 — High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
Standards: GPS(L5), BeiDou(B2a, B2b), QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), GLONASS(L2OF), QZSS(L2C) / GPS(L6), BeiDou(B3), QZSS(L6), Galileo(E6) / GPS(L1C), GLONAS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)
Frequency: 1176.45, 1207.14 / 1227.6, 1246.00 / 1268.52, 1278.75 / 1561.09, 1575.42, 1602.00
VSWR: ~1.6:1, ~1.4:1, ~2.1:1, ~1.2:1
Efficiency (%): ~75.0, ~76.2, ~74.2, ~79.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Passive GNSS Antenna
- L1/L2/L5/L6 Multi-Band-Constellation
- Flexi Internal Antenna
- Ground Plane Independent
- 4.9 dBi GNSS Peak Gain
- High Efficiency
- Self-Adhesive
- Customizable Cable and Connector
Product family reference: 2JF0201P. Configuration SKU: 2JF0201P-010MC137B-UFL.
