Beschreibung

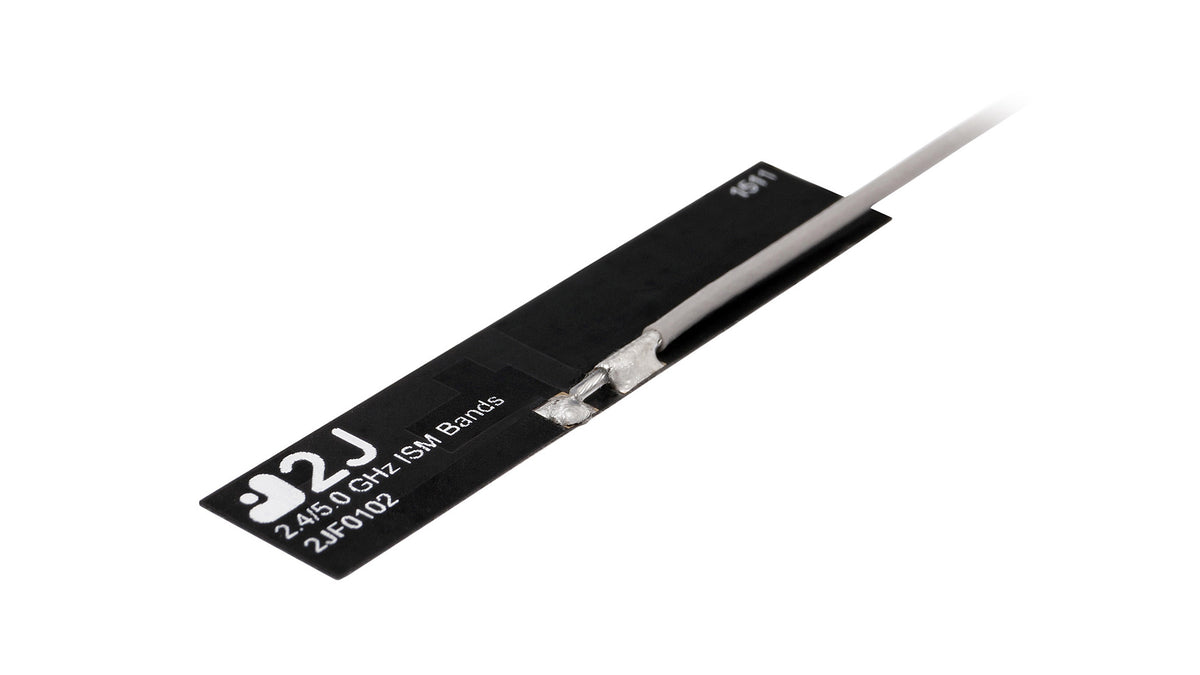

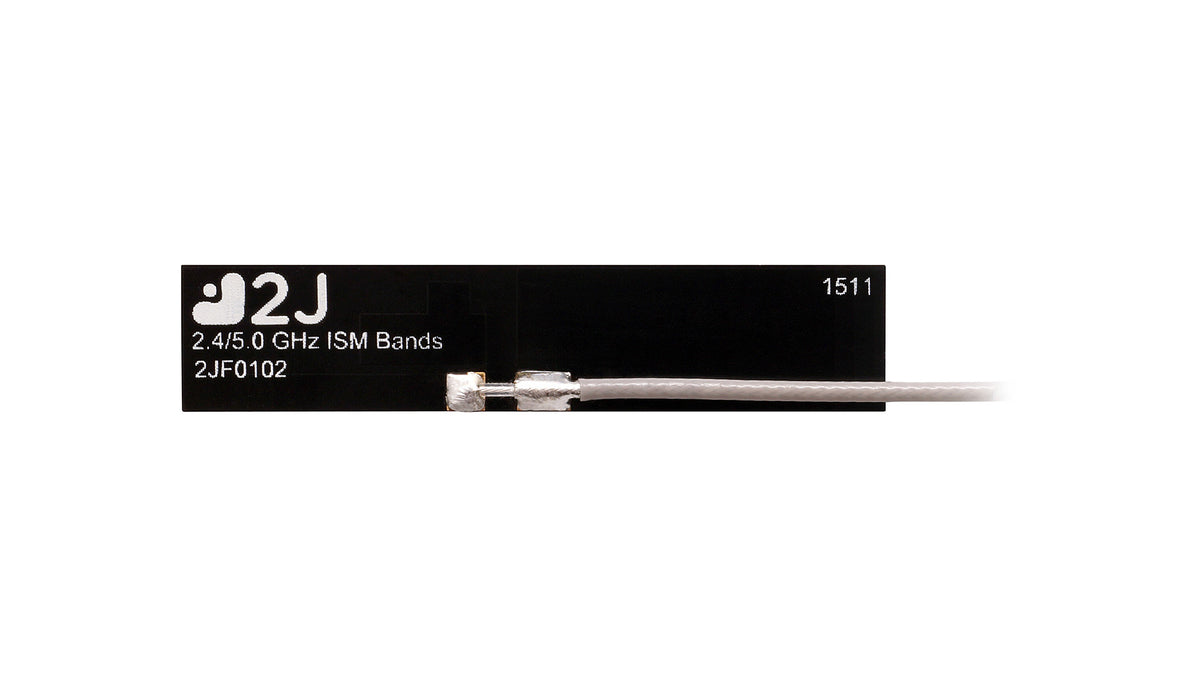

The 2JF0102P-010/113-UFL is a 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Flexible ultra-thin PCB Adhesive Antenna from 2J Antennas. It uses a adhesive mount flexible design with dimensions 39.6 × 8.4 × 0.1. Key attributes include Flexi Internal Antenna, WIFI 6E / WIFI 7 Antenna, Ground Plane Independent, 3.8 dBi WIFI Peak Gain, High Performance. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Connector & Cable
- Connector Type: U.FL / IPEX
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount Flexible.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Dimensions: 39.6 × 8.4 × 0.1 mm
Connection 1 — 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.2:1, ~1.4:1, ~2.1:1
Efficiency (%): ~76, ~82, ~60.4
Peak Gain (dBi): ~2.2, ~3.8, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Flexi Internal Antenna
- WIFI 6E / WIFI 7 Antenna
- Ground Plane Independent
- 3.8 dBi WIFI Peak Gain
- High Performance
- High Efficiency
- Self-Adhesive
- Small Form Factor
- Customizable Cable and Connector
Product family reference: 2JF0102P. Configuration SKU: 2JF0102P-010/113-UFL.
