Beschreibung

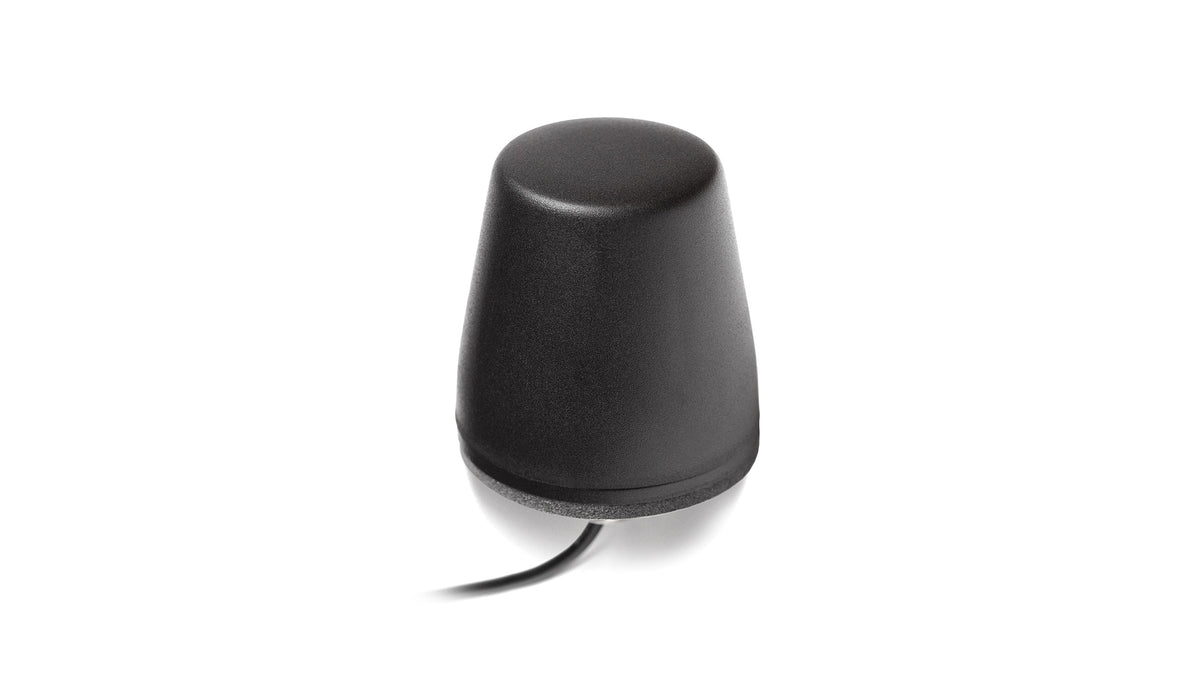

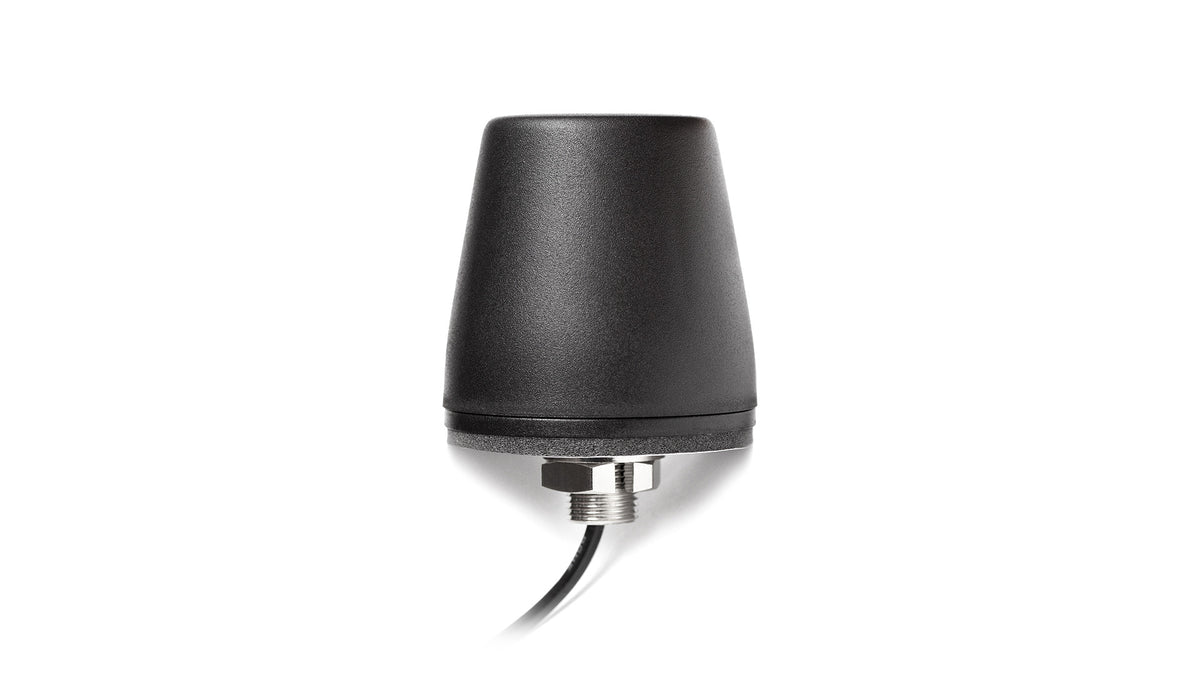

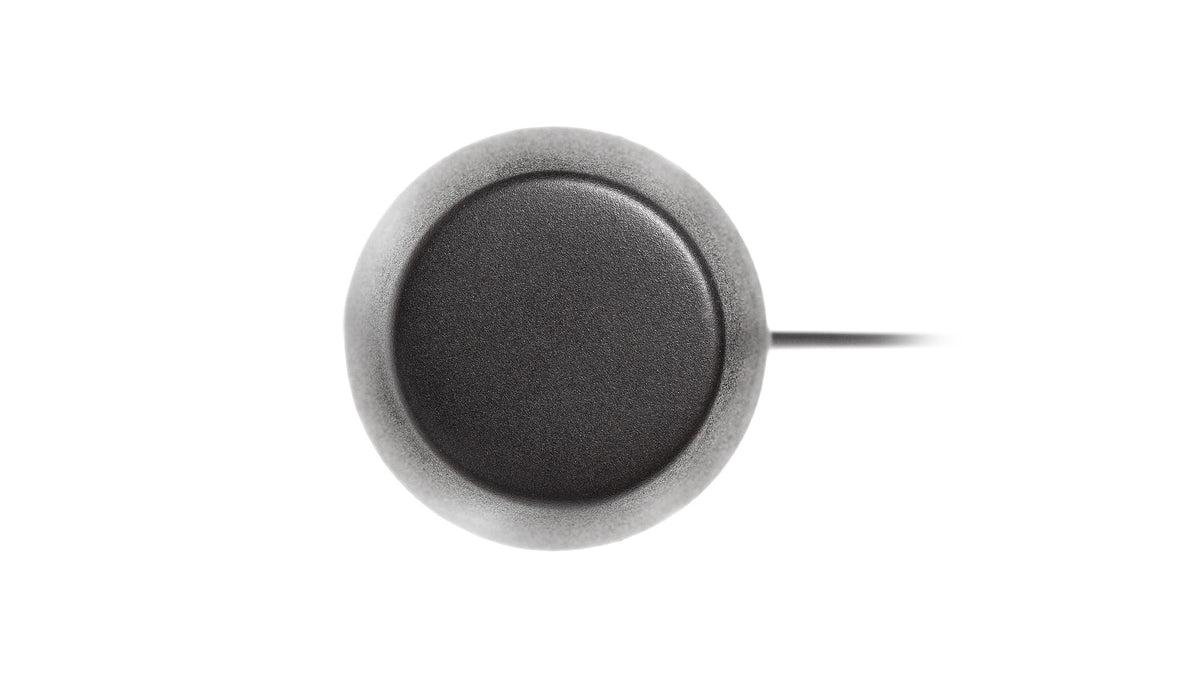

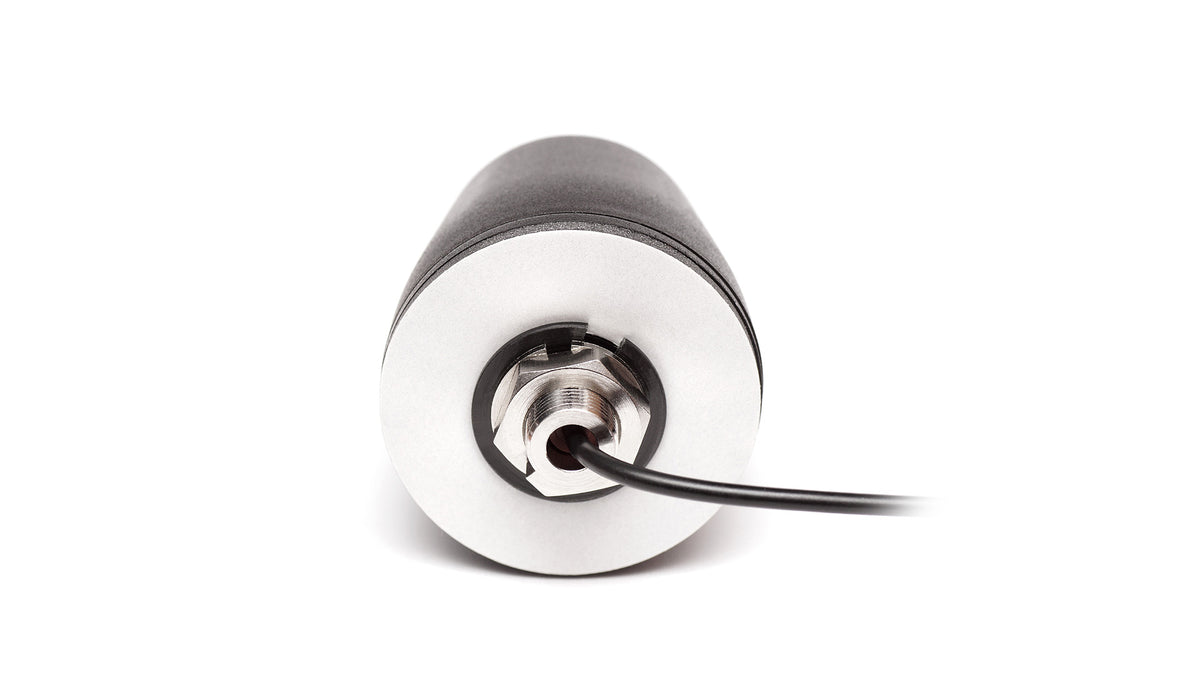

The 2J7683B-300LL100-C20GST is a Mini-Shaker 5GNR/4G/3G/2G Low-profile Screw Mount Antenna from 2J Antennas. It uses a screw mount design with dimensions Ø 50 × 50.8. Key attributes include Ultra Wide band Antenna, 617-5925 MHz Sub 6GHz Bands, Full 4GLTE backward compatibility, Ground Plane Independent, 2.9 dBi 5G NR Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
5G NR / Cellular / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Screw Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Dimensions: Ø 50 × 50.8 mm
Connection 1 — 5G NR / Cellular / LPWA
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
VSWR: ~2.3:1, ~2.1:1, ~2.0:1, ~1.6:1
Efficiency (%): ~48.1, ~45.9, ~25.2, ~22.5
Peak Gain (dBi): ~2.9, ~2.1, ~0.5, ~-1.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 2.9 dBi 5G NR Peak Gain
- High Performance
- Customizable Cable and Connector
Product family reference: 2J7683B. Configuration SKU: 2J7683B-300LL100-C20GST.
