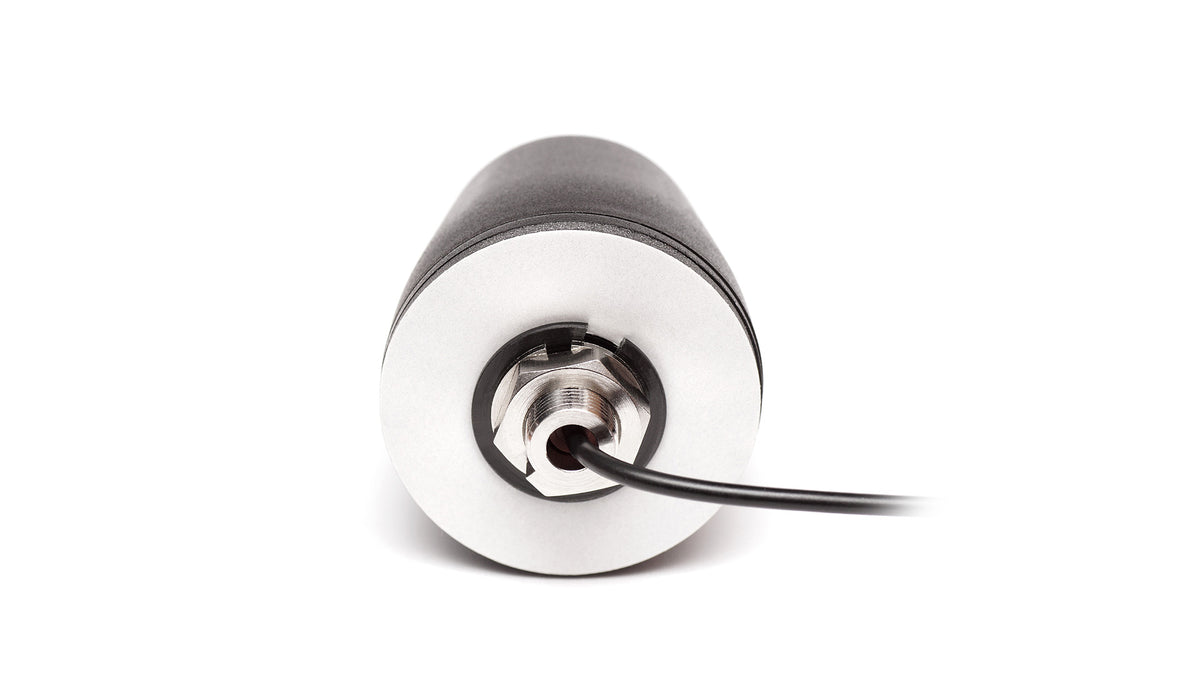

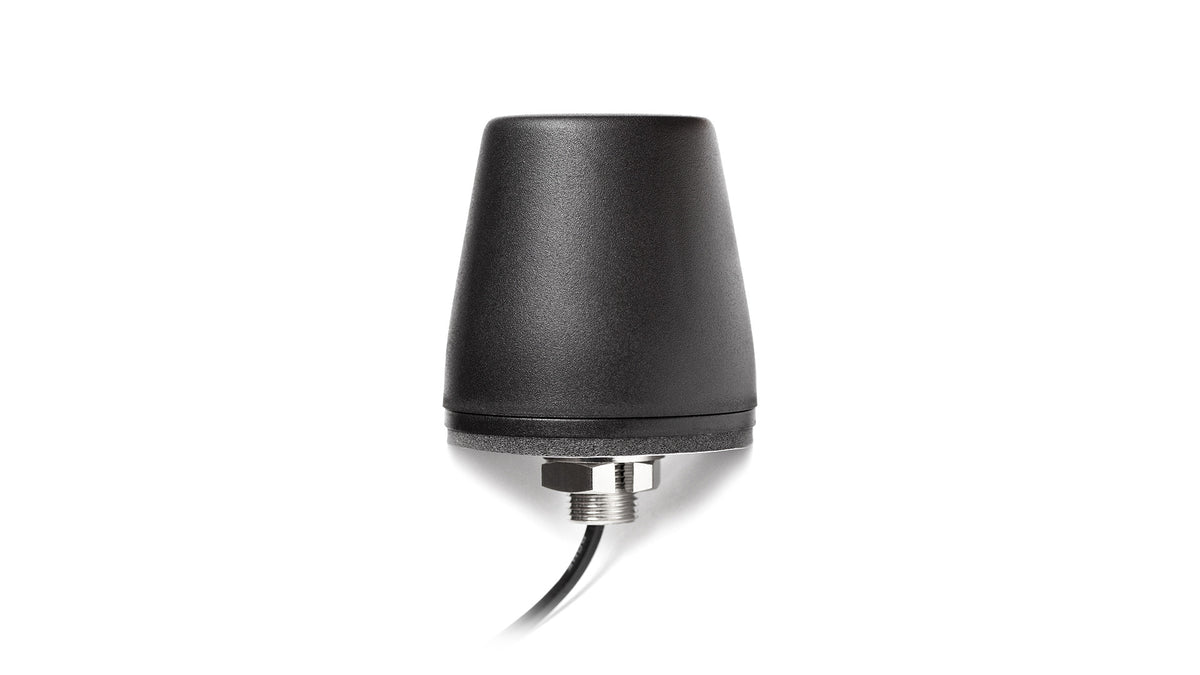

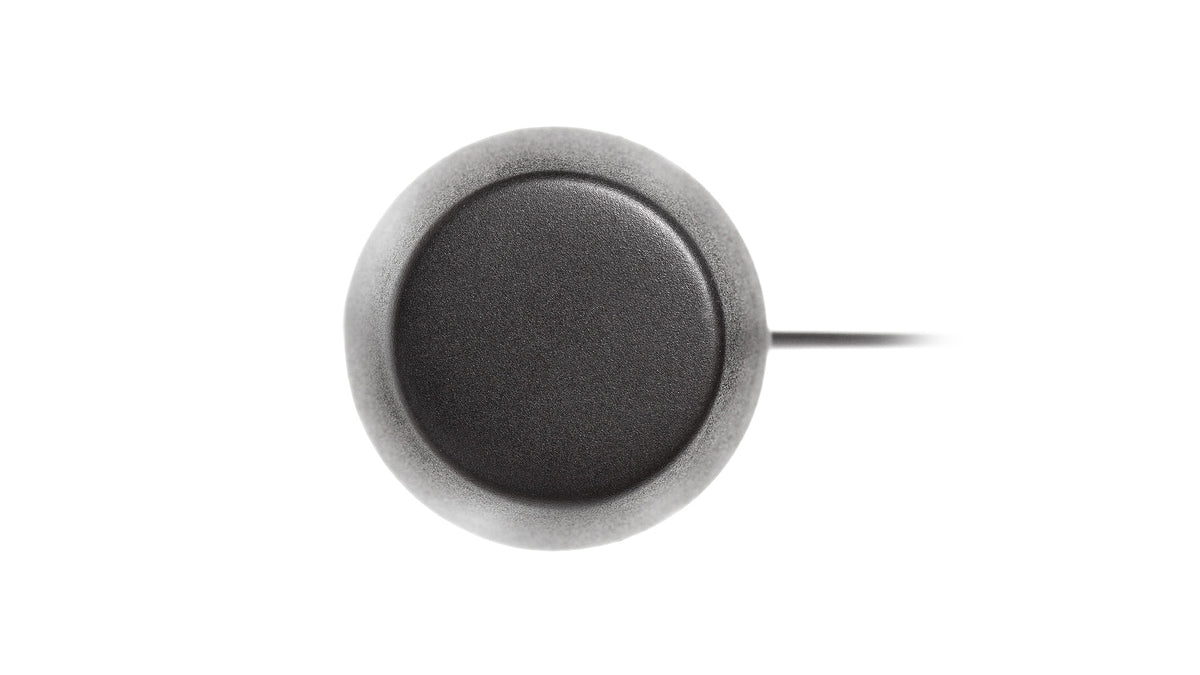

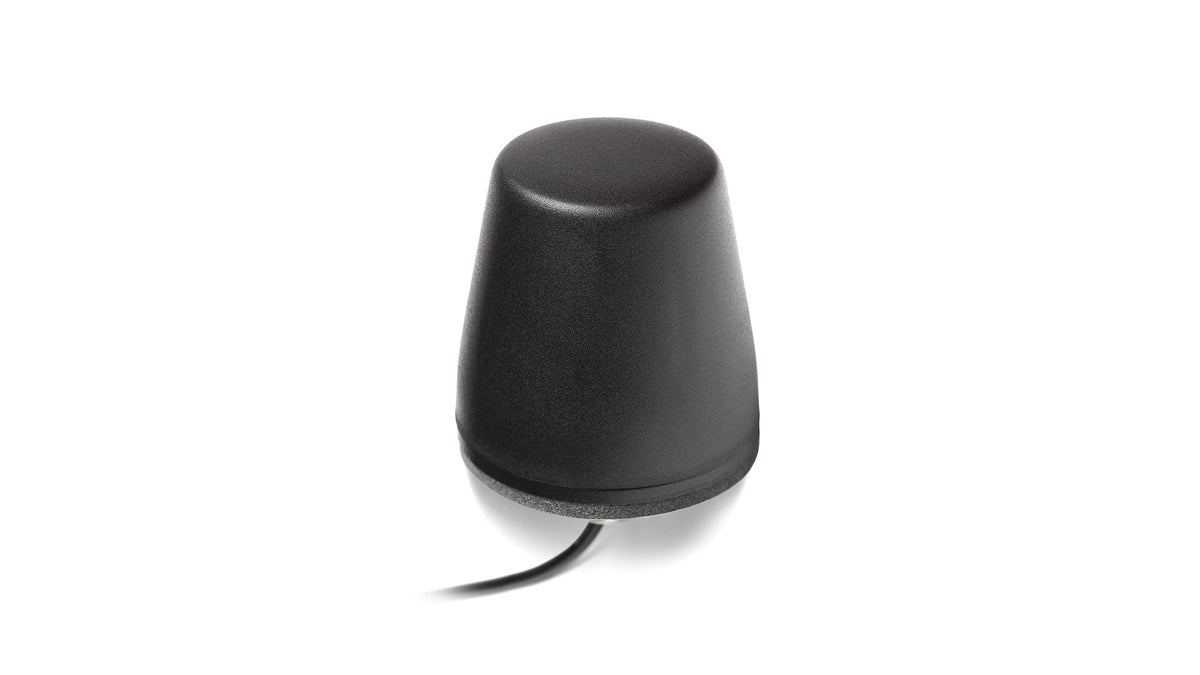

2J7624BW-300LL100W-C20GWST_CU010375 Mini-Shaker Cellular 4G LTE/ 3G/ 2G Low-profile Screw Mount Antenna

The 2J7624BW-300LL100W-C20GWST_CU010375 is a Mini-Shaker Cellular 4G LTE/ 3G/ 2G Low-profile Screw Mount Antenna from 2J Antennas. It uses a screw mount design with dimensions Ø 50 × 50.8. Key attributes include Ground Plane Independent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 3.2 dBi 4G LTE Peak Gain, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.

Connections

4G LTE / Cellular / LPWA / NB-IoT

Connector & Cable

• Connector Type: SMA-Male (white)
• Cable: 300 cm LL100
• White radome / white cable variant
• Custom/configured order code (_CU*) — media/datasheet from base catalog product

Installation / Environmental

Operating temperature: -40 °C to +85 °C. Mounting: Screw Mount. Standard colors: Black White.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Dimensions: Ø 50 × 50.8 mm

Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT

Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~2.1:1, ~1.8:1, ~2.5:1
Efficiency (%): ~56.4, ~56.1, ~37.8
Peak Gain (dBi): ~2.6, ~3.2, ~1.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Key Features

• Ground Plane Independent
• Wide band Antenna
• 698-2700 MHz 4GLTE Bands
• 3.2 dBi 4G LTE Peak Gain
• Customizable Cable and Connector

Download Datasheet PDF

Product family reference: 2J7624B. Configuration SKU: 2J7624BW-300LL100W-C20GWST_CU010375.
