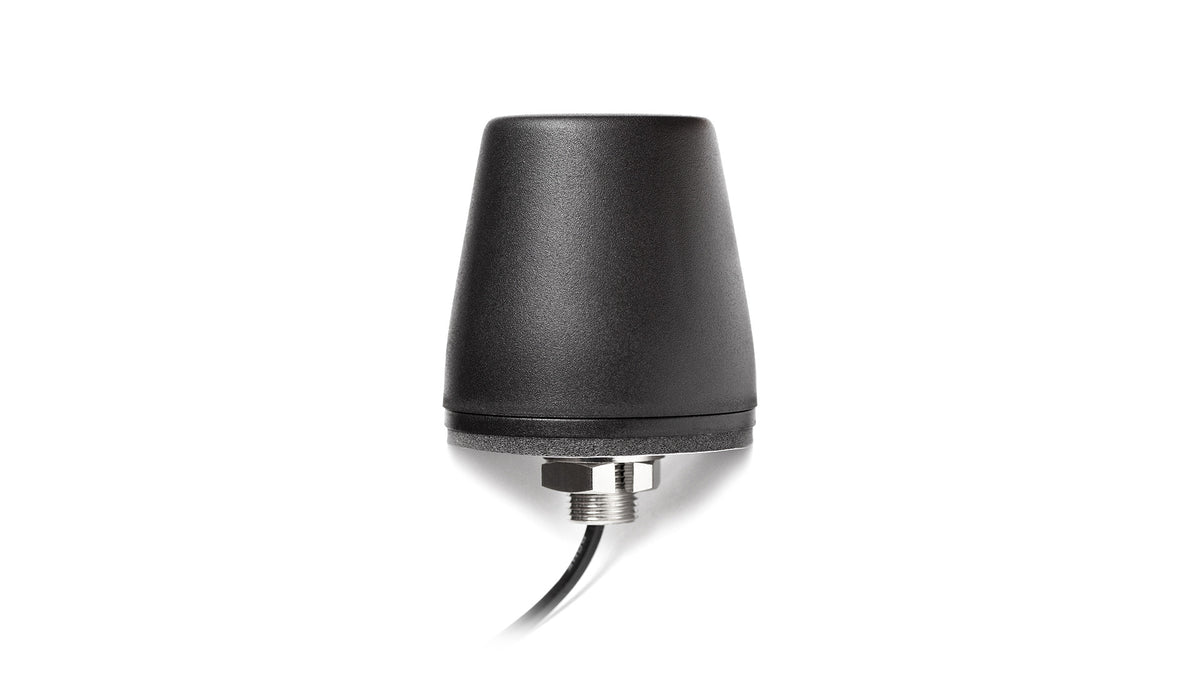

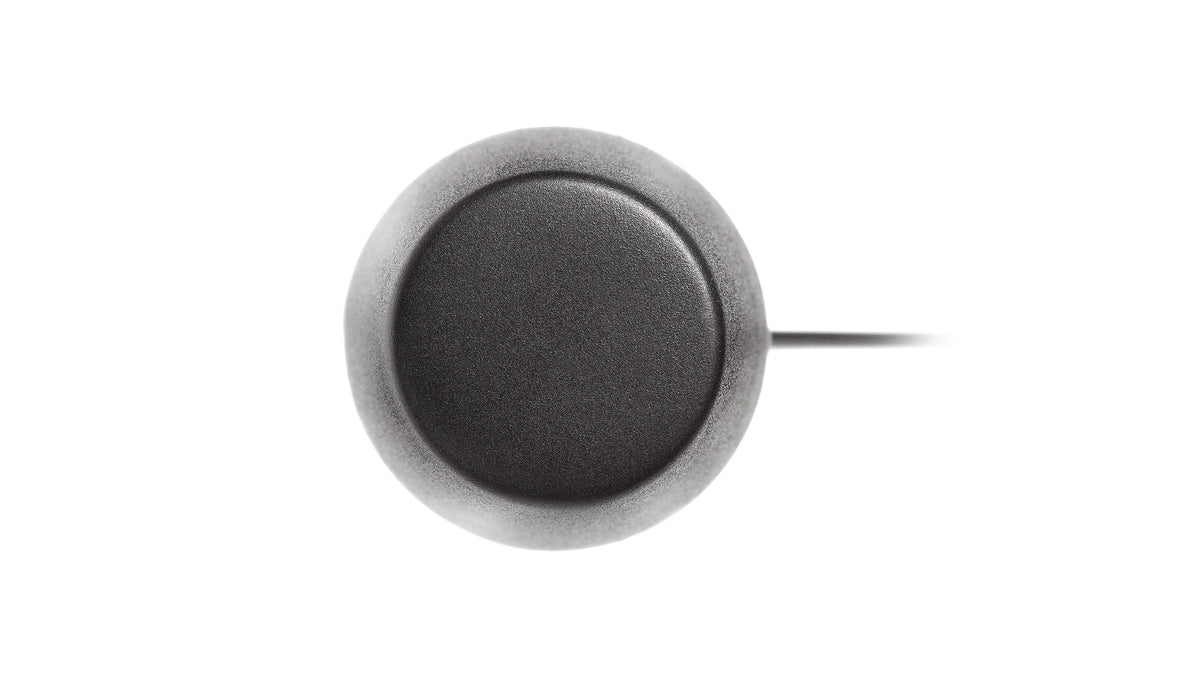

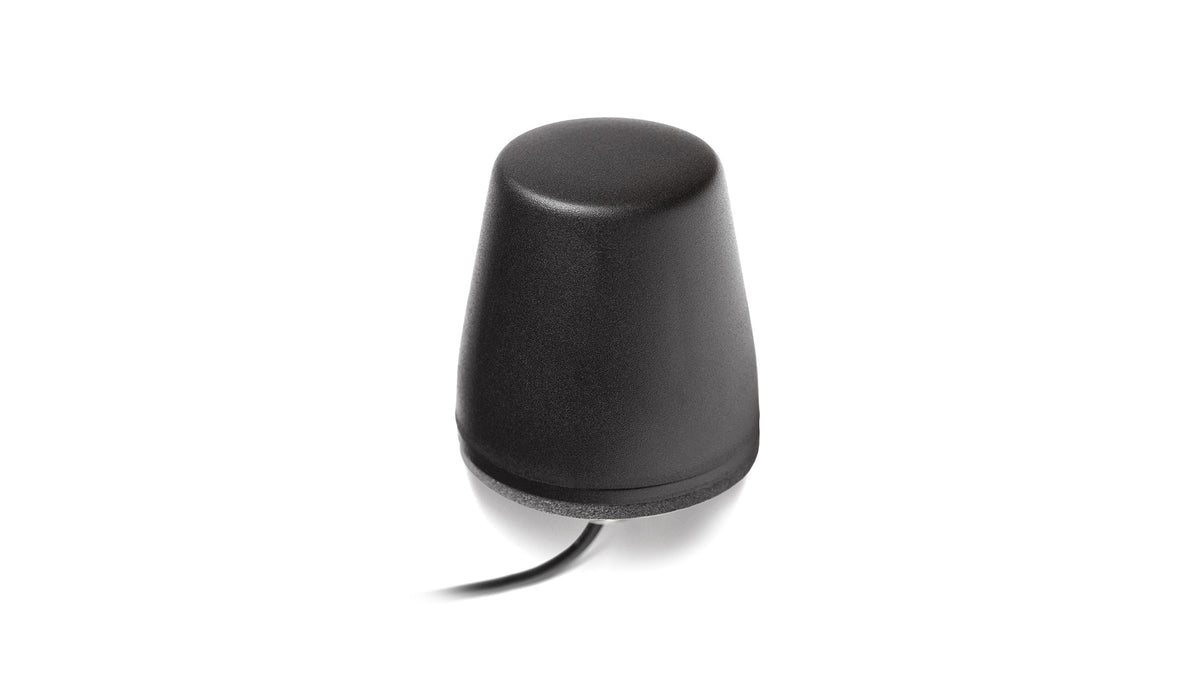

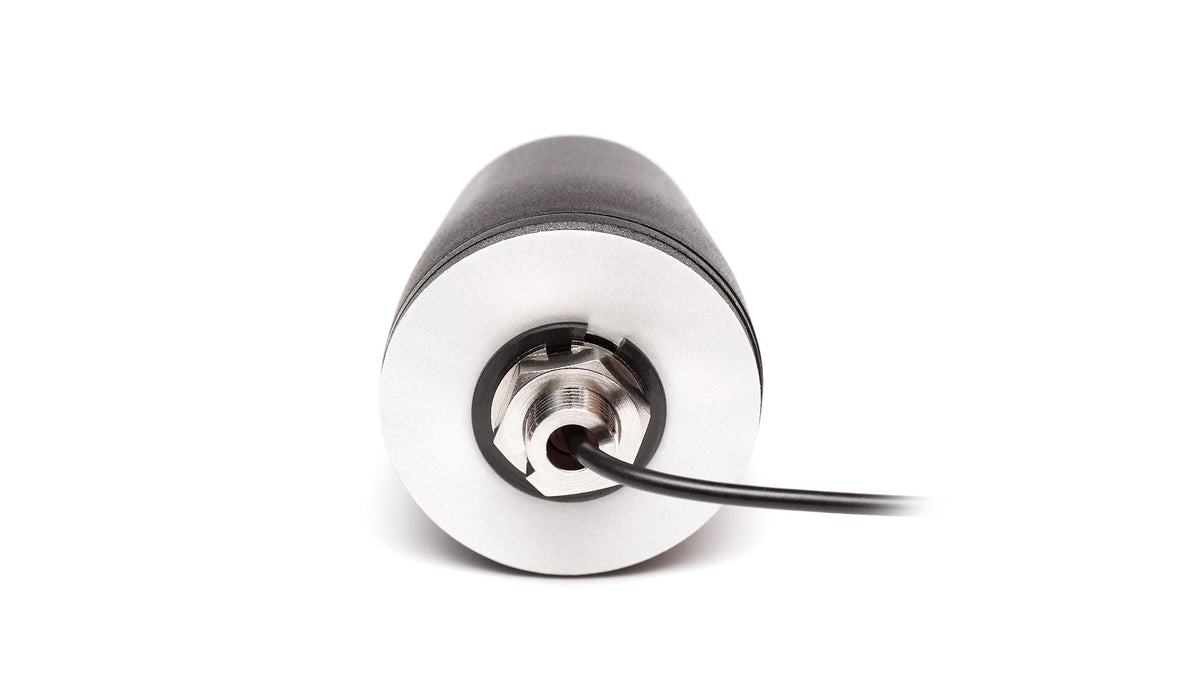

The 2J7615B-868-300LL100-C20GST is a 868 MHz ISM Mini Shaker Screw Mount Antenna from 2J Antennas. It uses a screw mount design with dimensions Ø 50 × 50.8. Key attributes include Ground Plane Independent, -0.8 dBi 868 MHz ISM Peak Gain, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Screw Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Dimensions: Ø 50 × 50.8 mm
Connection 1 — 868 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~1.9:1
Efficiency (%): ~32.7
Peak Gain (dBi): ~-0.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- -0.8 dBi 868 MHz ISM Peak Gain
- Customizable Cable and Connector
Product family reference: 2J7615B-868. Configuration SKU: 2J7615B-868-300LL100-C20GST.
