Beschreibung

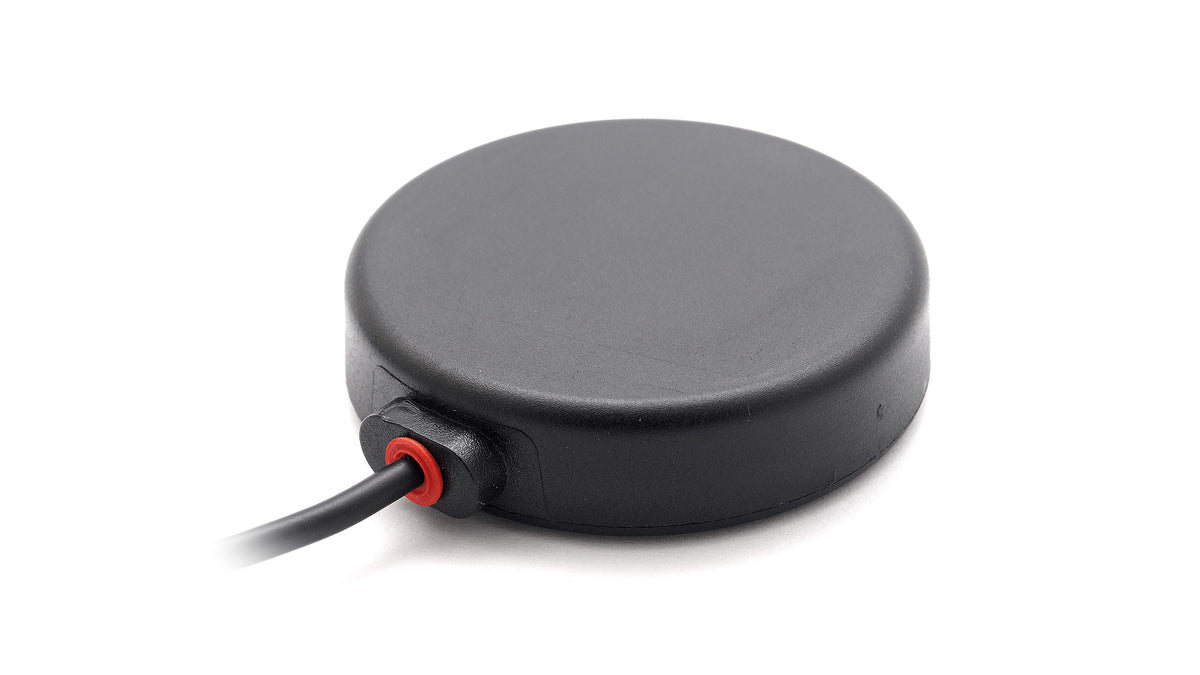

The 2J6302MPW-300LL100W-C115GWST_CU010375 is a WiFi ISM Ground Plane Dependant IP67 Customizable Antenna from 2J Antennas. It uses a adhesive mount, magnetic mount, magnetic/adhesive mount design with dimensions Ø 52.5 × 14.3. Key attributes include Ground Plane Dependent, 2.3 dBi WIFI Peak Gain, Low Profile, Adhesive Mounting sticker included, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 / 5.0 GHz WIFI / ZigBee / ISM
Connector & Cable
- Connector Type: SMA-Male (white)
- Cable: 300 cm LL100
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Dimensions: Ø 52.5 × 14.3 mm
Connection 1 — 2.4 / 5.0 GHz WIFI / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM
Frequency: 2410-2490, 4920-5925
VSWR: ~1.6:1, ~1.5:1
Efficiency (%): ~42.7, ~29.7
Peak Gain (dBi): ~1.7, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Dependent
- 2.3 dBi WIFI Peak Gain
- Low Profile
- Adhesive Mounting sticker included
- Customizable Cable and Connector
Product family reference: 2J6302MP. Configuration SKU: 2J6302MPW-300LL100W-C115GWST_CU010375.
