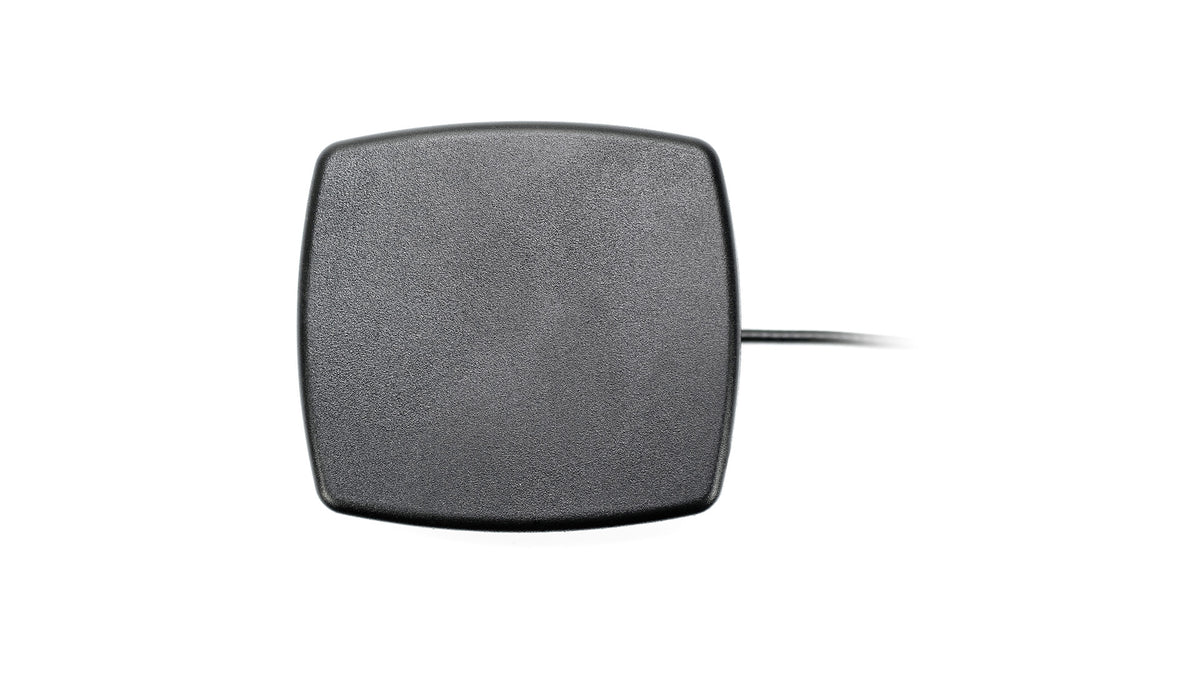

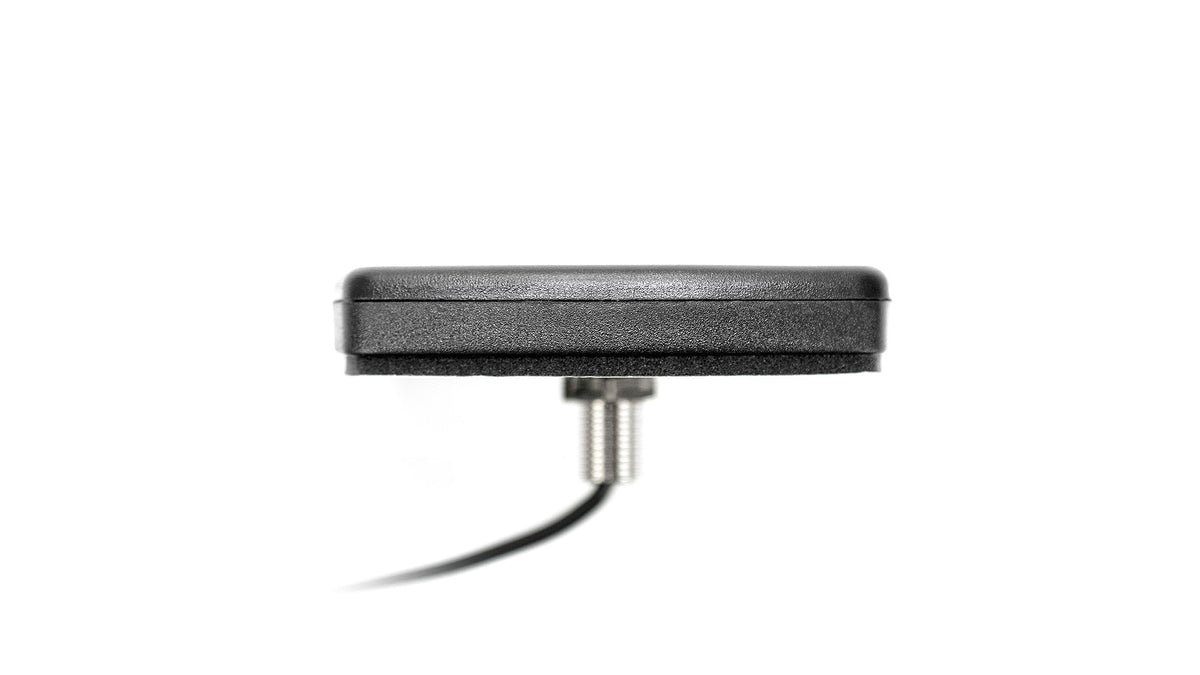

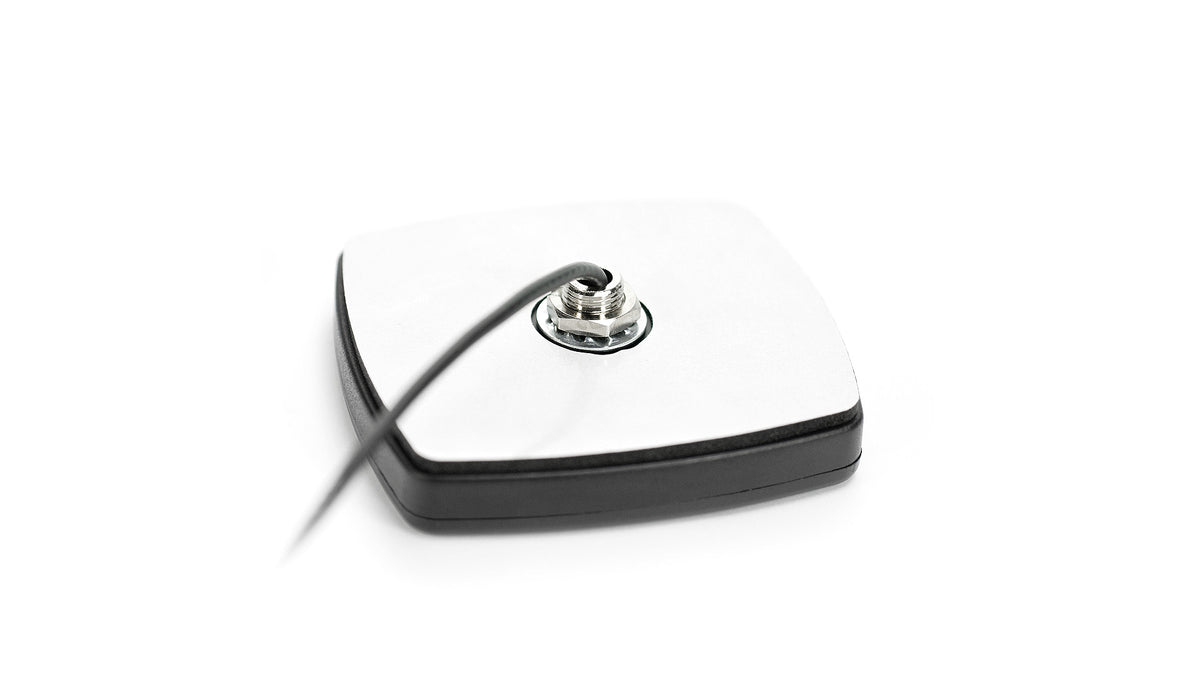

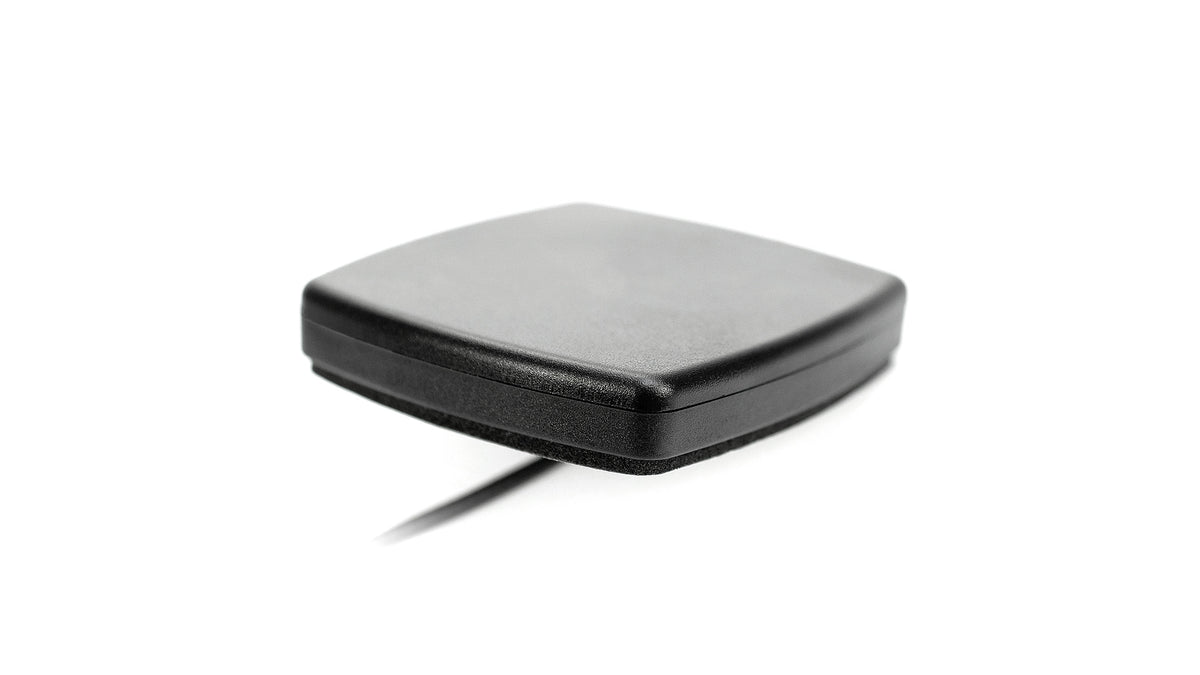

The 2J6024B-TH19-300LL100-C20GST is a Falcon Cellular 4G /LTE/3G/2G Low Profile Screw Mount Antenna from 2J Antennas. It uses a screw mount design with dimensions 80 × 74 × 14.7. Key attributes include Ground Plane Independent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 4.4 dBi 4G LTE Peak Gain, Low Profile. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
4G LTE / Cellular / LPWA / NB-IoT
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
- Bracket/option: TH19
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Screw Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Dimensions: 80 × 74 × 14.7 mm
Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT
Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~1.9:1, ~2.2:1, ~1.3:1
Efficiency (%): ~37.9, ~35.1, ~42.3
Peak Gain (dBi): ~1.8, ~3.5, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- Wide band Antenna
- 698-2700 MHz 4GLTE Bands
- 4.4 dBi 4G LTE Peak Gain
- Low Profile
- Customizable Cable and Connector
Product family reference: 2J6024B. Configuration SKU: 2J6024B-TH19-300LL100-C20GST.
