Beschreibung

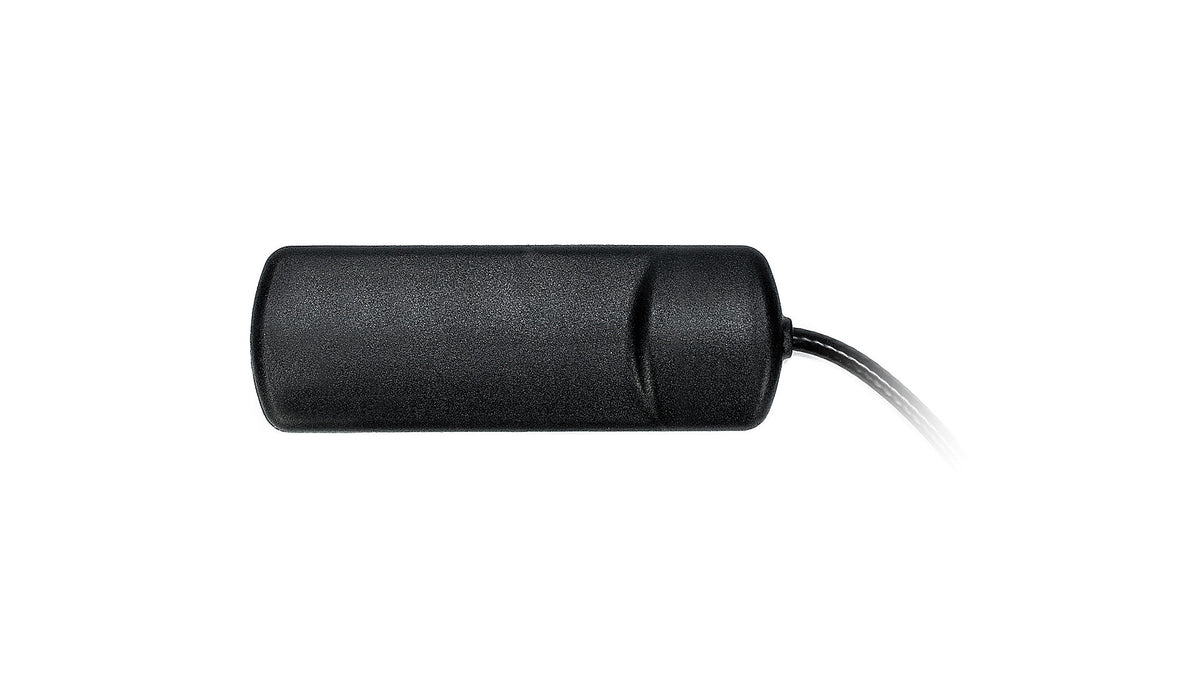

The 2J5515P-300LL100-C20GST is a 868/915 MHz ISM Adhesive Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 71 × 25 × 7. Key attributes include Dual Band 868/915 MHz ISM Antenna, Ground Plane Independent, 3.3 dBi 868/915 MHz ISM Peak Gain, Low Profile, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 71 × 25 × 7 mm
Connection 1 — 868 & 915 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928
VSWR: ~2.2:1, ~1.8:1
Efficiency (%): ~31.5, ~31.9
Peak Gain (dBi): ~3.3, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Dual Band 868/915 MHz ISM Antenna
- Ground Plane Independent
- 3.3 dBi 868/915 MHz ISM Peak Gain
- Low Profile
- Customizable Cable and Connector
Product family reference: 2J5515P. Configuration SKU: 2J5515P-300LL100-C20GST.
2J5515P-300LL100-C20GST 868/915 MHz ISM Adhesive Antenna
