Beschreibung

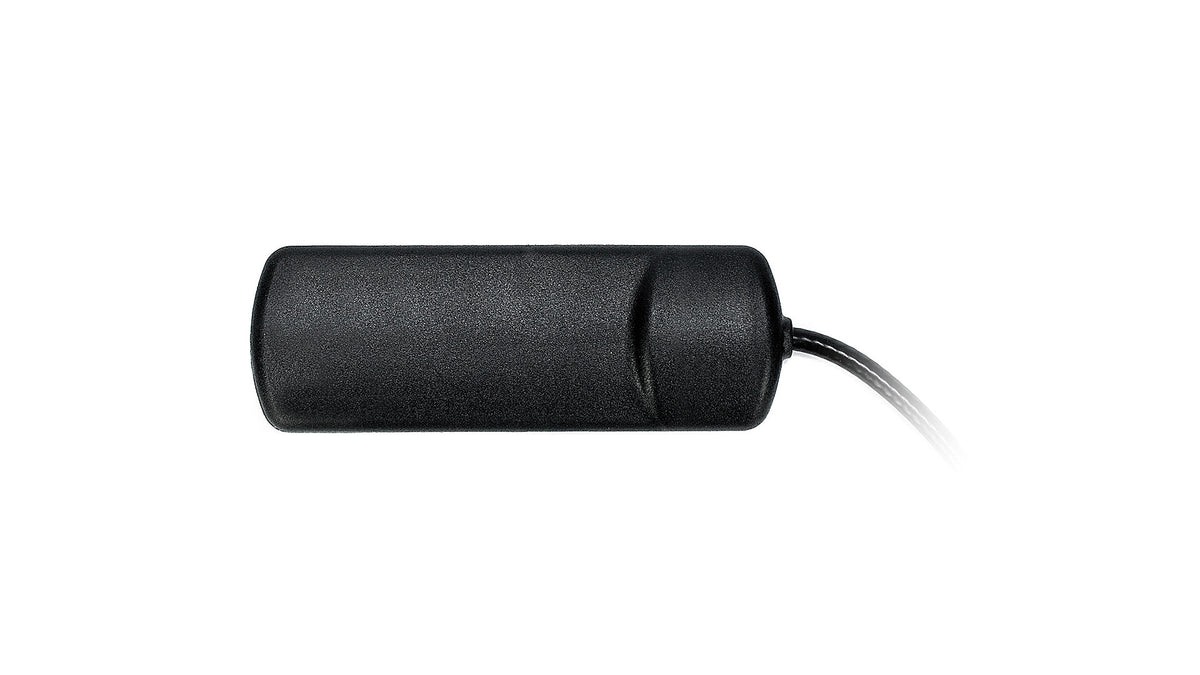

The 2J5502PW-300LL100W-C115GWST_CU010375 is a WIFI 6E / WIFI 7 ISM Customizable Adhesive Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 71 × 25 × 7. Key attributes include WIFI 6E / WIFI 7 Antenna, Ground Plane Independent, 3.3 dBi WIFI Peak Gain, Low Profile, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Connector & Cable
- Connector Type: SMA-Male (white)
- Cable: 300 cm LL100
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 71 × 25 × 7 mm
Connection 1 — 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.6:1, ~1.9:1, ~2.6:1
Efficiency (%): ~54.0, ~46.0, ~26.3
Peak Gain (dBi): ~3.3, ~2.0, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- WIFI 6E / WIFI 7 Antenna
- Ground Plane Independent
- 3.3 dBi WIFI Peak Gain
- Low Profile
- Customizable Cable and Connector
Product family reference: 2J5502P. Configuration SKU: 2J5502PW-300LL100W-C115GWST_CU010375.
