Beschreibung

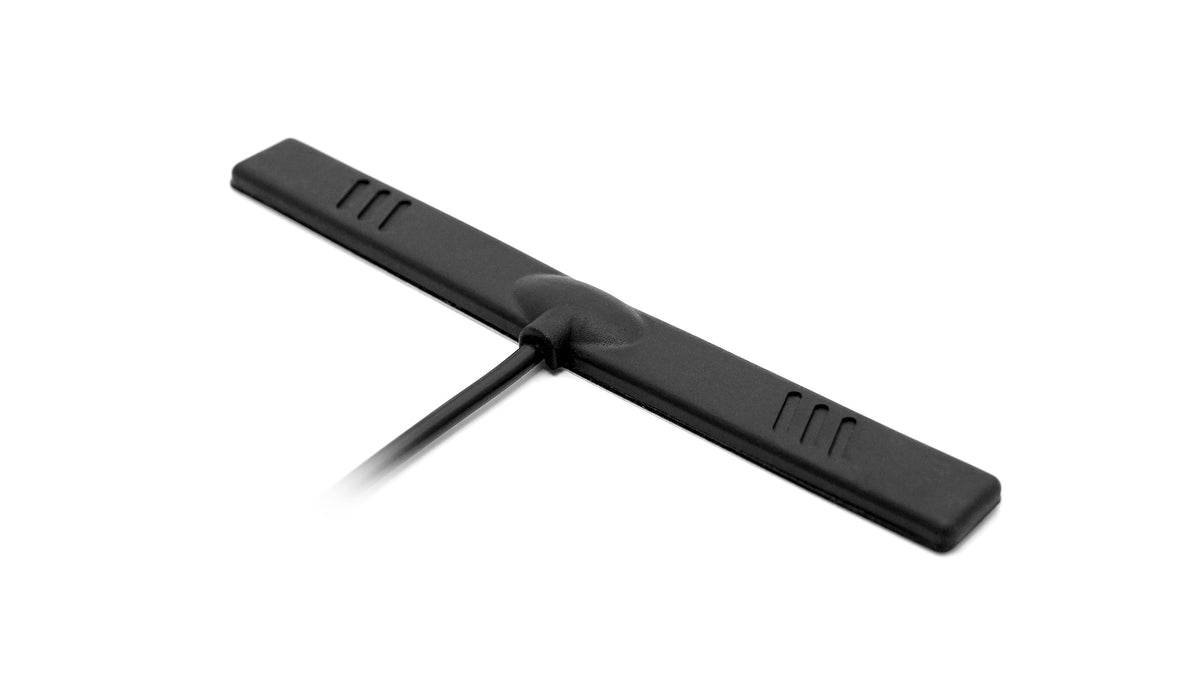

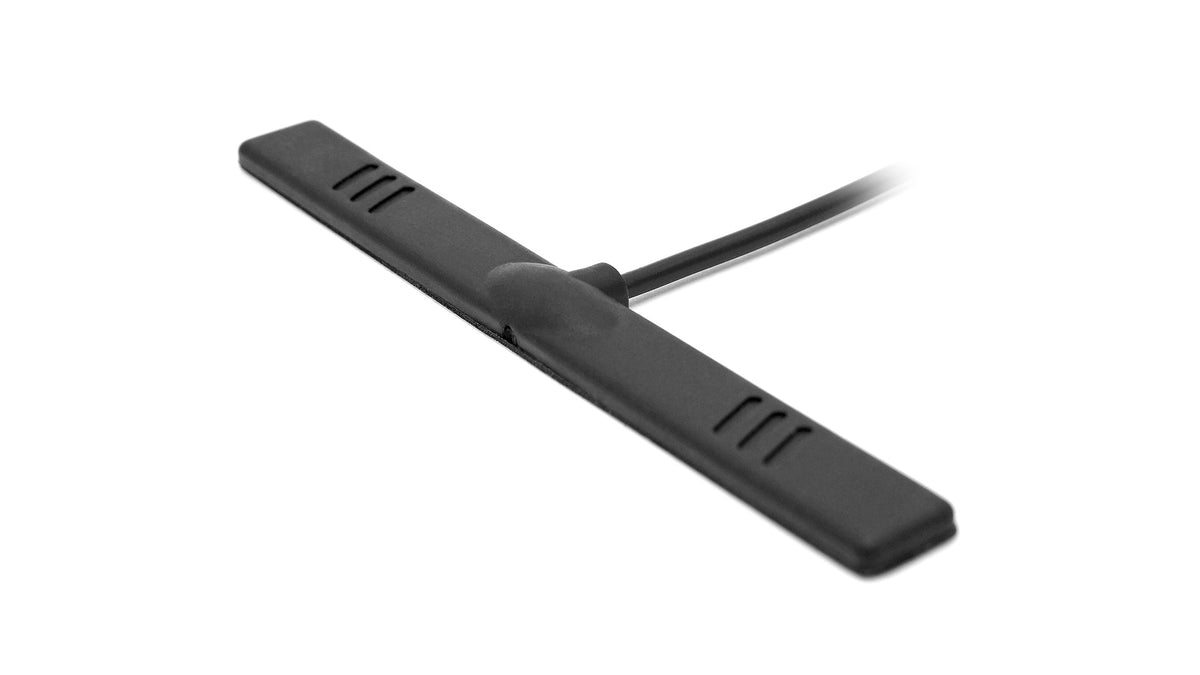

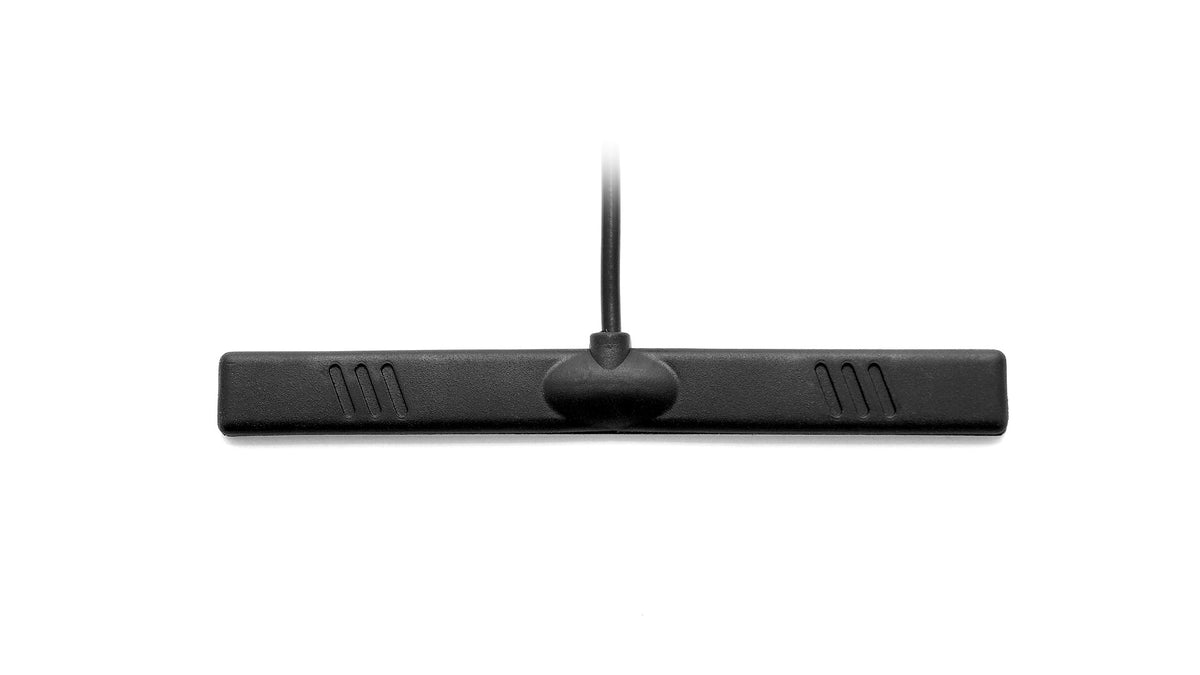

The 2J5283PW-300LL100W-C20GWST_CU010375 is a T-Bar 5GNR/4G/3G/2G Peel-and-Stick Ground Plane Independent Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 117.4 × 12.5 × 6.5. Key attributes include Ultra Wide band Antenna, 617-5925 MHz Sub 6GHz Bands, Full 4GLTE backward compatibility, Ground Plane Independent, 5.8 dBi 5G NR Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
5G NR / Cellular / LPWA
Connector & Cable
- Connector Type: SMA-Male (white)
- Cable: 300 cm LL100
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 117.4 × 12.5 × 6.5 mm
Connection 1 — 5G NR / Cellular / LPWA
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
VSWR: ~2.9:1, ~2.0:1, ~1.7:1, ~1.9:1
Efficiency (%): ~58.6, ~58.5, ~40.3, ~30.0
Peak Gain (dBi): ~2.0, ~2.4, ~4.6, ~5.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 5.8 dBi 5G NR Peak Gain
- Low Profile
- Flexible Housing
- Customizable Cable and Connector
Product family reference: 2J5283P. Configuration SKU: 2J5283PW-300LL100W-C20GWST_CU010375.
