Beschreibung

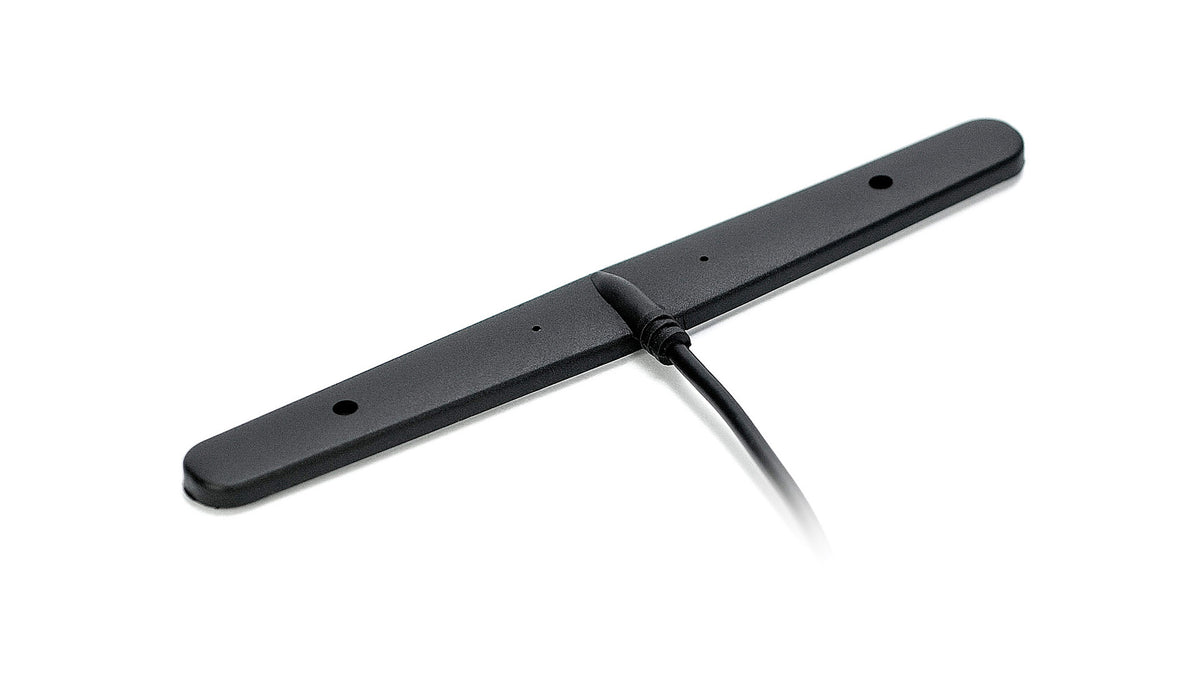

The 2J5115P-868-300LL100-C20GST is a 868 MHz ISM Flexible Housing High Performance Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 122 × 14 × 6. Key attributes include Ground Plane Independent, 2.5 dBi 868 MHz ISM Peak Gain, High Performance, Low Profile, Flexible Housing. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 122 × 14 × 6 mm
Connection 1 — 868 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~1.2:1
Efficiency (%): ~56.9
Peak Gain (dBi): ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- 2.5 dBi 868 MHz ISM Peak Gain
- High Performance
- Low Profile
- Flexible Housing
- Customizable Cable and Connector
Product family reference: 2J5115P-868. Configuration SKU: 2J5115P-868-300LL100-C20GST.
