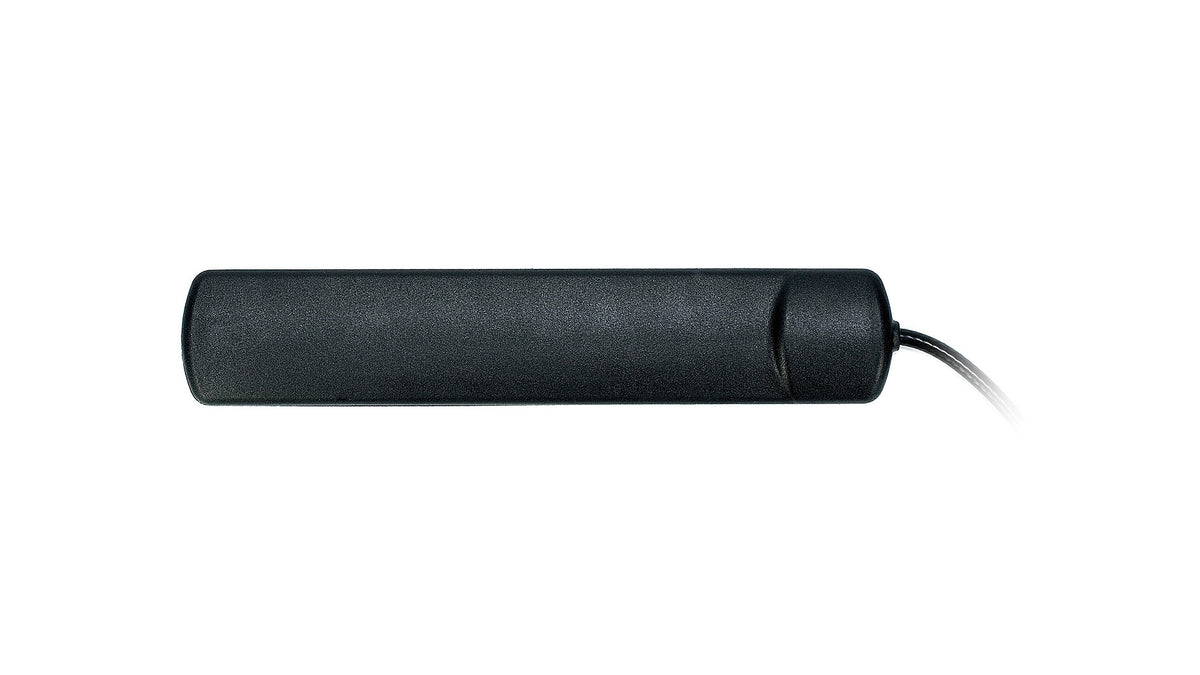

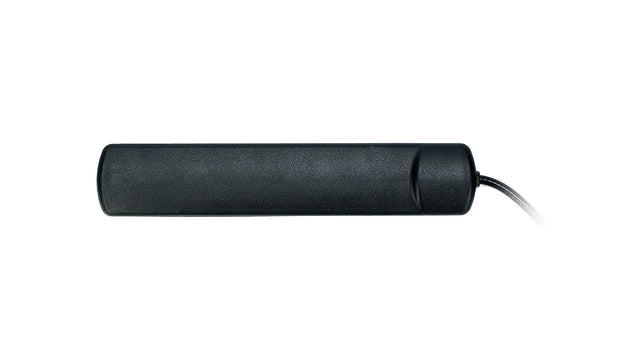

2J5083PW-300LL100W-C20GWST_CU010375 I-Bar 5GNR/4G/3G/2G Peel-and-Stick Ground Plane Independent Antenna

The 2J5083PW-300LL100W-C20GWST_CU010375 is a I-Bar 5GNR/4G/3G/2G Peel-and-Stick Ground Plane Independent Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 116 × 22 × 6.7. Key attributes include Ultra Wide band Antenna, 617-5925 MHz Sub 6GHz Bands, Full 4GLTE backward compatibility, Ground Plane Independent, 3.6 dBi 5G NR Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.

Connections

5G NR / Cellular / LPWA

Connector & Cable

• Connector Type: SMA-Male (white)
• Cable: 300 cm LL100
• White radome / white cable variant
• Custom/configured order code (_CU*) — media/datasheet from base catalog product

Installation / Environmental

Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 116 × 22 × 6.7 mm

Connection 1 — 5G NR / Cellular / LPWA

Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
VSWR: ~1.5:1, ~1.7:1, ~1.8:1, ~1.5:1
Efficiency (%): ~60.1, ~45.8, ~24.5, ~24.5
Peak Gain (dBi): ~3.2, ~3.6, ~1.0, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35

Key Features

• Ultra Wide band Antenna
• 617-5925 MHz Sub 6GHz Bands
• Full 4GLTE backward compatibility
• Ground Plane Independent
• 3.6 dBi 5G NR Peak Gain
• Low Profile
• Customizable Cable and Connector

Download Datasheet PDF

Product family reference: 2J5083P. Configuration SKU: 2J5083PW-300LL100W-C20GWST_CU010375.
