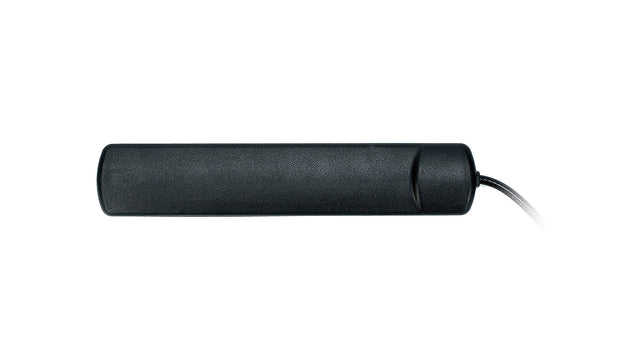

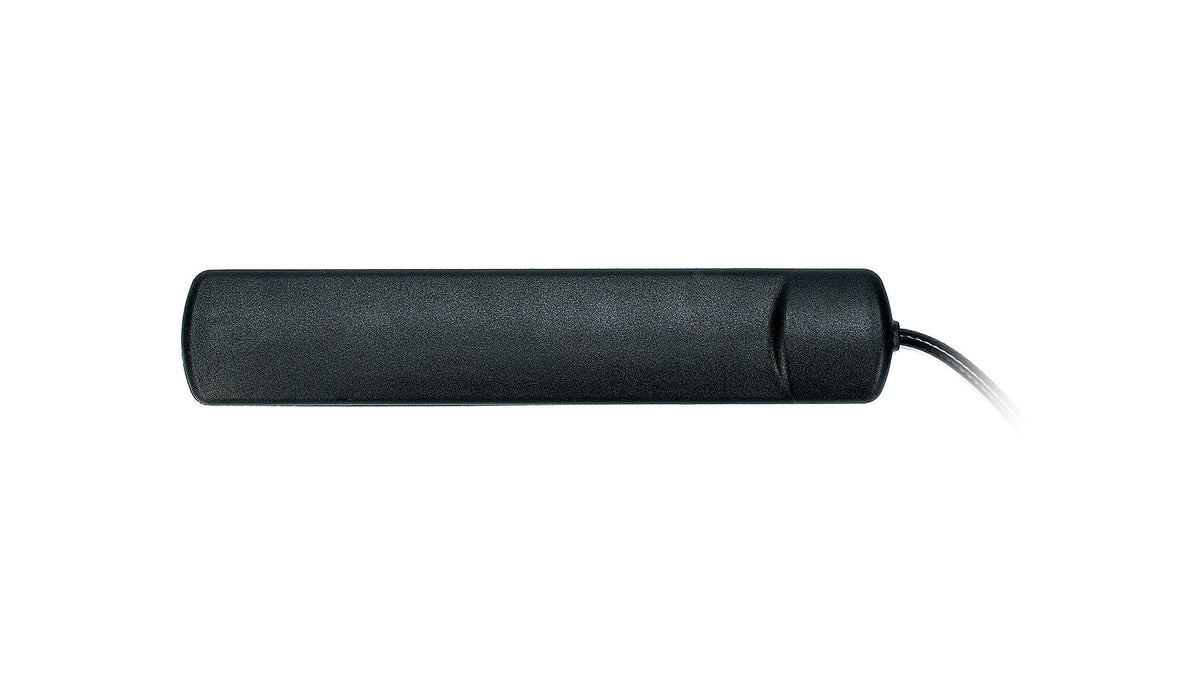

The 2J5024PW-300LL100W-C20GWST_CU010375 is a 4G LTE/3G/2G Ground Plane Independent Customizable Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 116 × 22 × 6.7. Key attributes include Ground Plane Independent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 4.0 dBi 4G LTE Peak Gain, Low Profile. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
4G LTE / Cellular / LPWA / NB-IoT
Connector & Cable
- Connector Type: SMA-Male (white)
- Cable: 300 cm LL100
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 116 × 22 × 6.7 mm
Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT
Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~1.3:1, ~1.4:1, ~1.4:1
Efficiency (%): ~65, ~41, ~34
Peak Gain (dBi): ~3.0, ~2.2, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- Wide band Antenna
- 698-2700 MHz 4GLTE Bands
- 4.0 dBi 4G LTE Peak Gain
- Low Profile
- Customizable Cable and Connector
Product family reference: 2J5024P. Configuration SKU: 2J5024PW-300LL100W-C20GWST_CU010375.
