Beschreibung

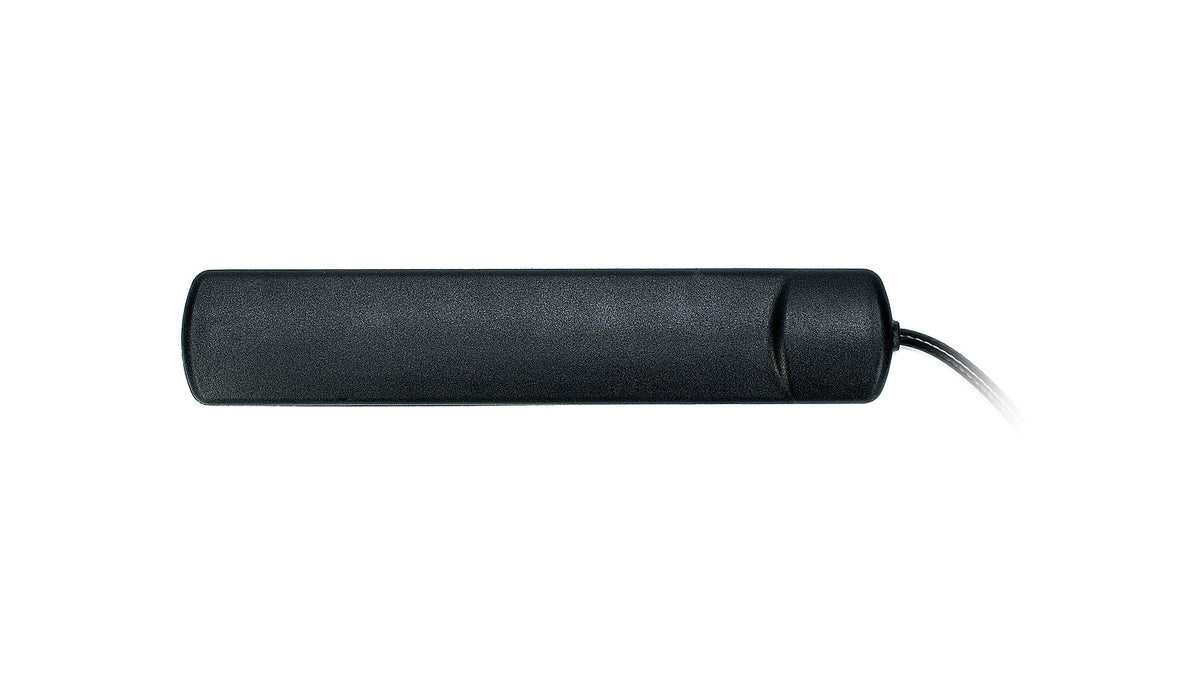

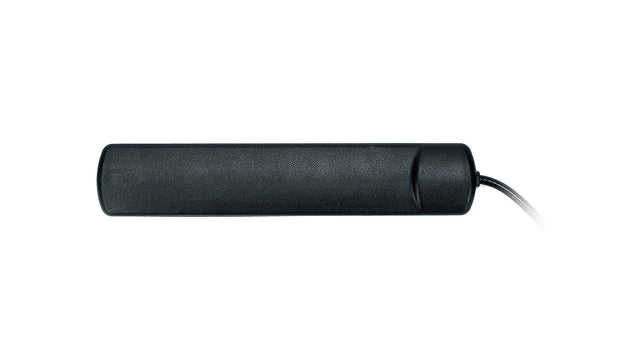

The 2J5004P-250LL100-C20N is a Cellular Ground Plane Independent Customizable Antenna from 2J Antennas. It uses a adhesive mount design with dimensions 126.5 × 22 × 6.7. Key attributes include Ground Plane Independent, 4.6 dBi 3G 2G Peak Gain, Low Profile, Customizable Cable and Connector, Applications Cellular & Wireless Industrial & Automation. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
3G / 2G / Cellular
Connector & Cable
- Connector Type: SMA-Male (straight)
- Cable: 250 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Dimensions: 126.5 × 22 × 6.7 mm
Connection 1 — 3G / 2G / Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170
VSWR: ~1.5:1, ~1.4:1
Efficiency (%): ~52, ~43
Peak Gain (dBi): ~3.5, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- 4.6 dBi 3G 2G Peak Gain
- Low Profile
- Customizable Cable and Connector
- Applications Cellular & Wireless Industrial & Automation
Product family reference: 2J5004PL. Configuration SKU: 2J5004P-250LL100-C20N.
2J5004P-250LL100-C20N Cellular Ground Plane Independent Antenna
