Beschreibung

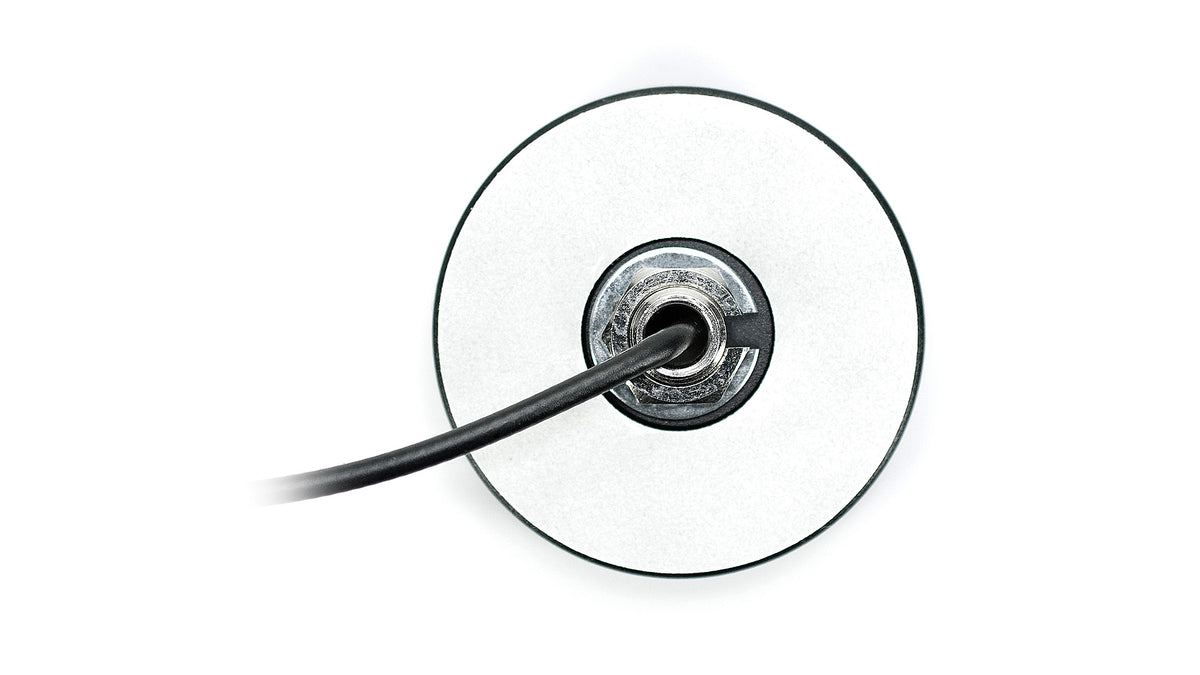

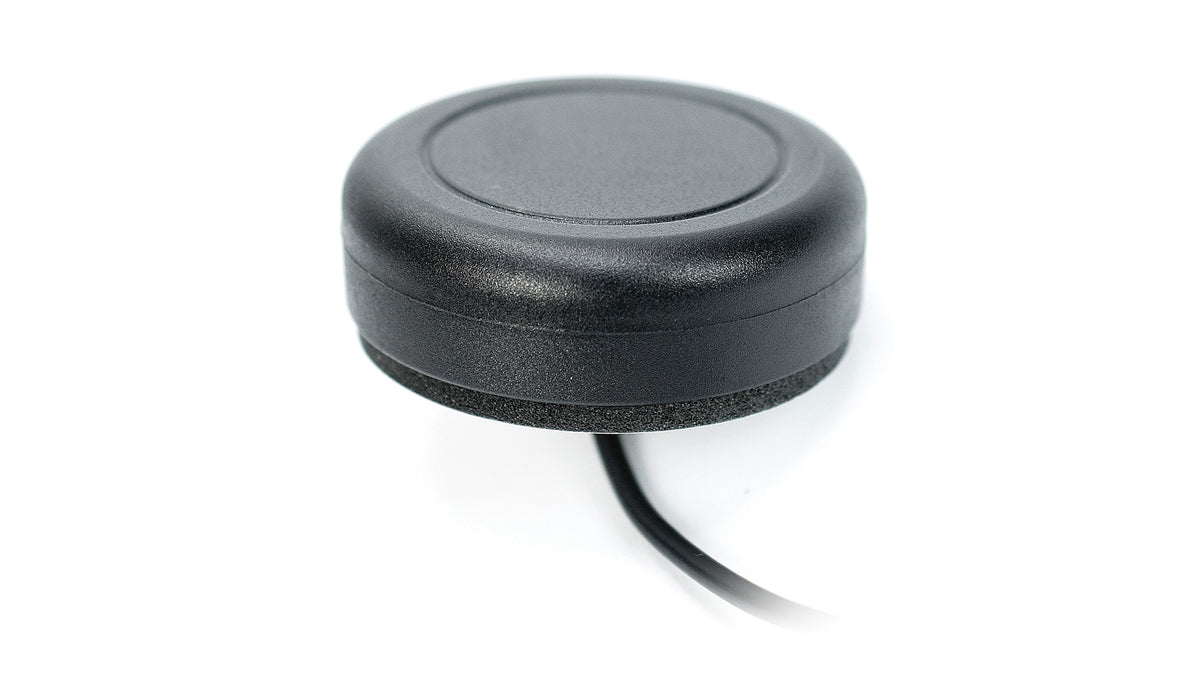

The 2J4715B-868-TH19-300LL100-C20GST is a 868 MHz ISM Low Profile Screw Mount Antenna from 2J Antennas. It uses a screw mount design with dimensions Ø 52 × 17.5. Key attributes include Ground Plane Independent, 2.6 dBi 868 MHz ISM Peak Gain, Customizable Cable and Connector, Low Profile. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
- Bracket/option: TH19
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Screw Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Dimensions: Ø 52 × 17.5 mm
Connection 1 — 868 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~1.2:1
Efficiency (%): ~33.4
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- 2.6 dBi 868 MHz ISM Peak Gain
- Customizable Cable and Connector
- Low Profile
Product family reference: 2J4715B-868. Configuration SKU: 2J4715B-868-TH19-300LL100-C20GST.
