Beschreibung

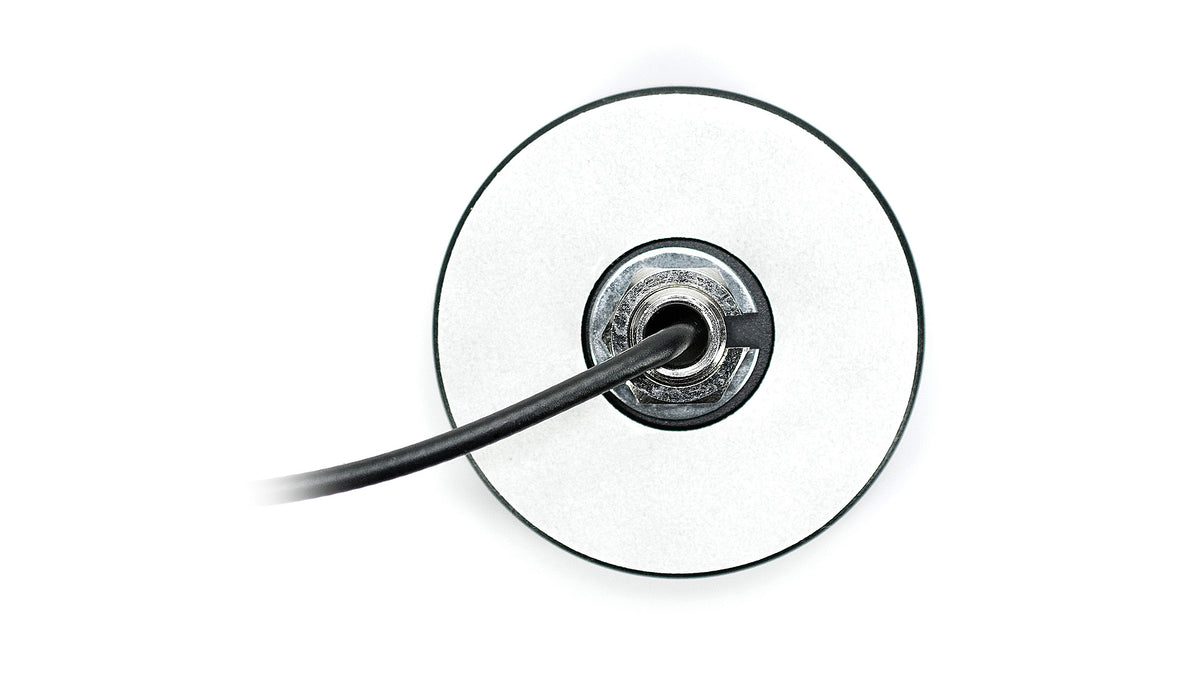

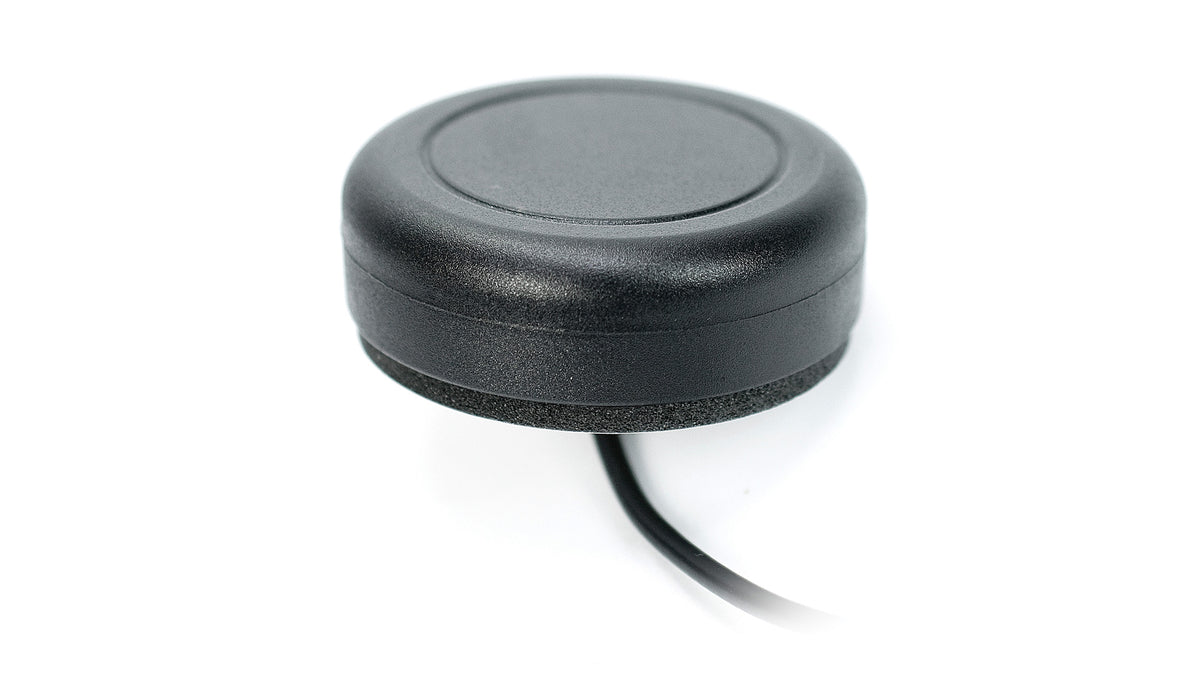

The 2J4702B-TH19-300LL100-C115GST is a Beetle 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Low Profile IP69K Screw Mount Antenna from 2J Antennas. It uses a screw mount design with dimensions 52 × 17.5. Key attributes include WIFI 6E / WIFI 7 Antenna, Ground Plane Dependent, 3.5 dBi WIFI Peak Gain, Low Profile, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
- Bracket/option: TH19
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Screw Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Dimensions: 52 × 17.5 mm
Connection 1 — 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125
VSWR: ~2.5:1, ~1.5:1, ~2.1:1
Efficiency (%): ~35.8, ~28.4, ~25.2
Peak Gain (dBi): ~3.5, ~2.9, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- WIFI 6E / WIFI 7 Antenna
- Ground Plane Dependent
- 3.5 dBi WIFI Peak Gain
- Low Profile
- Customizable Cable and Connector
Product family reference: 2J4702B. Configuration SKU: 2J4702B-TH19-300LL100-C115GST.
