Beschreibung

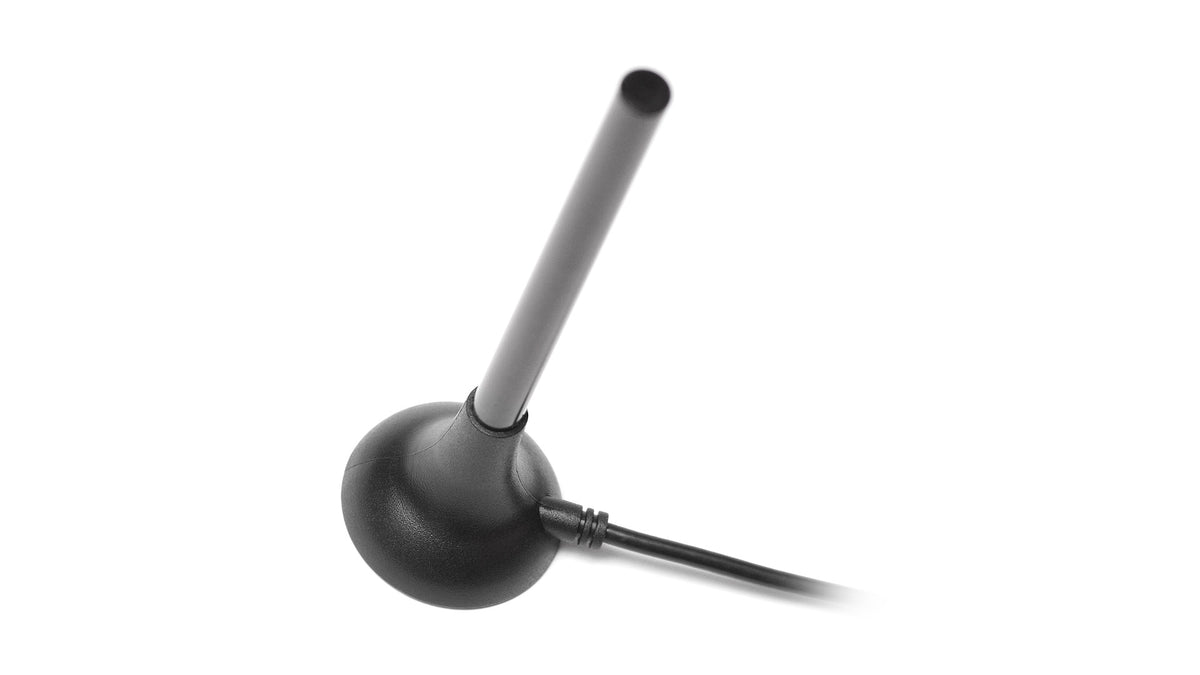

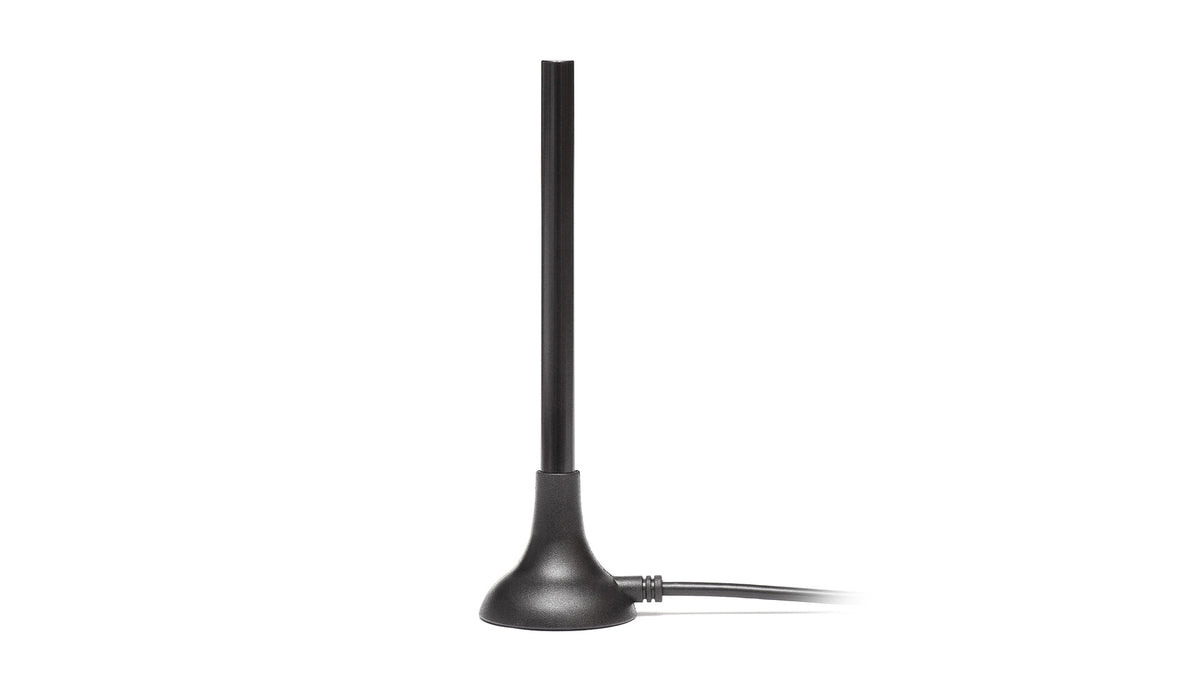

The 2J3683M-300LL100-C20GST is a 5GNR/4G/3G/2G Low-Profile Sleek Design Magnetic Mount Whip Antenna from 2J Antennas. It uses a magnetic mount design with dimensions Ø 31 × 109. Key attributes include Ultra Wide band Antenna, 617-5925 MHz Sub 6GHz Bands, Full 4GLTE backward compatibility, Ground Plane Dependent, 2.9 dBi 5G NR Peak Gain. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
5G NR / Cellular / LPWA
Connector & Cable
- Connector Type: SMA-Male
- Cable: 300 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Magnetic Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Dimensions: Ø 31 × 109 mm
Connection 1 — 5G NR / Cellular / LPWA
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
VSWR: ~1.8:1, ~1.9:1, ~2.6:1, ~2.8:1
Efficiency (%): ~60.5, ~54.6, ~27.7, ~23.1
Peak Gain (dBi): ~1.0, ~2.9, ~2.5, ~0.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35
Key Features
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Dependent
- 2.9 dBi 5G NR Peak Gain
- High Performance
- Small Form Factor
- Customizable Cable and Connector
Product family reference: 2J3683M. Configuration SKU: 2J3683M-300LL100-C20GST.
