Beschreibung

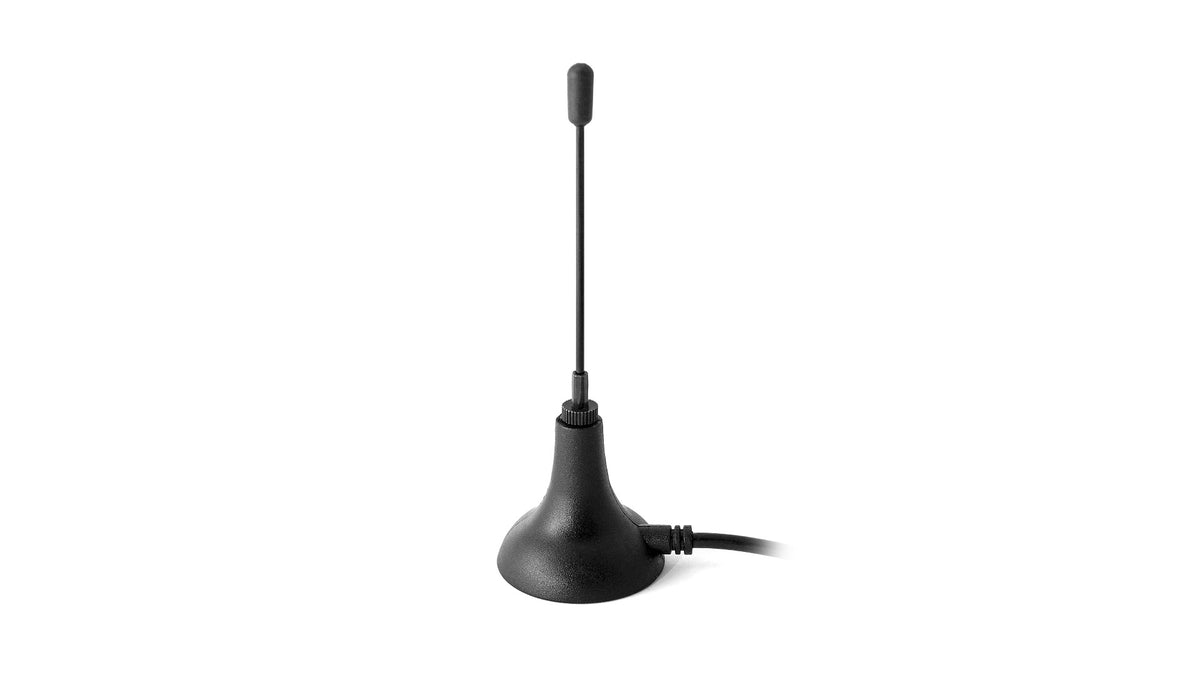

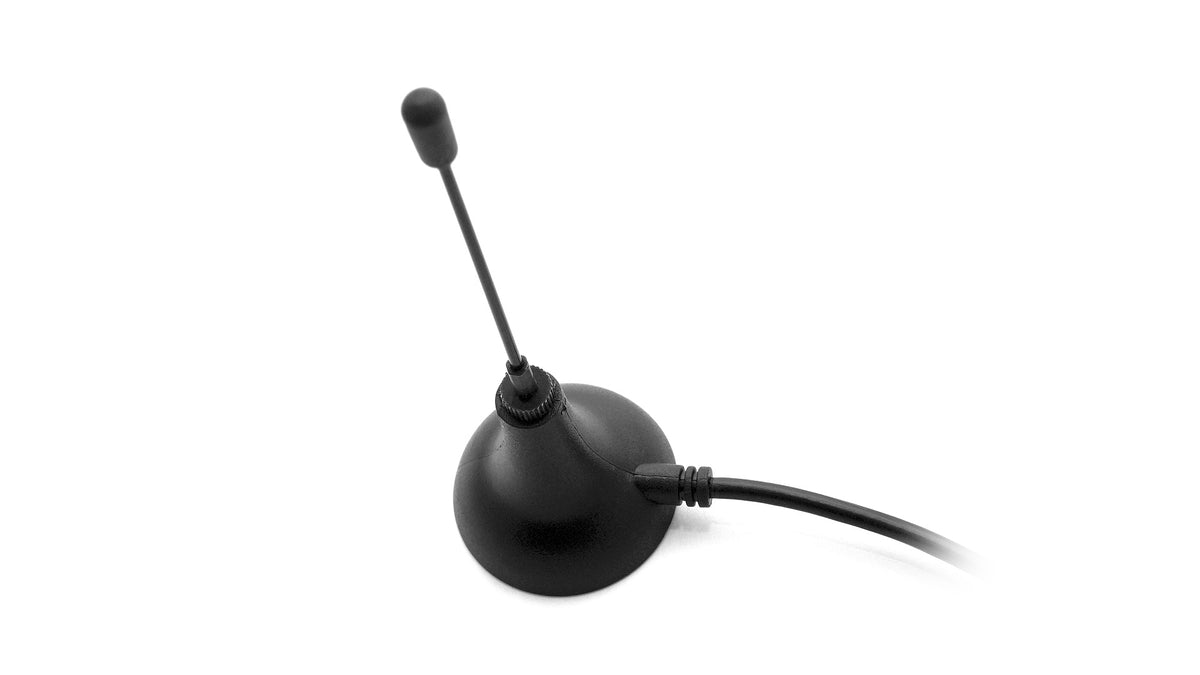

The 2J3204M-250LL100-C20N is a 4G LTE/3G/2G High Performance Customizable Antenna from 2J Antennas. It uses a magnetic mount design with dimensions Ø 30.9 × 91. Key attributes include Ground Plane Dependent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 2.8 dBi 4G LTE Peak Gain, High Performance. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
4G LTE / Cellular / LPWA / NB-IoT
Connector & Cable
- Connector Type: SMA-Male (straight)
- Cable: 250 cm LL100
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Magnetic Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Dimensions: Ø 30.9 × 91 mm
Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT
Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~1.7:1, ~2.2:1, ~1.9:1
Efficiency (%): ~60.1, ~29.0, ~33.5
Peak Gain (dBi): ~1.8, ~1.1, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35
Key Features
- Ground Plane Dependent
- Wide band Antenna
- 698-2700 MHz 4GLTE Bands
- 2.8 dBi 4G LTE Peak Gain
- High Performance
- Small Form Factor
- Customizable Cable and Connector
Product family reference: 2J3924M. Configuration SKU: 2J3204M-250LL100-C20N.
