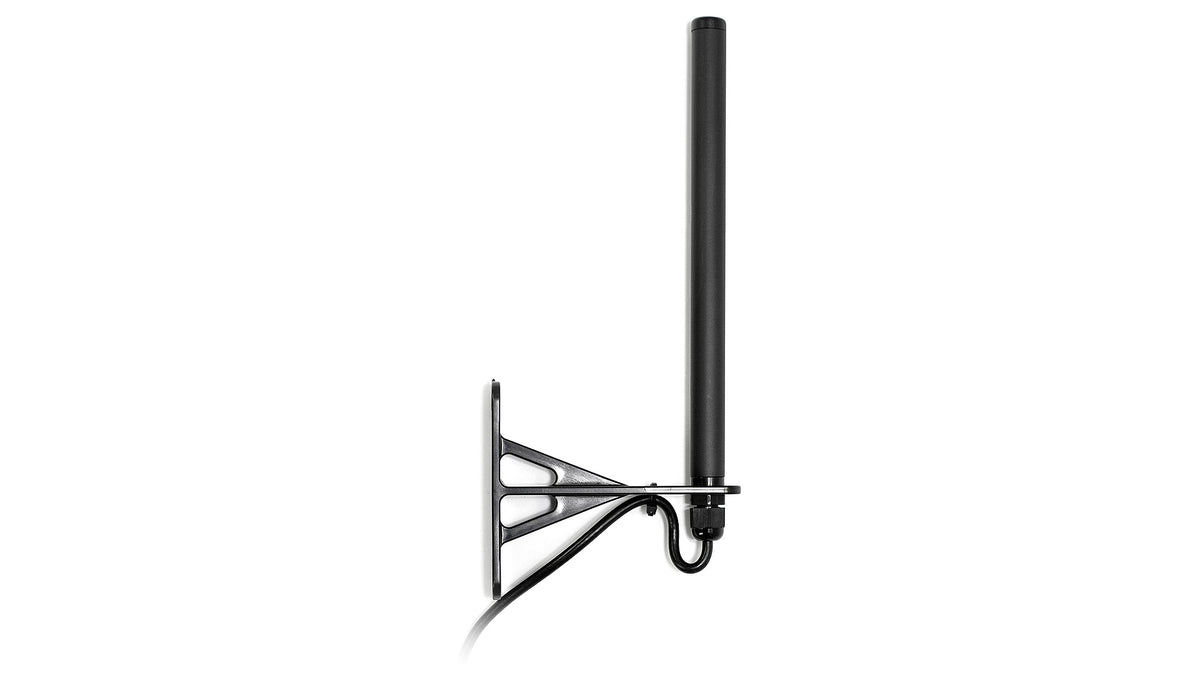

2J2124KW-B07H-300LL195W-C91GWST_CU010375 4G LTE/3G/2G Ground Plane Independent Wall Mount Antenna

The 2J2124KW-B07H-300LL195W-C91GWST_CU010375 is a 4G LTE/3G/2G Ground Plane Independent Wall Mount Antenna from 2J Antennas. It uses a wall mount design with dimensions 271 × 30 × 115 (219 × Ø 16). Key attributes include Ground Plane Independent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, 4.1 dBi 4G LTE Peak Gain, High Performance. Suitable for IoT, industrial, telematics, and wireless connectivity applications.

Connections

4G LTE / Cellular / LPWA / NB-IoT

Connector & Cable

• Connector Type: SMA-Male (white)
• Cable: 300 cm LL195
• Bracket: B07H
• White radome / white cable variant
• Custom/configured order code (_CU*) — media/datasheet from base catalog product

Installation / Environmental

Operating temperature: -40 °C to +85 °C. Mounting: Wall Mount. Standard colors: Black White.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Dimensions: 271 × 30 × 115 (219 × Ø 16) mm

Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT

Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~2.7:1, ~2.3:1, ~2.8:1
Efficiency (%): ~55, ~48.1, ~38.4
Peak Gain (dBi): ~4.1, ~2.9, ~0.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Key Features

• Ground Plane Independent
• Wide band Antenna
• 698-2700 MHz 4GLTE Bands
• 4.1 dBi 4G LTE Peak Gain
• High Performance
• Antenna Bracket included
• Customizable Cable and Connector

Download Datasheet PDF

Product family reference: 2J2124K-B07H. Configuration SKU: 2J2124KW-B07H-300LL195W-C91GWST_CU010375.
