Beschreibung

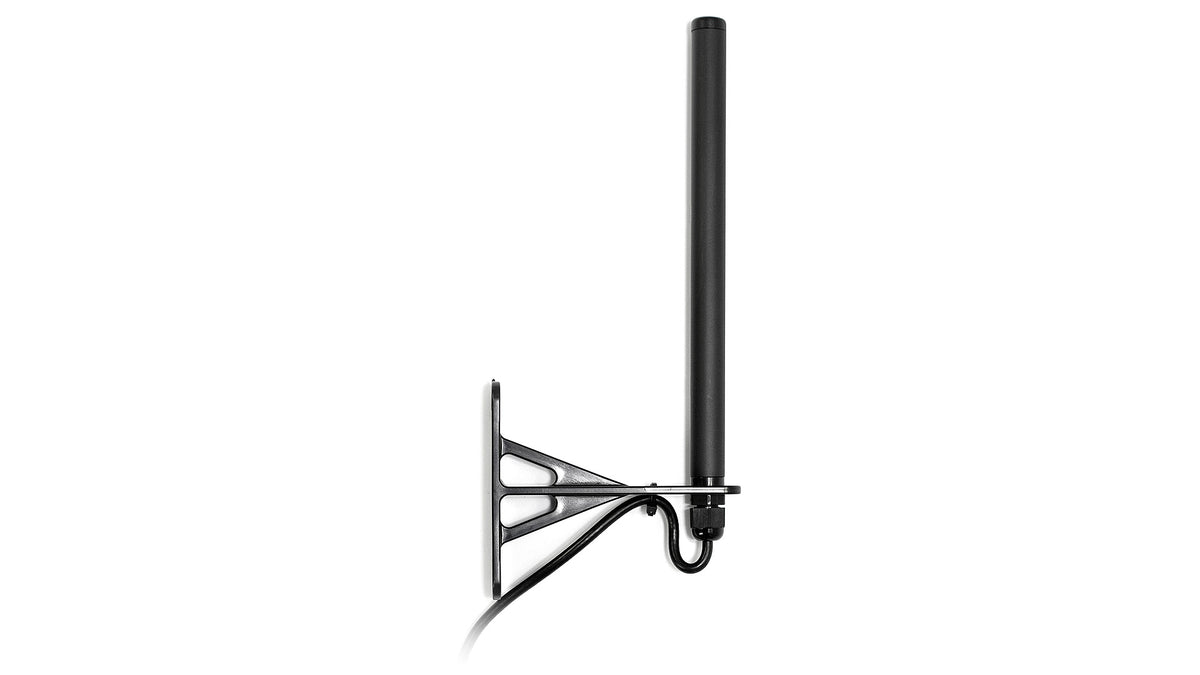

The 2J2115KW-868-B07H-300LL195W-C91GWST_CU01 is a 868 MHz ISM Omni-Directional Ground Plane Independent Antenna from 2J Antennas. It uses a wall mount design with dimensions 271 × 30 × 115 (219 × Ø 16). Key attributes include Ground Plane Independent, 3.2 dBi 868 MHz ISM Peak Gain, High Performance, Antenna Bracket included, Customizable Cable and Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male (white)
- Cable: 300 cm LL195
- Bracket: B07H
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Wall Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Dimensions: 271 × 30 × 115 (219 × Ø 16) mm
Connection 1 — 868 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~1.5:1
Efficiency (%): ~65.2
Peak Gain (dBi): ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ground Plane Independent
- 3.2 dBi 868 MHz ISM Peak Gain
- High Performance
- Antenna Bracket included
- Customizable Cable and Connector
Product family reference: 2J2115K-868-B07H. Configuration SKU: 2J2115KW-868-B07H-300LL195W-C91GWST_CU01.
2J2115KW-868-B07H-300LL195W-C91GWST_CU01 868 MHz ISM Omni Antenna
