Beschreibung

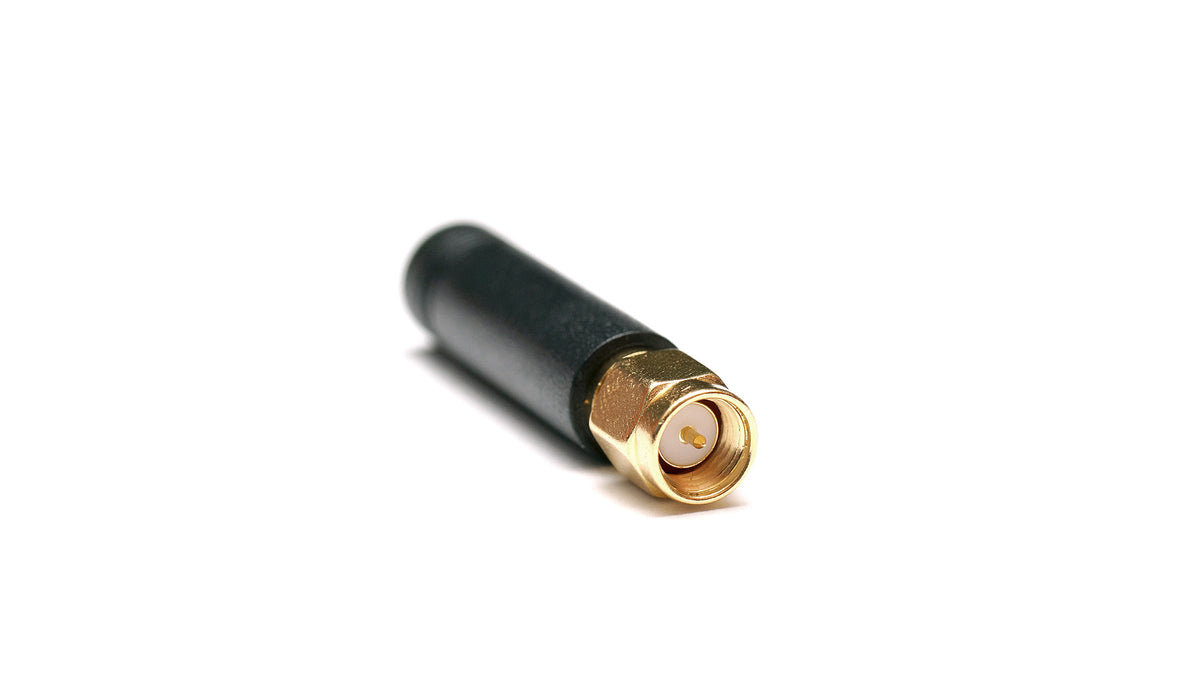

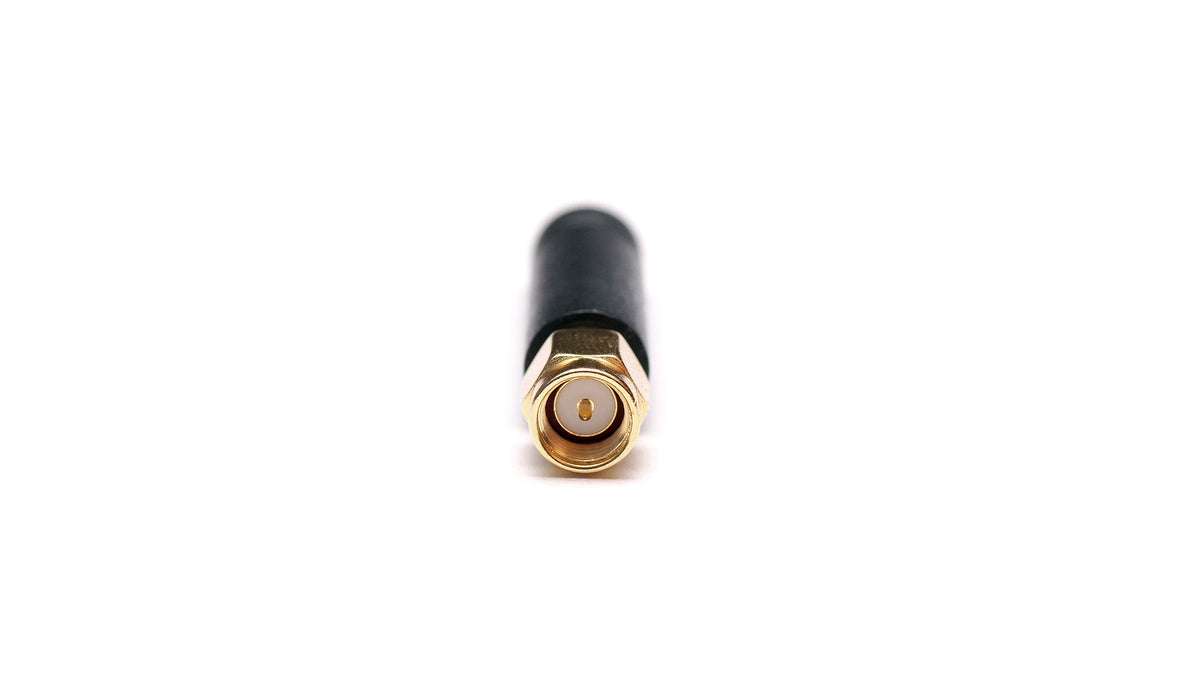

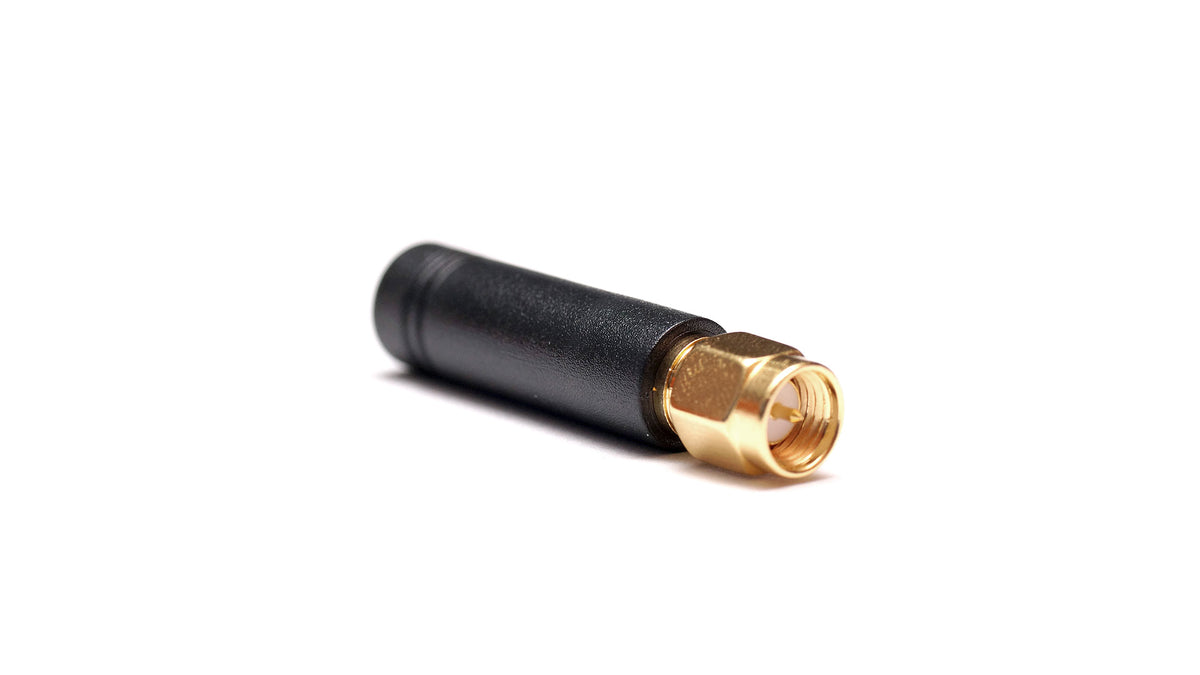

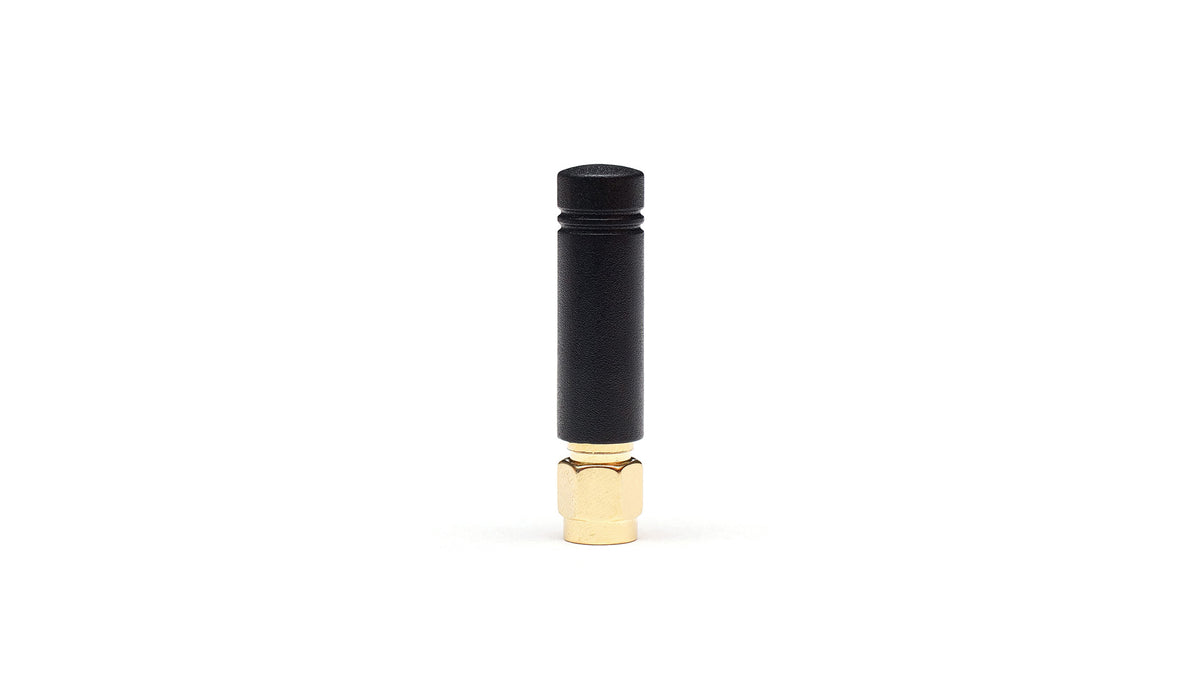

The 2J0C15W-868-C885G_CU010375 is a 868 MHz ISM Omni-Directional Ground Plane Dependent Antenna from 2J Antennas. It uses a connector mount design with dimensions 38 × Ø 9 mm. Key attributes include Monopole Antenna, Ground Plane Dependent, 2.5 dBi 868 MHz ISM Peak Gain, High Performance, High Efficiency. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
868 MHz ISM / Sigfox / LoRa / LPWA
Connector & Cable
- Connector Type: SMA-Male
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 38 × Ø 9 mm
Connection 1 — 868 MHz ISM / Sigfox / LoRa / LPWA
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~2.2:1
Efficiency (%): ~64
Peak Gain (dBi): ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Monopole Antenna
- Ground Plane Dependent
- 2.5 dBi 868 MHz ISM Peak Gain
- High Performance
- High Efficiency
- Small Form Factor
Product family reference: 2J0C15-868-C885G. Configuration SKU: 2J0C15W-868-C885G_CU010375.
2J0C15W-868-C885G_CU010375 868 MHz ISM Omni-Directional Antenna
