Beschreibung

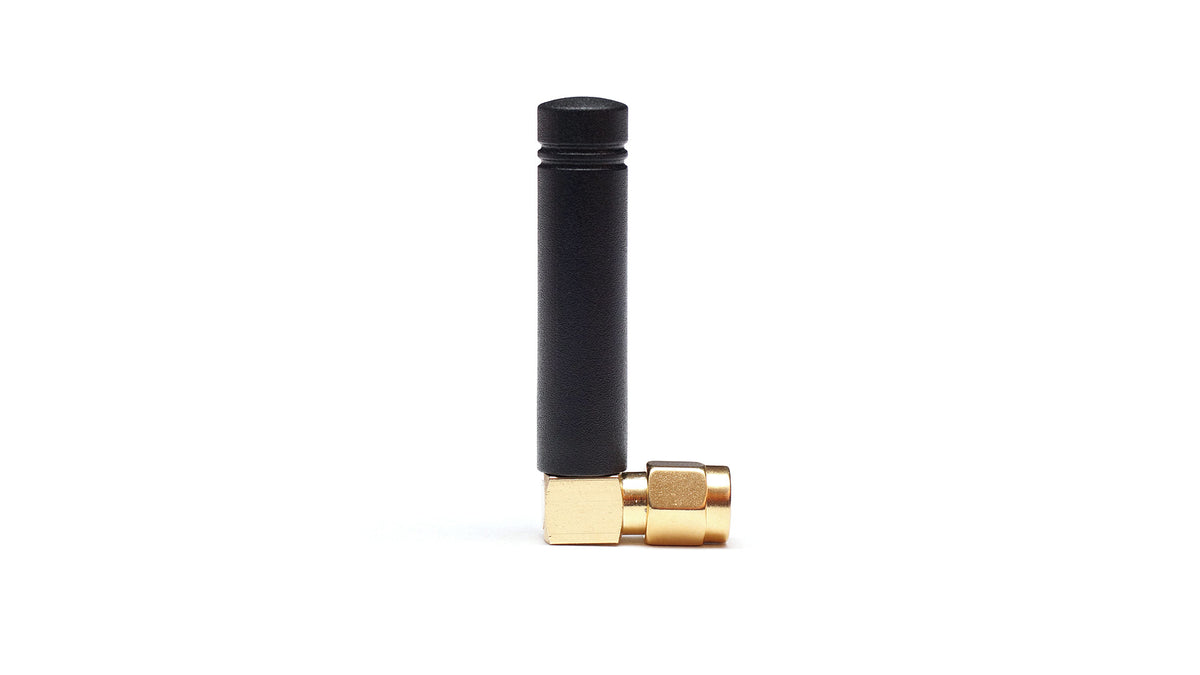

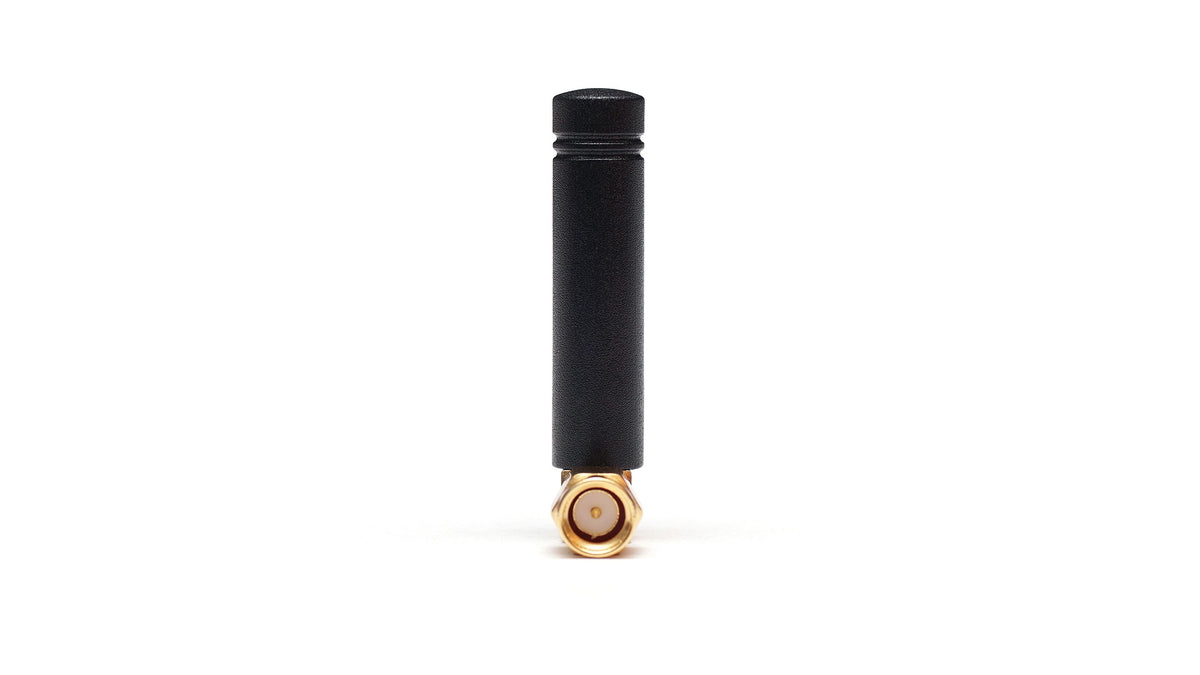

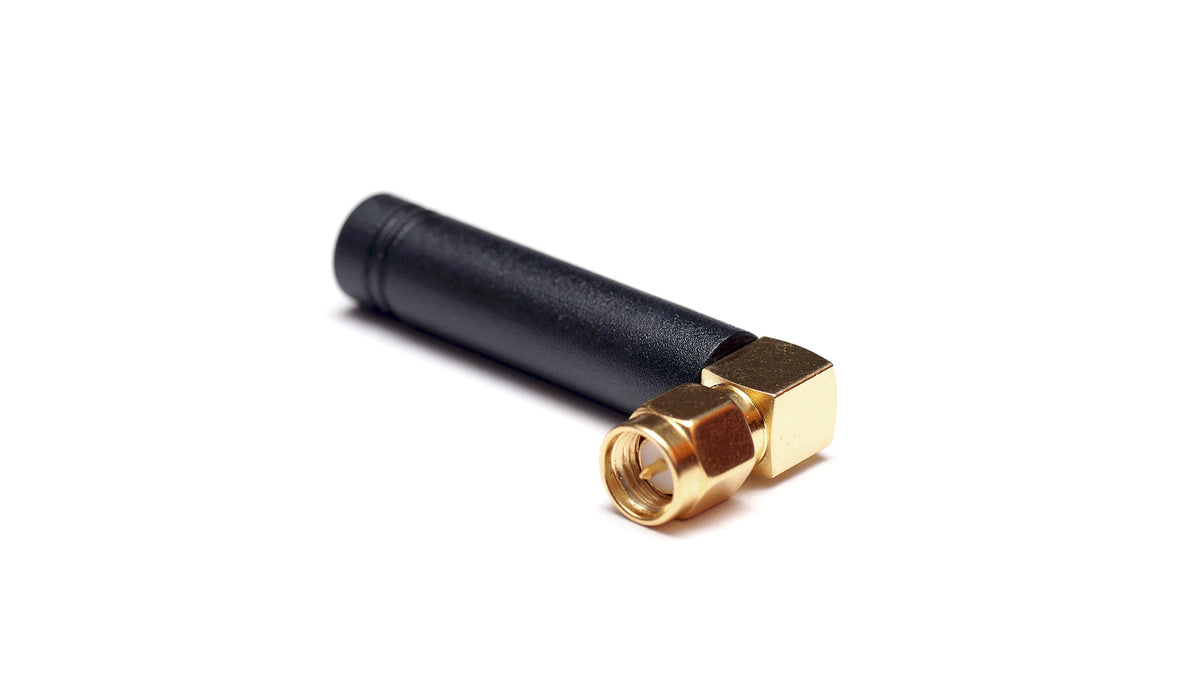

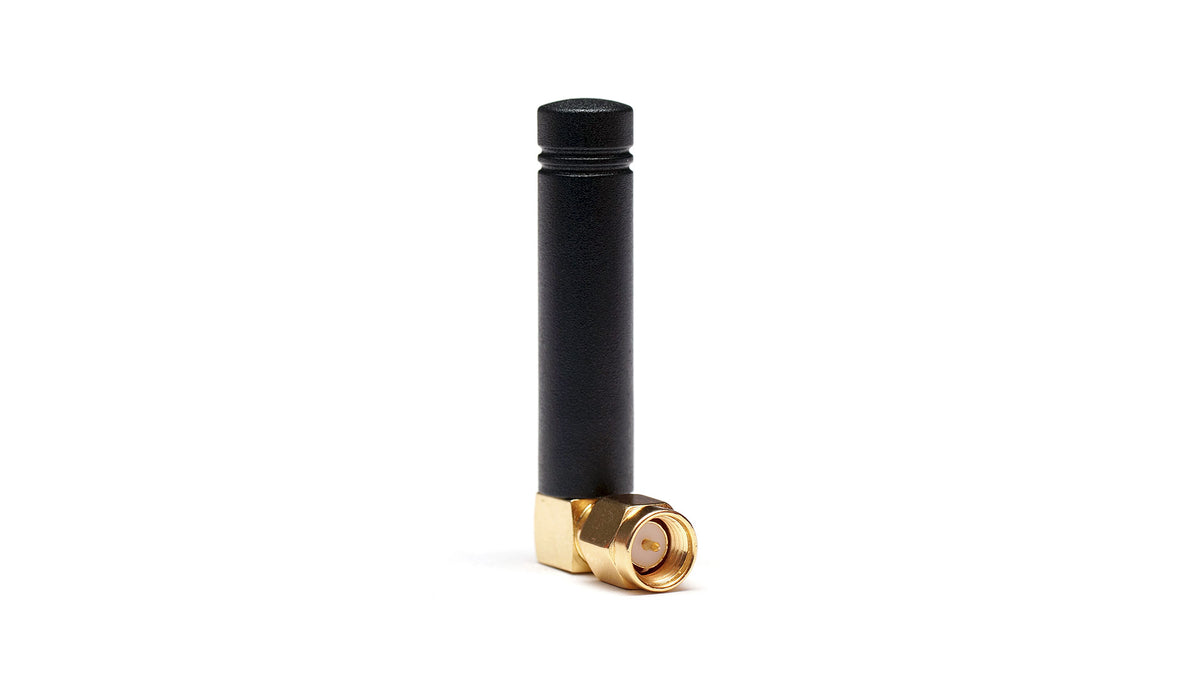

The 2J0B24W-C884G_CU010375 is a 4G LTE 3G 2G Wideband Right Angle Smart Antenna from 2J Antennas. It uses a connector mount design with dimensions 44 × 19.1 × 9. Key attributes include Monopole Antenna, Ground Plane Dependent, Wide band Antenna, 698-2700 MHz 4GLTE Bands, Small Form Factor. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
4G LTE / Cellular / LPWA / NB-IoT
Connector & Cable
- Connector Type: SMA-Male R/A
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 44 × 19.1 × 9 mm
Connection 1 — 4G LTE / Cellular / LPWA / NB-IoT
Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE (NB-IoT)
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~3.0:1, ~2.7:1, ~5.4:1
Efficiency (%): ~65.5, ~55.6, ~11.1
Peak Gain (dBi): ~0.9, ~1.6, ~-6.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Monopole Antenna
- Ground Plane Dependent
- Wide band Antenna
- 698-2700 MHz 4GLTE Bands
- Small Form Factor
- Right-Angle Connector
- 1.6 dBi 4G LTE Peak Gain
Product family reference: 2J0B24-C884G. Configuration SKU: 2J0B24W-C884G_CU010375.
2J0B24W-C884G_CU010375 4G LTE 3G 2G Wideband Right Angle Smart Antenna
