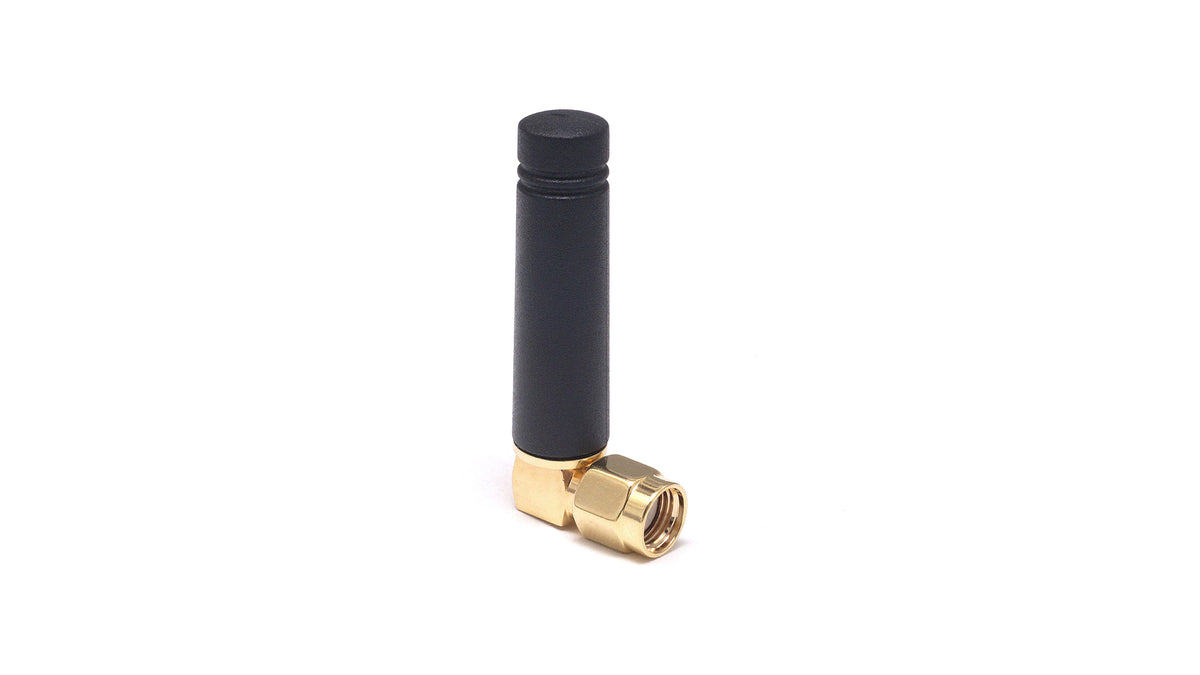

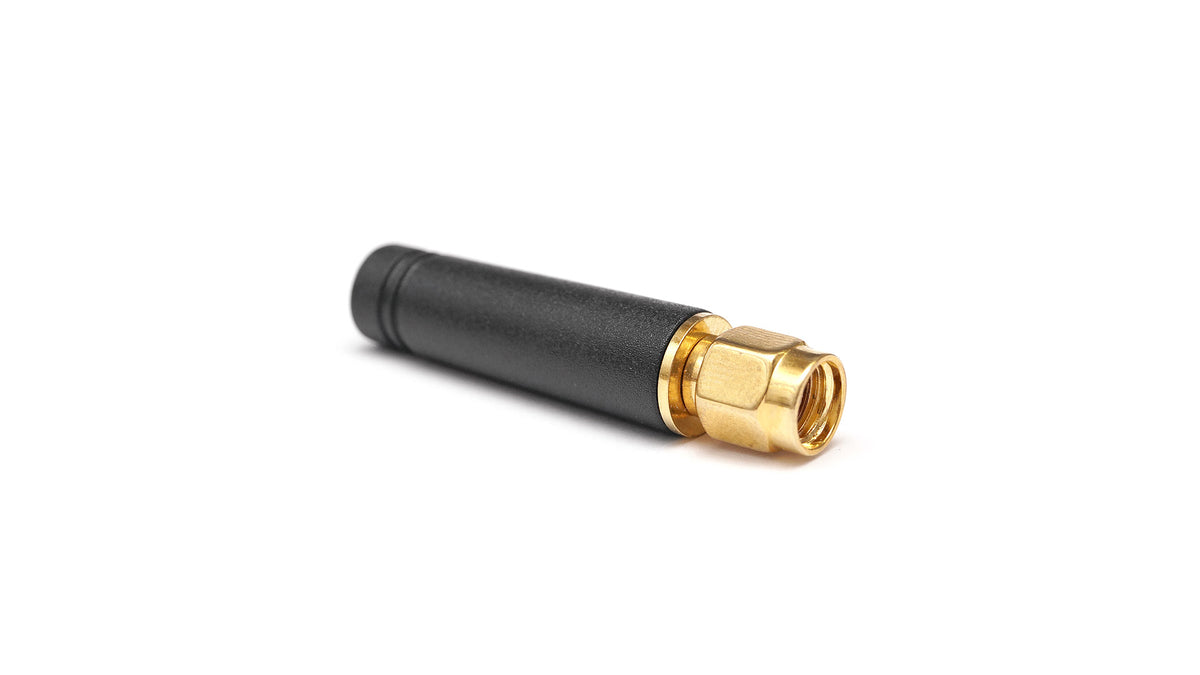

The 2J0A02-2.4-C162G_CU010375 is a 2.4 GHz ISM Wifi High Efficiency Antenna from 2J Antennas. It uses a connector mount design with dimensions 44 × 9.6. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
Connector & Cable
- Connector Type: SMA-Male
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
- C162G connector variant; catalog page/PDF use C166G family
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 44 × 9.6 mm
Connection 1 — 2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
Standards: WiFi, Bluetooth®, ZigBee, ISM
Frequency: 2410-2490
VSWR: ~4.1:1
Efficiency (%): ~61
Peak Gain (dBi): ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Product family reference: 2J0A02-2.4-C166G. Configuration SKU: 2J0A02-2.4-C162G_CU010375.
