Telit Cinterion SE868K5-I GNSS Module
Unit Price excluding VAT. Shipping calculated at checkout.

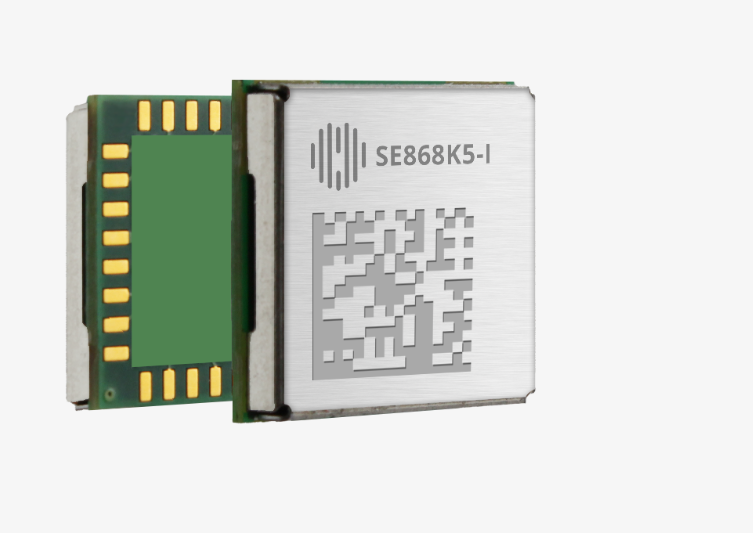

The Telit Cinterion SE868K5-I is a high-performance GNSS module supporting multi-constellation tracking across GPS, Galileo, GLONASS, BeiDou, and NavIC (IRNSS). Designed with a compact 11x11 mm footprint, it integrates an LNA, SAW filter, and Flash memory to improve sensitivity and enable use with passive antennas. The SE868K5-I is ideal for navigation and positioning applications that require reliable multi-constellation data, including automotive telematics and fleet management.
Key Features:
- Multi-Constellation GNSS Support: Tracks GPS, Galileo, GLONASS, BeiDou, and NavIC in L1 and L5 bands for enhanced accuracy and reliability.
- Compact and Robust Design: 11x11 mm QFN package compatible with SE868 family modules, ideal for space-constrained applications.
- Enhanced Sensitivity: Integrated LNA and SAW filter provide improved signal quality, especially in challenging environments.
- Power Efficiency: Multiple power-saving modes with as low as 30 µW in RTC mode to extend battery life.
- A-GNSS and SBAS Compatibility: Supports ephemeris file injection and SBAS (e.g., GAGAN, WAAS) for faster TTFF and improved positional accuracy.
Applications:
The SE868K5-I is suited for applications requiring precise and reliable GNSS tracking, such as fleet management, e-mobility solutions, and telematics. Its compact form and multi-constellation capabilities make it a powerful choice for demanding IoT and automotive applications.
Downloads: Datasheet
