ANT-SI301102799 868/915 MHz ISM Connector Mount

In stock - 7 items available
SKU: ANT-SI301102799
€5,21 EUR

Unit Price excluding VAT. Shipping calculated at checkout.

Let us know your specific requirements or check the availability of this product. We’ll get back to you shortly.

Description

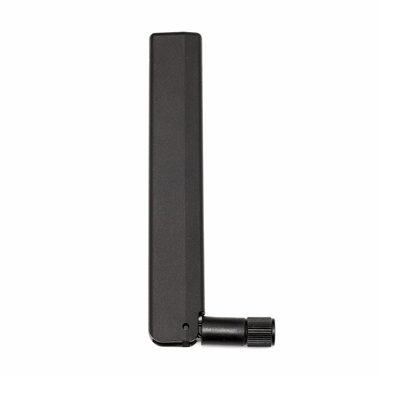

The ANT-SI301102799 is a high-performance 868/915 MHz ISM connector-mount antenna designed for reliable wireless connectivity in LoRa, SIGFOX, ZigBee and other ISM applications. It supports the 863–870 MHz and 902–928 MHz bands, features an omni-directional radiation pattern, linear polarization, 50 Ohm impedance and a hinged SMA male connector for flexible positioning. The antenna is ground plane independent, offers up to 70% efficiency with peak gain up to 3.3 dBi, and is housed in a black ASA radome. With compact dimensions of 135 × 19 × 10 mm and an operating temperature range of -40°C to +85°C, it is well suited for demanding industrial and IoT environments.
