5G High Performance Connector Mount IoT Antenna
Unit Price excluding VAT. Shipping calculated at checkout.
Product Overview:

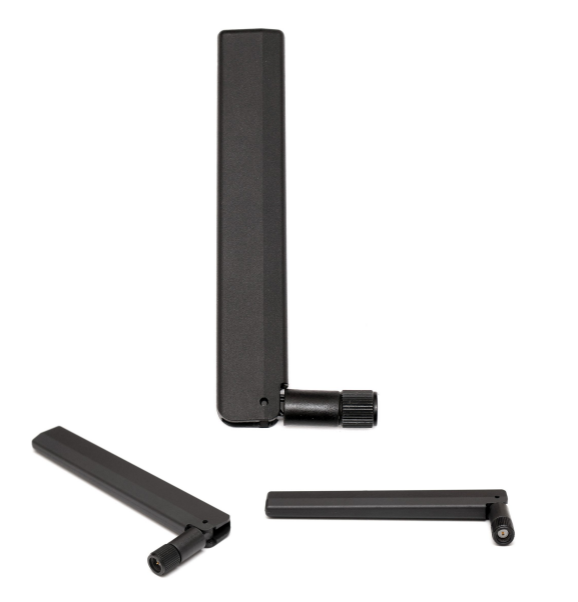

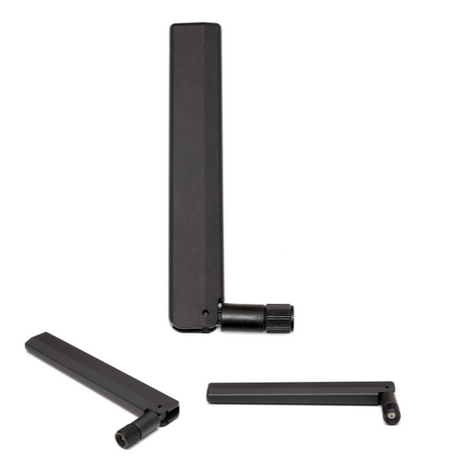

The ANT-LXH66494-SMA-M is an ultra-wideband 5G antenna designed for a variety of cellular applications. With its hinged connector and ground-plane independence, this antenna is perfect for both indoor and outdoor installations.
Key Features:
- Supports 5G, 4G LTE, 3G, and 2G
- Ground-plane independent
- Hinged connector for flexible positioning
- Customizable cable and connector options
- Dimensions: 135 × 19 × 10 mm
Technical Specifications:
-
Frequency Ranges:
- 617-960 MHz
- 1427-2690 MHz
- 3300-5000 MHz
- 5150-5925 MHz
- Impedance: 50 Ohm
- Polarization: Linear
- Max Input Power: 25W
- Connector Type: SMA-Male
- Operating Temperature: -40°C to +85°C
- Certificates: RoHS Compliant
Installation Notes:
This antenna is designed for connector mounting and features a hinged connector for flexibility in positioning. Ensure proper alignment for best performance.
Frequently Asked Questions:
Q1: What frequencies does this antenna support?
A1: The antenna supports 5G, 4G, 3G, and 2G frequencies from 617 MHz to 5925 MHz.
Q2: Can this antenna withstand outdoor conditions?
A2: Yes, with an operating temperature range from -40°C to +85°C, this antenna is suitable for outdoor environments.
Inquire for customization options eg connector, cable length, and bulk quantity.
Support and Documentation
Download: Datasheet
