Description

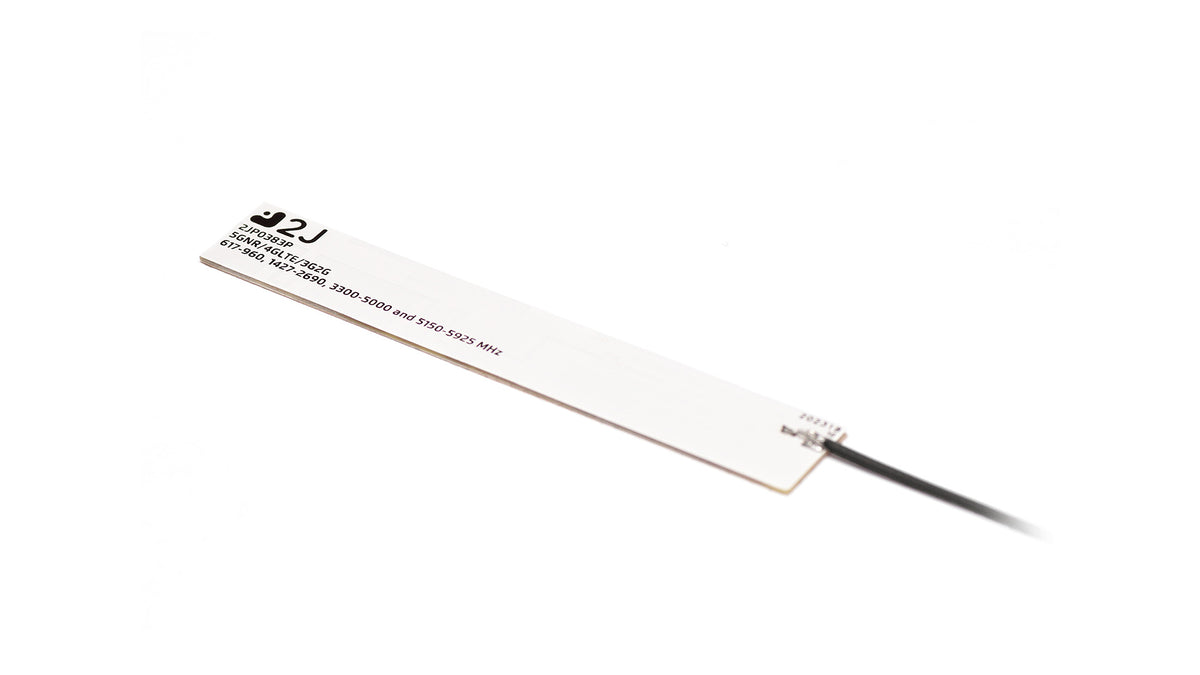

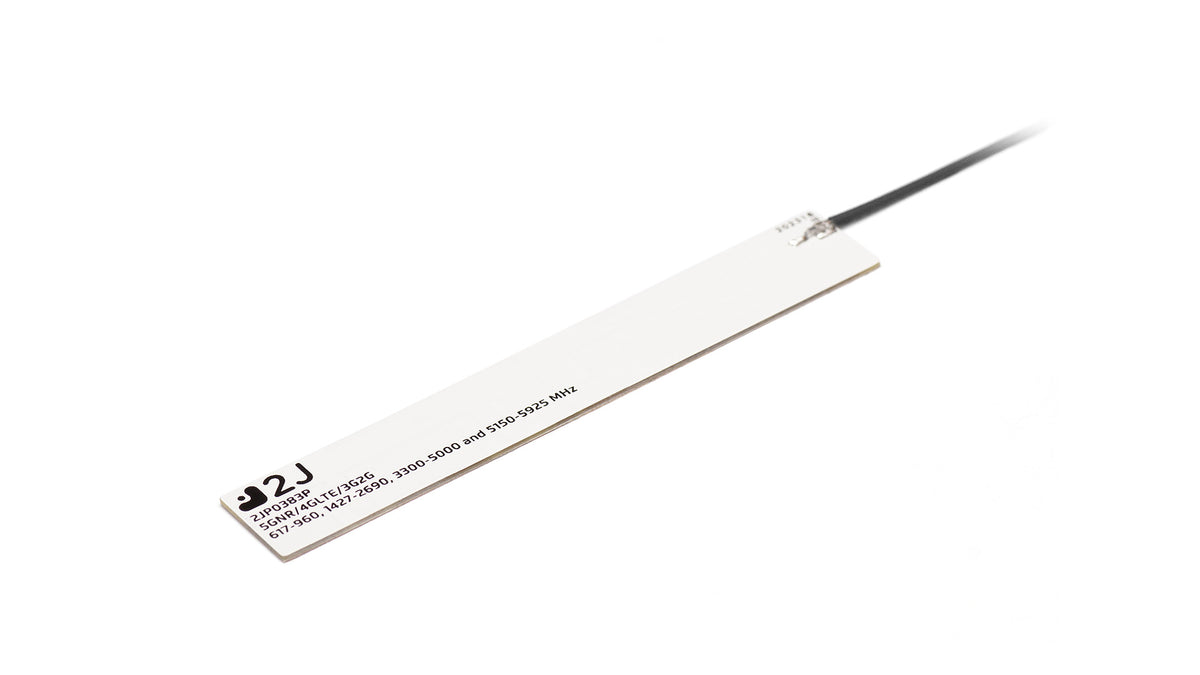

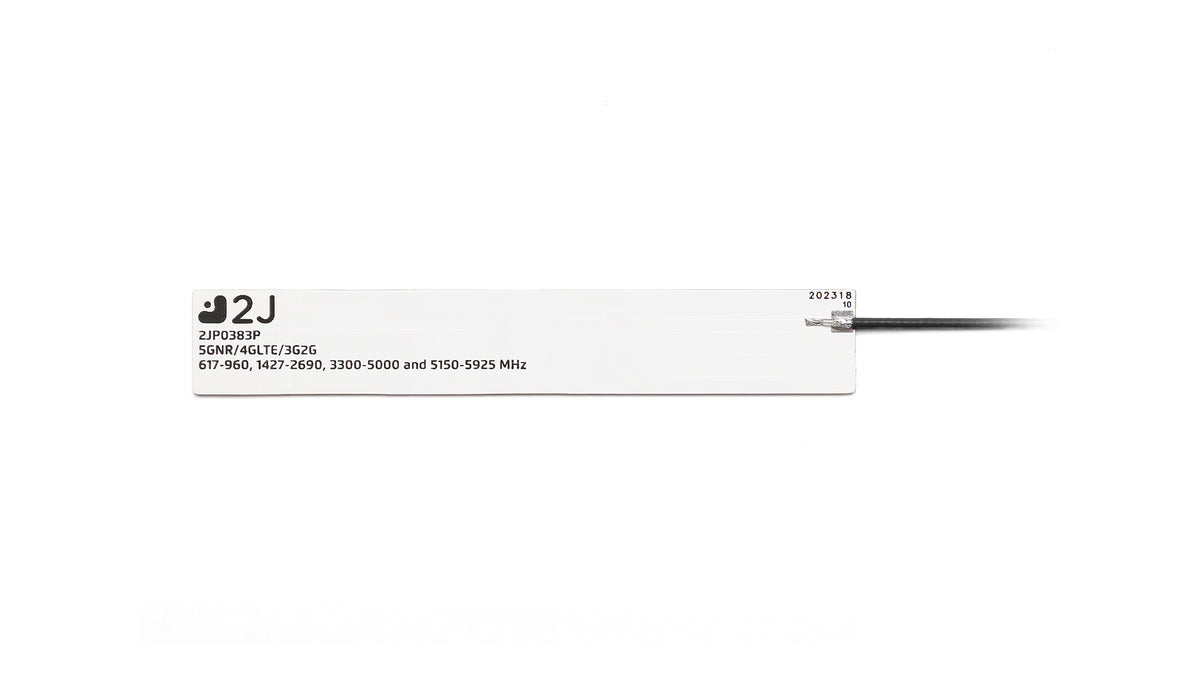

The 2JP0383P-018MC137B-UFL is a 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G Rigid Fiberglass Adhesive Mount from 2J Antennas. It uses a adhesive mount rigid design with dimensions 90 × 14 × 0.9. Key attributes include Ultra Wide band Antenna, Rigid Internal Antenna, 617-5925 MHz Sub 6GHz Bands, Full 4GLTE backward compatibility, Ground Plane Independent. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
5G NR / Cellular / LPWA
Connector & Cable
- Connector Type: U.FL / IPEX
- Cable: 18 cm MC137B
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Adhesive Mount Rigid.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Dimensions: 90 × 14 × 0.9 mm
Connection 1 — 5G NR / Cellular / LPWA
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
VSWR: ~1.8:1, ~1.9:1, ~2.4:1, ~2.1:1
Efficiency (%): ~45.3, ~45.0, ~40.7, ~40.6
Peak Gain (dBi): ~-0.5, ~1.8, ~2.2, ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Ultra Wide band Antenna
- Rigid Internal Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 3.1 dBi 5G NR Peak Gain
- High Performance
- Fiberglass Material
- Self-Adhesive
- Smallest in the Market
- Customizable Cable and Connector
Product family reference: 2JP0383P. Configuration SKU: 2JP0383P-018MC137B-UFL.
