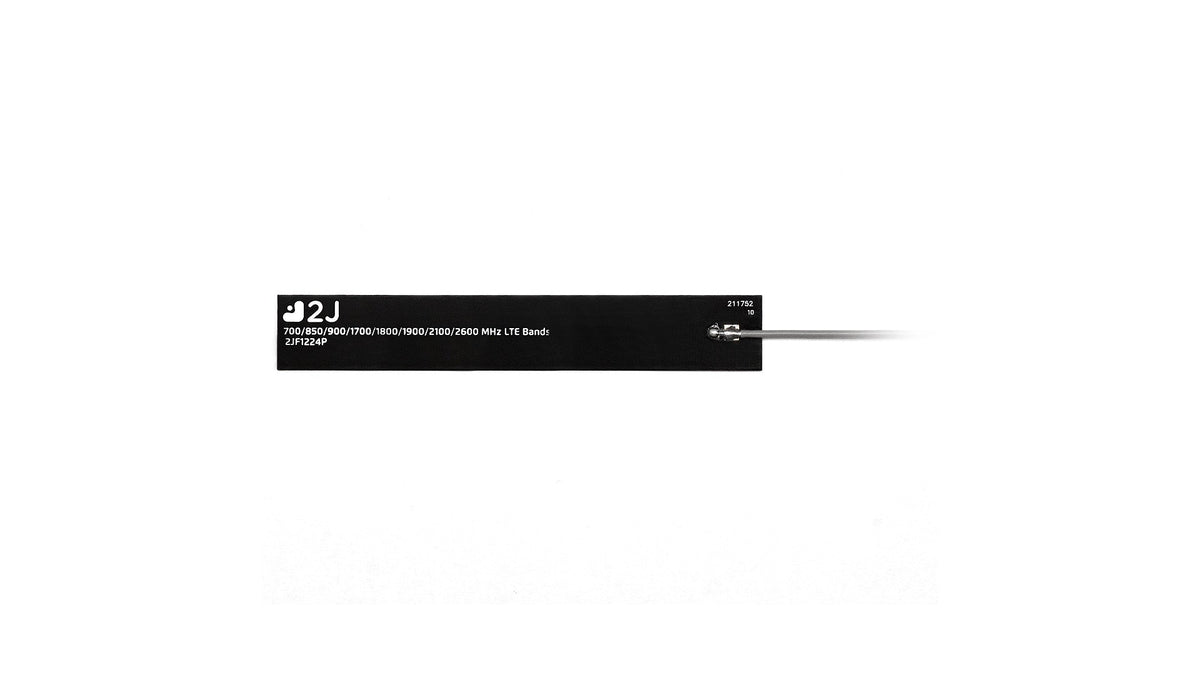

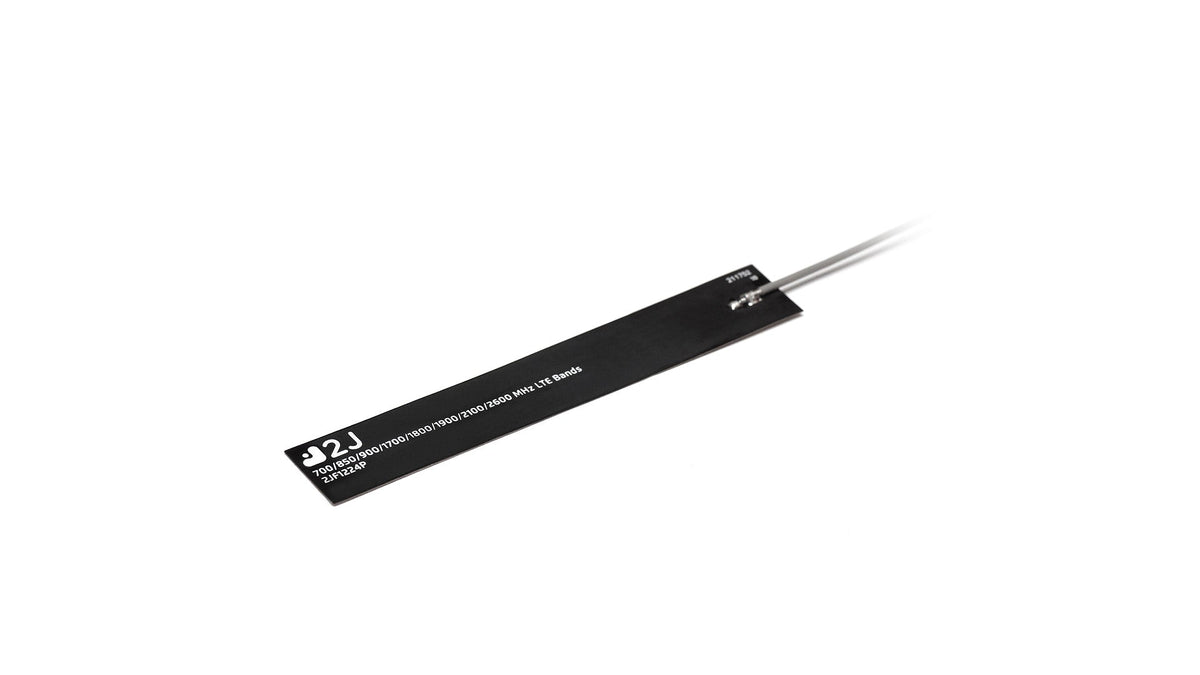

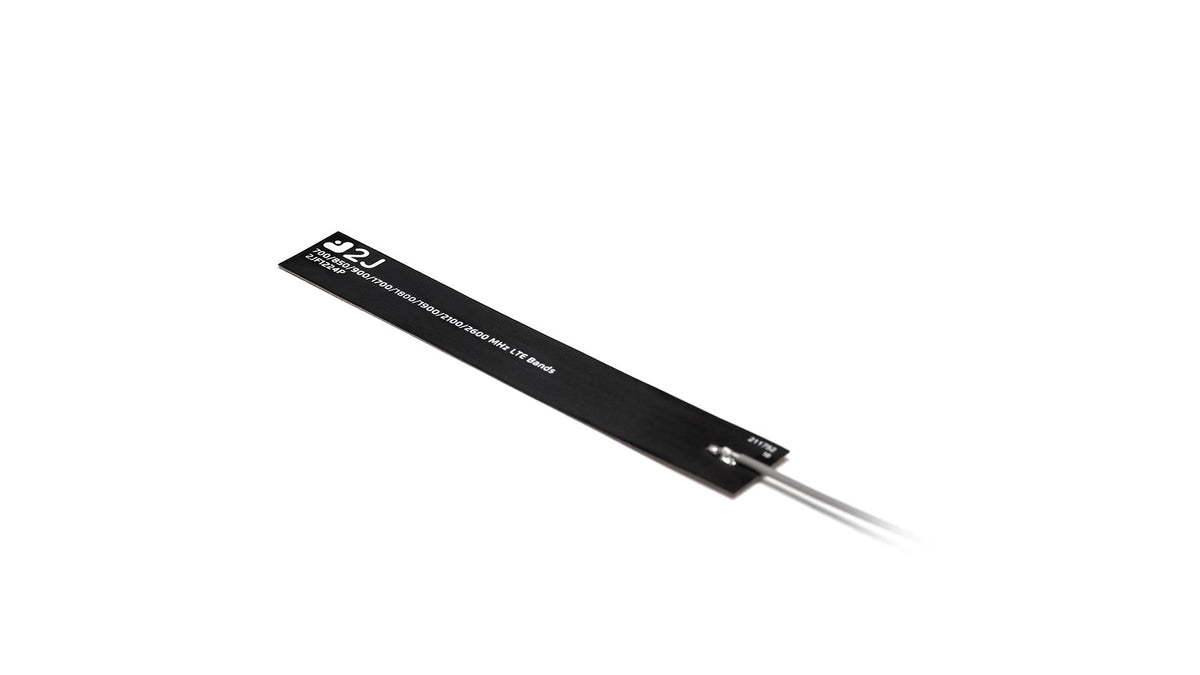

2JF1224P 4G/LTE adhesive mount flexible internal Antenna U.FL 15cm

Name: 2JF1224P 4G/LTE adhesive mount flexible internal Antenna U.FL 15cm
Brand: 2J
SKU: 2JF1224P-015MC137-UFL
Price: 5.2 EUR
Availability: InStock

€5,20

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This ultra-thin, flexible adhesive antenna is designed for seamless integration into compact devices requiring reliable 4G/LTE, 3G, and 2G connectivity. Its omnidirectional radiation pattern ensures 360° coverage, making it ideal for applications such as consumer electronics, robotics, wearables, asset tracking, and IoT devices. The antenna is ground plane independent and features a self-adhesive backing for easy installation on various surfaces. Its low-profile design allows for discreet placement within enclosures, supporting high-performance wireless communication in space-constrained environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

Connector Type: U.FL-Male
Cable Length: 15cm
Cable Type: MC137

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: FPC
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single
Dimensions: 90 × 14 × 0.2 mm

Connection 1 - Cellular

Frequency: 698-960, 1710-2170, 2500-2700 MHz
Standards: 2G, 3G, 4G
VSWR: ~2.5:1, ~1.6:1, ~1.7:1
Efficiency (%): ~48.6, ~60, ~60.1
Peak Gain (dBi): ~0.5, ~3.7, ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF
