2J  |  SKU: 2JF0724P-015MC137-UFL

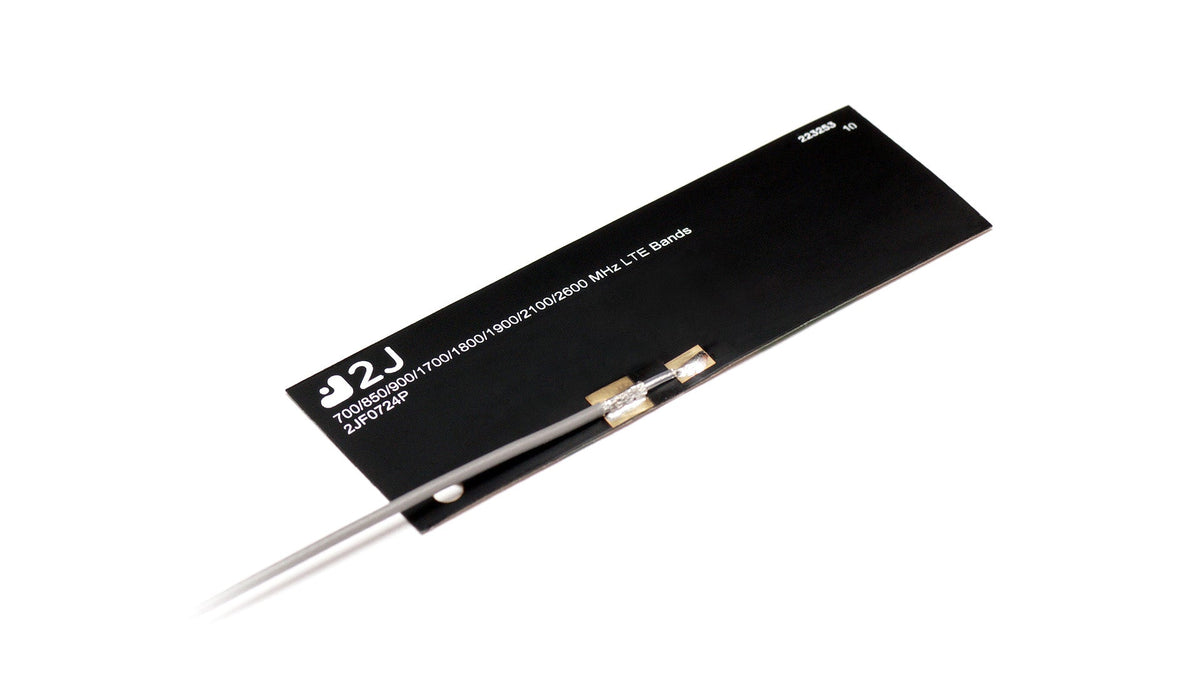

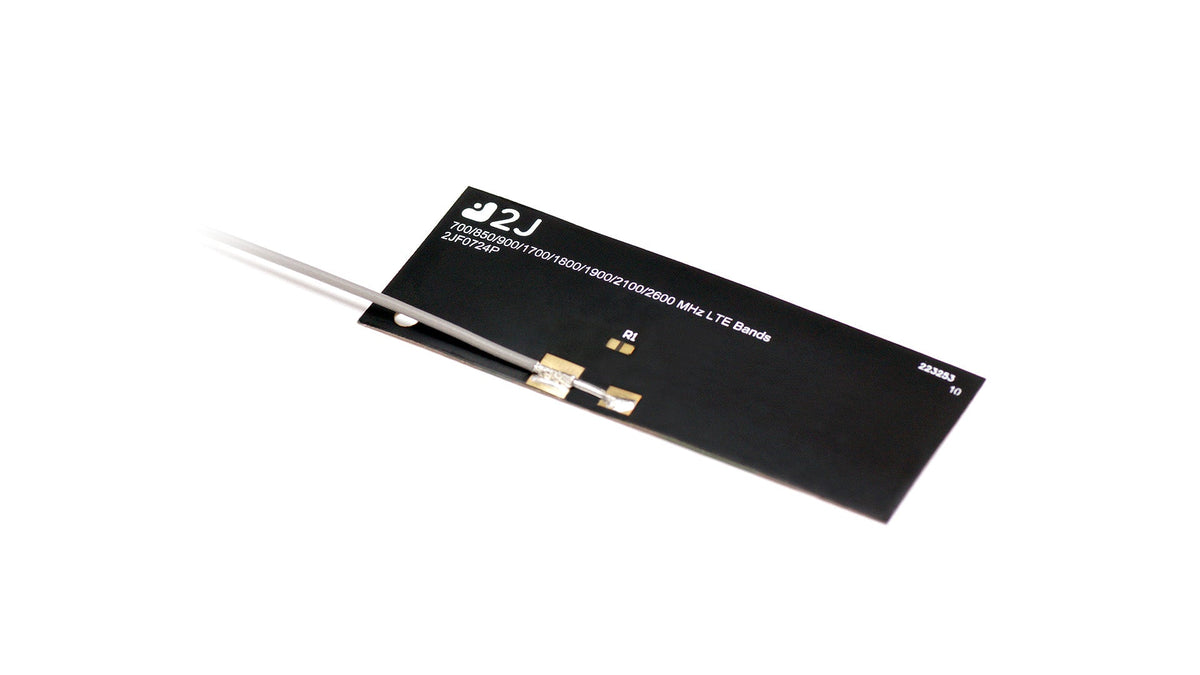

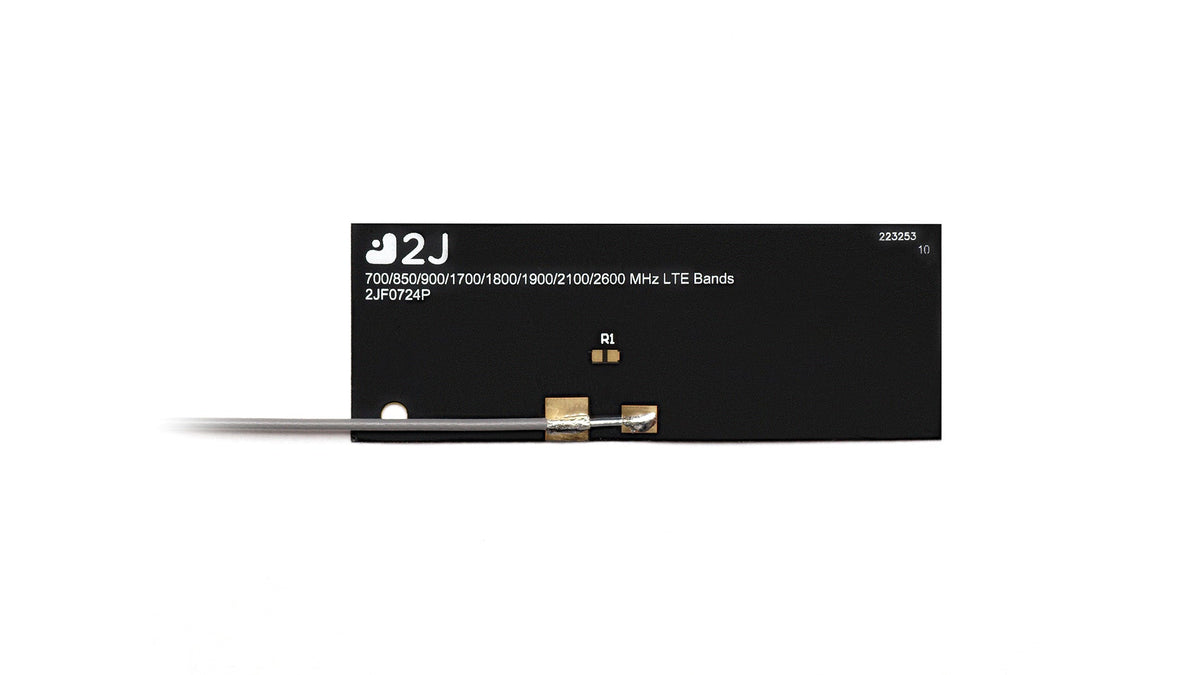

2JF0724P 4G/LTE adhesive mount flexible Antenna U.FL 15cm

€5,51
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This ultra-thin, flexible adhesive antenna is designed for seamless integration into a wide range of devices requiring reliable 4G LTE, 3G, and 2G connectivity. Its omnidirectional radiation pattern ensures 360° coverage, making it ideal for applications such as IoT, smart home, consumer electronics, robotics, and more. The antenna is ground plane independent and delivers high efficiency and peak gain for optimal wireless performance. Its self-adhesive backing allows for easy and secure installation on various surfaces, making it a versatile solution for embedded and internal antenna needs.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

  • Connector Type: U.FL-Male
  • Cable Length: 15cm
  • Cable Type: MC137


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single
Dimensions: 70.4 × 26.4 × 0.3 mm

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.4:1, ~1.6:1, ~3.1:1
Efficiency (%): ~68, ~80.6, ~55.6
Peak Gain (dBi): ~3.4, ~4.2, ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2JF0724P","manufacturer":"2J Antennas","title":"4G LTE/3G/2G Flexible Ultra-Thin PCB Adhesive Antenna","mountingType":"Self-Adhesive","dimensions_mm":"70.4 × 26.4 × 0.3","operatingTemperature_c":"-40 to +85","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm ABS plate with 2.5 mm thickness, 150 mm 1.37 mm Mini-Coax cable","elements":[{"elementID":"Connection 1","type":"Cellular / LTE","standards":["2G","3G","4G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":-6.6,"vswr":"3.4:1","efficiency_percent":68.0,"peakGain_dbi":3.4,"averageGain_db":-1.9},{"range_mhz":"1710-2170","returnLoss_db":-13.4,"vswr":"1.6:1","efficiency_percent":80.6,"peakGain_dbi":4.2,"averageGain_db":-0.9},{"range_mhz":"2500-2700","returnLoss_db":-6.0,"vswr":"3.1:1","efficiency_percent":55.6,"peakGain_dbi":3.4,"averageGain_db":-2.6}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":150}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2jf0724p.pdf"}
