2JF0683P 5G Antenna adhesive U.FL 15cm

Name: 2JF0683P 5G Antenna adhesive U.FL 15cm
Brand: 2J
SKU: 2JF0683P-015MC137-UFL
Price: 3.62 EUR
Availability: InStock

€3,62

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

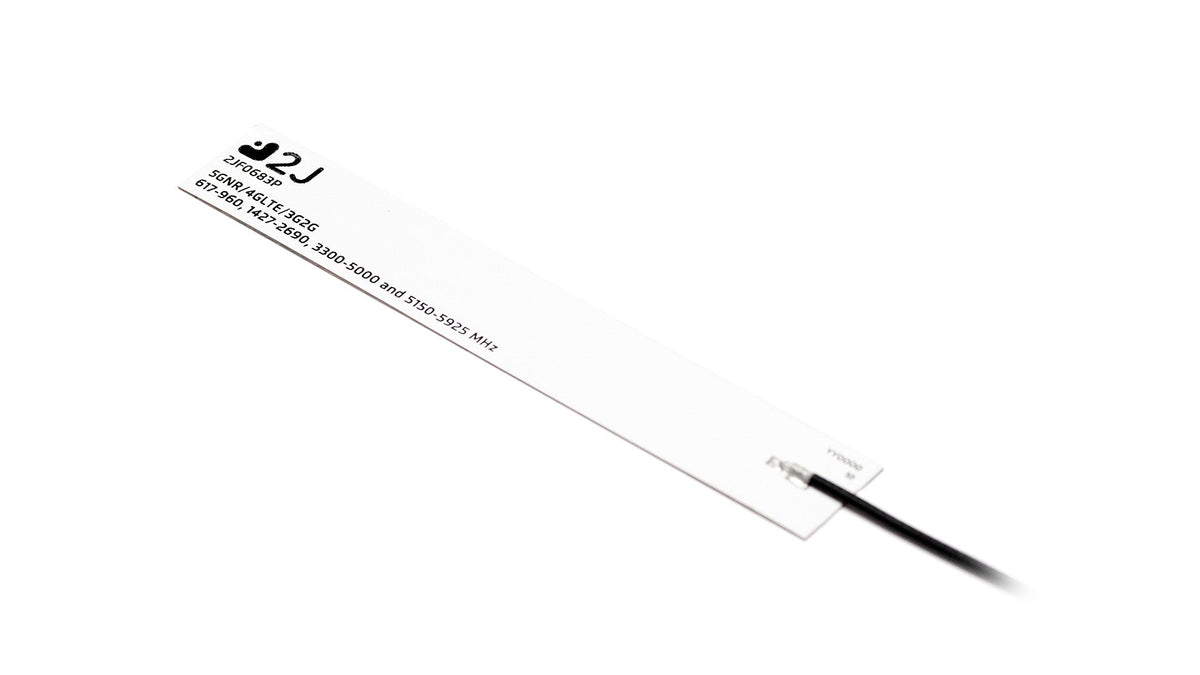

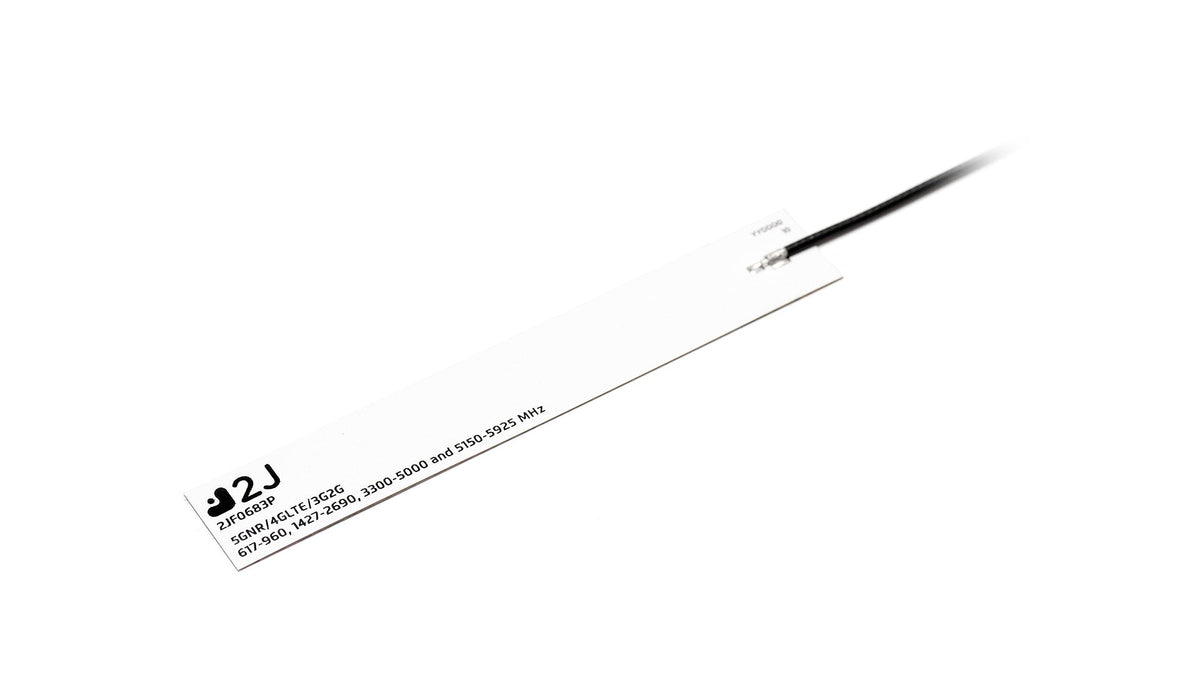

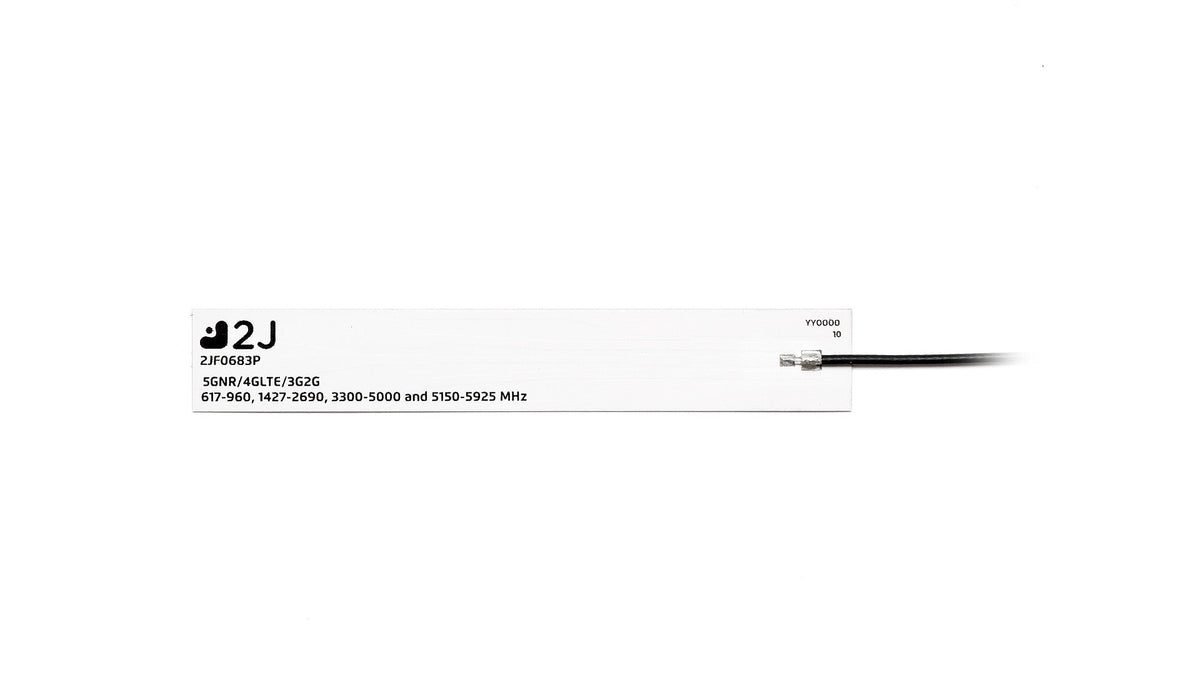

This ultra-thin, flexible adhesive antenna is engineered for high-performance 5G, 4G, 3G, and 2G connectivity across a wide frequency range (617–5925 MHz). Its compact design and ground plane independence make it ideal for integration into space-constrained devices, including curved surfaces. The antenna is suitable for a variety of applications such as IoT, wearables, robotics, drones, and public safety devices, delivering reliable signal strength and quality. Manufactured from high-grade flexible polymer, it withstands extreme temperatures and is available with customization options for cable and connector types.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

Connector Type: U.FL-Male
Cable Length: 15cm
Cable Type: MC137

Installation / Environmental

The antenna features strong adhesive mounting for easy installation inside plastic housings, even on curved surfaces. The 2JF0683P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 150mm in length. It is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for both indoor and outdoor environments. The peel-and-stick design offers a low-cost, high-volume solution for device manufacturers. Customization options for cable and connector types are available to meet specific integration needs.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: FPC
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-M
Mounting: Adhesive Mount Flexible
Type: Single
Dimensions: 90 × 14 × 0.2 mm

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-9.4, ~-10.5, ~-6.2, ~-11.7
VSWR: ~2.4:1, ~2.2:1, ~3.4:1, ~1.9:1
Efficiency (%): ~45.3, ~56.8, ~42.1, ~45.6
Peak Gain (dBi): ~0.1, ~3.1, ~2.1, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2JF0683P","manufacturer":"2J Antennas","title":"High-Performance 5GNR/4GLTE/3G/2G Flexible Polymer Adhesive Antenna","mountingType":"Adhesive Mount","dimensions_mm":"90 × 14 × 0.2","operatingTemperature_c":"-40 to +85","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 x 0.25 cm ABS plate, 180 mm 1.37 mm Mini-Coax cable","elements":[{"elementID":"Connection 1","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-9.4,"vswr":"2.4:1","efficiency_percent":45.3,"peakGain_dbi":0.1,"averageGain_db":-3.6},{"range_mhz":"1427-2690","returnLoss_db":-10.5,"vswr":"2.2:1","efficiency_percent":56.8,"peakGain_dbi":3.1,"averageGain_db":-2.5},{"range_mhz":"3300-5000","returnLoss_db":-6.2,"vswr":"3.4:1","efficiency_percent":42.1,"peakGain_dbi":2.1,"averageGain_db":-3.8},{"range_mhz":"5150-5925","returnLoss_db":-11.7,"vswr":"1.9:1","efficiency_percent":45.6,"peakGain_dbi":4.2,"averageGain_db":-3.5}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":150}],"datasheetStandard":{"connector":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":180,"note":"2J datasheet standard; this product is a configured variant (see connectors)"},"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2jf0683p.pdf"}
