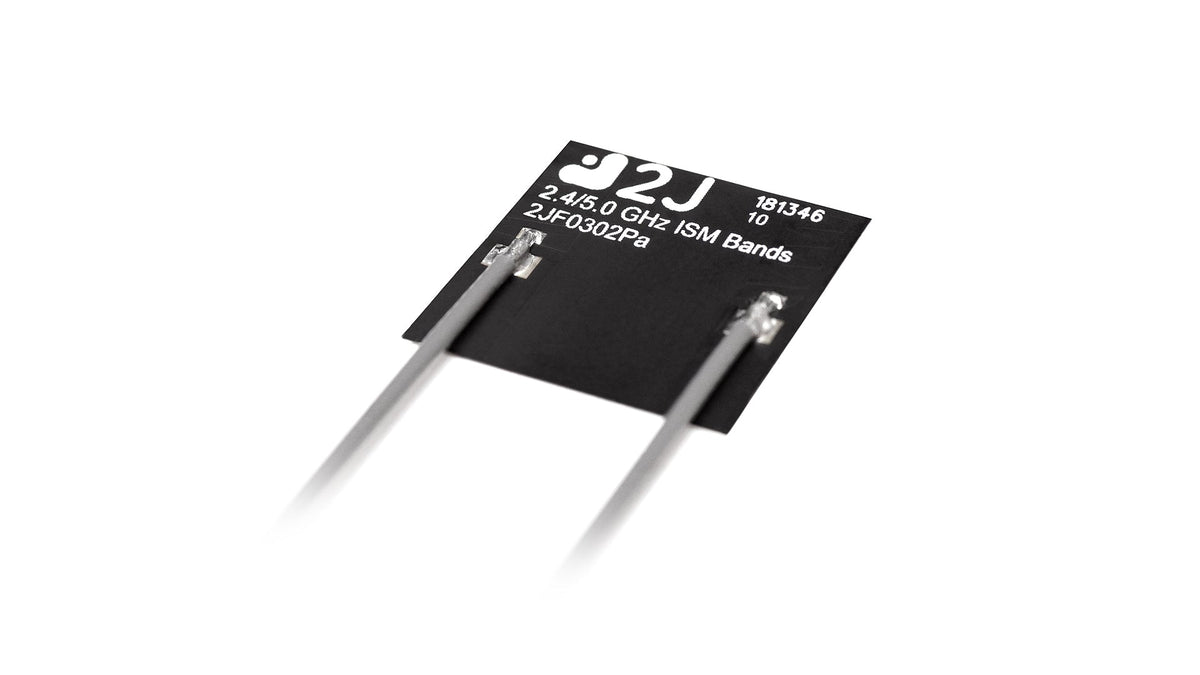

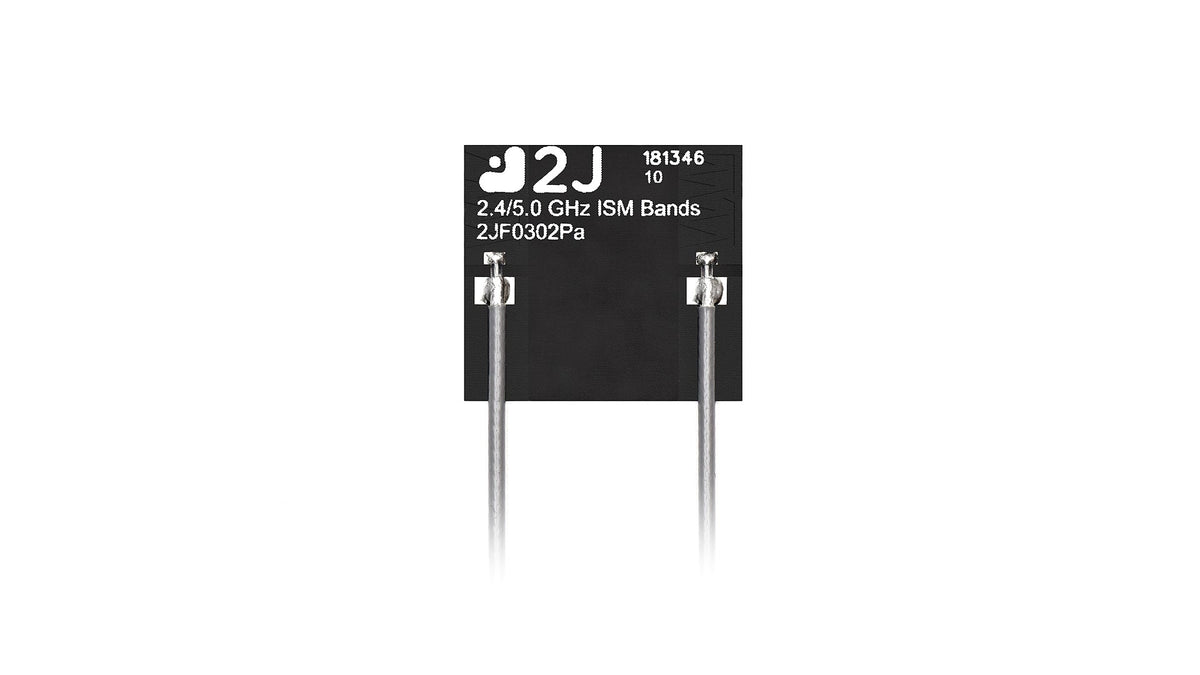

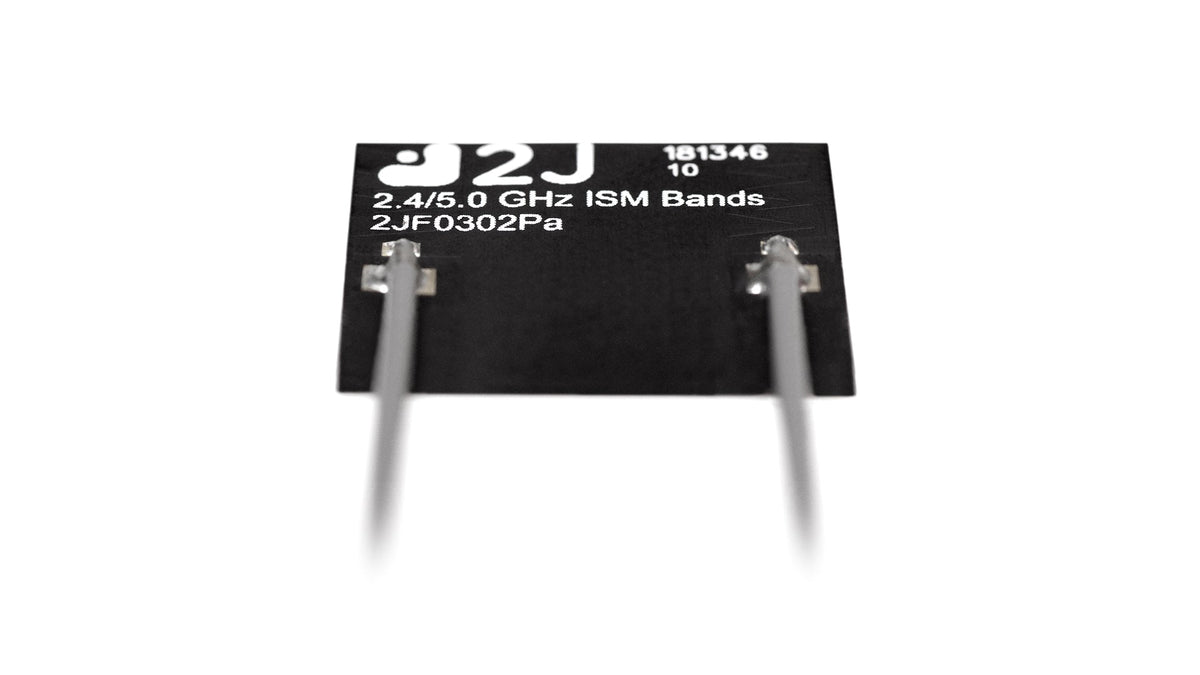

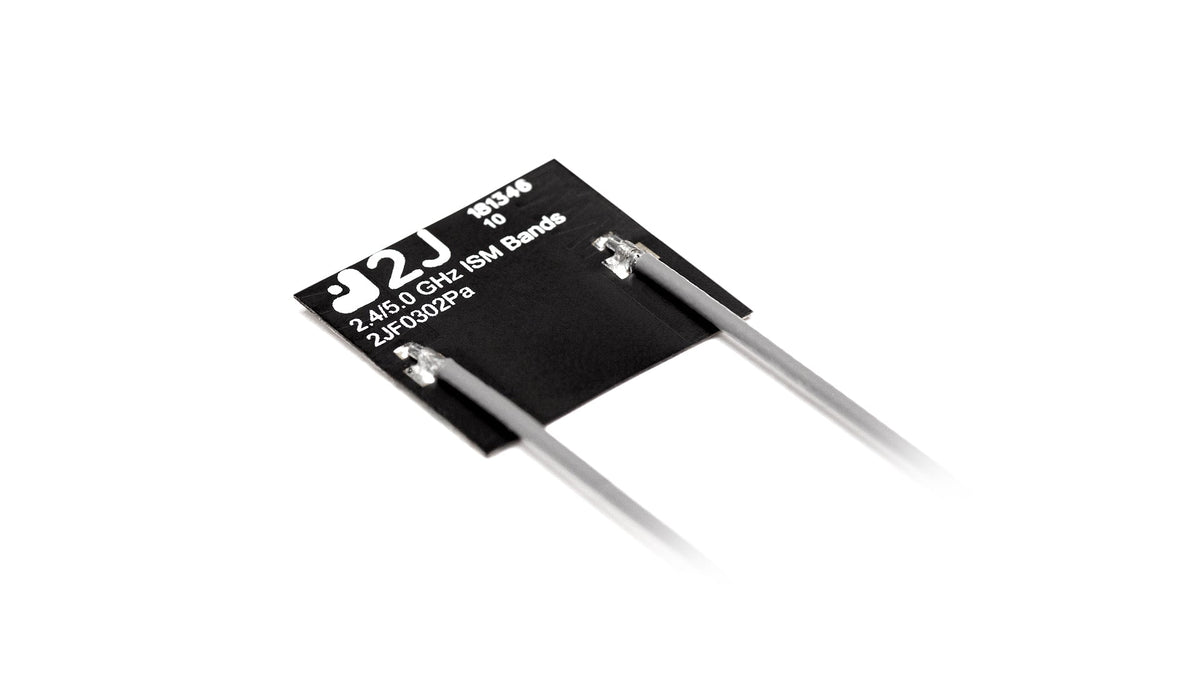

This ultra-compact, flexible adhesive antenna delivers high-performance MIMO connectivity for Wi-Fi 6E/7 and ISM bands. Its ultra-thin PCB design and self-adhesive backing make it ideal for seamless integration into space-constrained devices. The omnidirectional radiation pattern ensures reliable 360° coverage, making it perfect for IoT, automotive, consumer electronics, and industrial applications that demand high data rates and robust wireless connections. The antenna is ground plane independent and supports a wide range of standards including Wi-Fi, Bluetooth, ZigBee, LoRa, and SigFox.
Connections
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: FPC
Location: Internal
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Adhesive Mount Flexible
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Combination
Dimensions: 22.4 x 20.6 x 0.2 mm
Connection 1 - Wi-Fi 6E/7, ISM
Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.4:1, ~2.2:1, ~2.5:1
Efficiency (%): ~53, ~64, ~52.1
Peak Gain (dBi): ~3.2, ~5.0, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Connection 2 - Wi-Fi 6E/7, ISM
Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.4:1, ~2.2:1, ~2.7:1
Efficiency (%): ~55, ~63, ~63
Peak Gain (dBi): ~3.0, ~4.9, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{"model":"2JF0302Pa","manufacturer":"2J Antennas","title":"2 × 2.4/5.0/6.0 GHz ISM Wi-Fi 6E / Wi-Fi 7 MIMO Flexible Adhesive Mount Antenna","mountingType":"Self-Adhesive","dimensions_mm":"22.4 × 20.6 × 0.2","operatingTemperature_c":"-40 to +85","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 x 0.25 cm ABS plate, 100 mm 1.37 mm Mini-Coax cable","elements":[{"elementID":"Connection 1","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM (MIMO 1)","standards":["WiFi 6E","BT","ZigBee","ISM","SigFox","LoRa"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-8.3,"vswr":"2.4:1","efficiency_percent":53,"peakGain_dbi":3.2,"averageGain_db":-2.8},{"range_mhz":"4920-5925","returnLoss_db":-12.6,"vswr":"2.2:1","efficiency_percent":64,"peakGain_dbi":5.0,"averageGain_db":-1.9},{"range_mhz":"5925-7125","returnLoss_db":-7.9,"vswr":"2.5:1","efficiency_percent":52.1,"peakGain_dbi":5.2,"averageGain_db":-3.0}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":10},{"elementID":"Connection 2","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM (MIMO 2)","standards":["WiFi 6E","BT","ZigBee","ISM","SigFox","LoRa"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-8.4,"vswr":"2.4:1","efficiency_percent":55,"peakGain_dbi":3.0,"averageGain_db":-2.8},{"range_mhz":"4920-5925","returnLoss_db":-12.5,"vswr":"2.2:1","efficiency_percent":63,"peakGain_dbi":4.9,"averageGain_db":-1.9},{"range_mhz":"5925-7125","returnLoss_db":-7.0,"vswr":"2.7:1","efficiency_percent":53.0,"peakGain_dbi":5.2,"averageGain_db":-2.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":10}],"connectors":[{"elementIDRef":"Connection 1","type":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":100},{"elementIDRef":"Connection 2","type":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":100}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2jf0302pa.pdf"}
