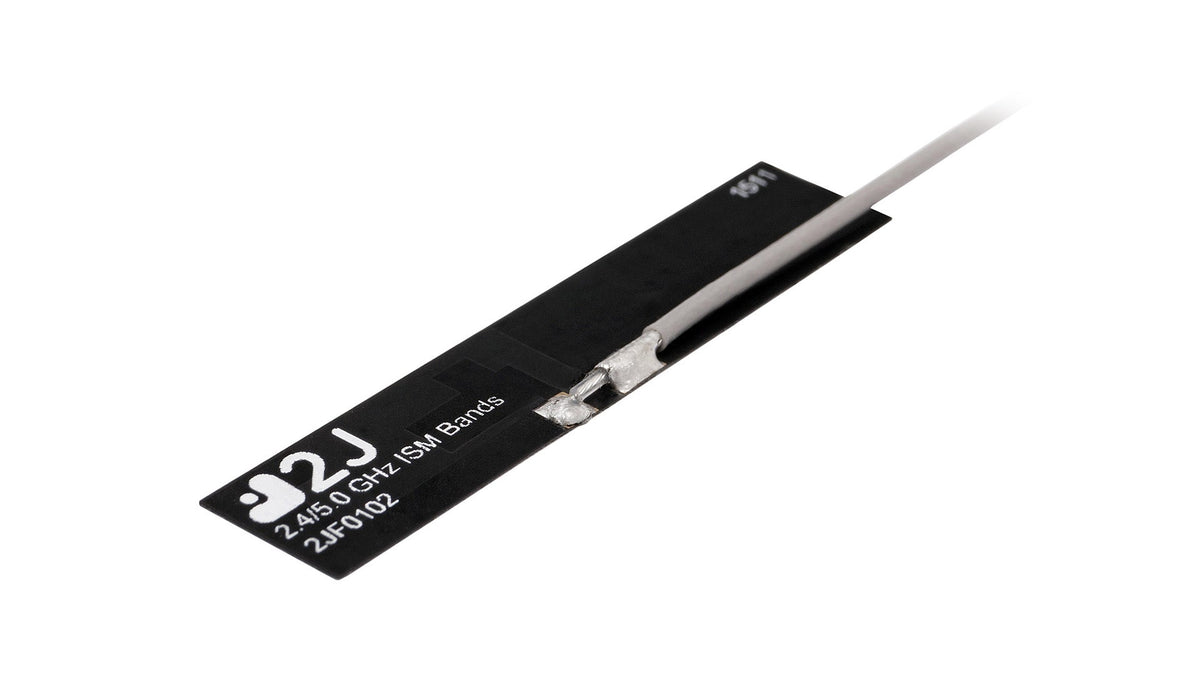

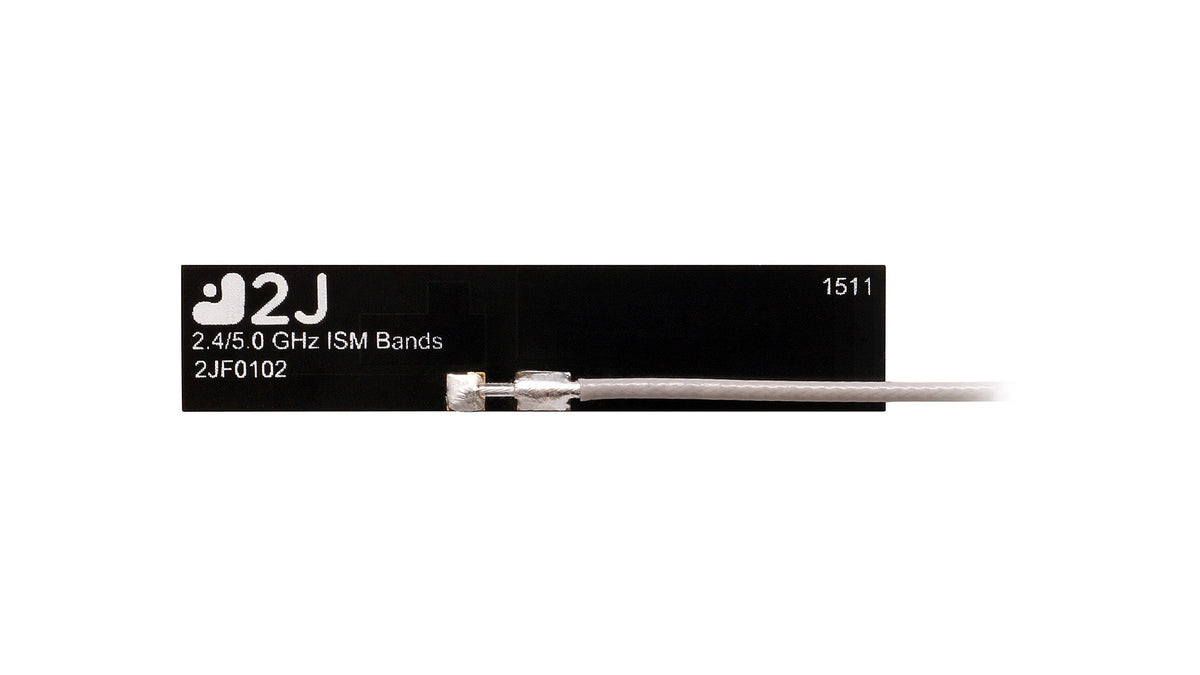

This ultra-thin, flexible adhesive antenna is designed for high-performance Wi-Fi 6E/7 and ISM band applications. Its ground plane independence and compact form factor make it ideal for integration into consumer electronics, robotics, drones, smart home devices, and more. The antenna delivers high efficiency and peak gain, supporting demanding throughput, speed, and reliability requirements for modern wireless systems.
Connections
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Connector & Cable
-
Connector Type: U.FL-Male
-
Cable Length: 15cm
-
Cable Type: MC137
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: FPC
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single
Dimensions: 39.6x 8.4 x 0.1 mm
Connection 1 - Wi-Fi 6E/7, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
VSWR: ~1.2:1, ~1.4:1, ~2.1:1
Efficiency (%): ~76, ~82, ~60.4
Peak Gain (dBi): ~2.2, ~3.8, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{"model":"2JF0102P","manufacturer":"2J Antennas","title":"2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Flexible Ultra-Thin PCB Adhesive Antenna","mountingType":"Self-Adhesive","dimensions_mm":"39.6 × 8.4 × 0.1","operatingTemperature_c":"-40 to +85","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 x 0.25 cm ABS plastic plate","elements":[{"elementID":"Connection 1","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi 6E","BT","ZigBee","ISM","SigFox","LoRa"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-20.8,"vswr":"1.2:1","efficiency_percent":76,"peakGain_dbi":2.2,"averageGain_db":-1.2},{"range_mhz":"4920-5925","returnLoss_db":-15.5,"vswr":"1.4:1","efficiency_percent":82,"peakGain_dbi":3.8,"averageGain_db":-0.8},{"range_mhz":"5925-7125","returnLoss_db":-8.9,"vswr":"2.1:1","efficiency_percent":60.4,"peakGain_dbi":3.2,"averageGain_db":-2.2}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":150}],"datasheetStandard":{"connector":"U.FL/IPEX MHF1","cableType":"1.37 mm Micro-Coax","cableLength_mm":100,"note":"2J datasheet standard; this product is a configured variant (see connectors)"},"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2jf0102p.pdf"}
