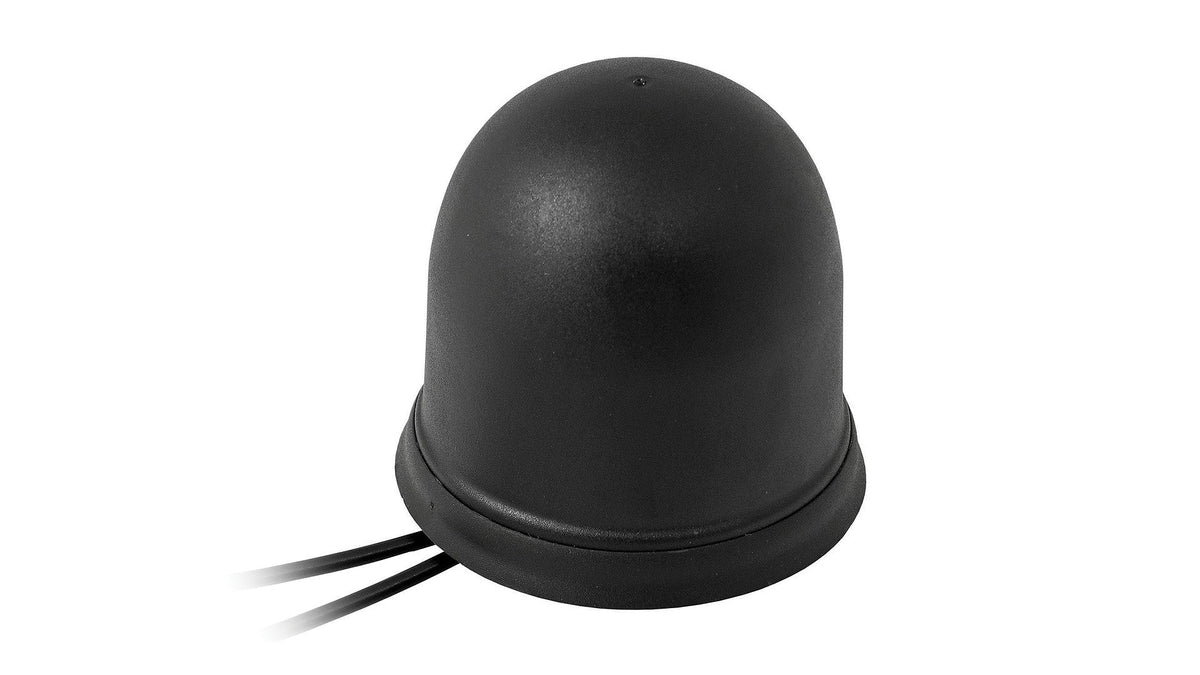

This heavy-duty antenna is designed for reliable performance across 4G/LTE, 3G, and 2G networks. Its robust construction and ground plane dependent design make it ideal for demanding environments where durability and consistent connectivity are essential. The 2-in-1 MIMO configuration ensures enhanced data throughput and signal stability, making it suitable for applications such as mobile and cellular networks, telematics, asset tracking, industrial IoT, and smart city deployments. The antenna is protected with IP67, IK09, and IP69K ratings, ensuring resistance to water, dust, and mechanical impacts.
Connections
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE, 3G, 2G
Location: External

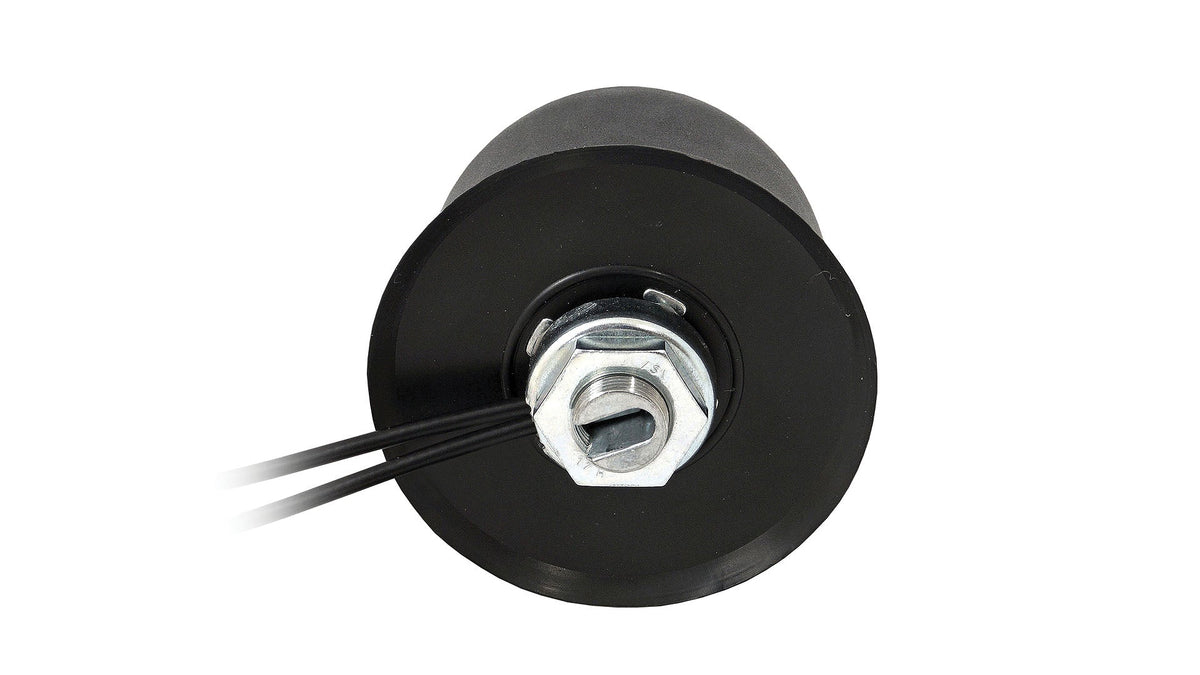

Mounting: Screw Mount
Type: Combination
Dimensions: Ø 77.3 x 65.5 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.8:1, ~1.7:1, ~1.3:1
Efficiency (%): ~35, ~51, ~49
Peak Gain (dBi): ~-0.8, ~2.5, ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.9:1, ~1.4:1, ~1.8:1
Efficiency (%): ~34.2, ~41.1, ~36.7
Peak Gain (dBi): ~-1.0, ~1.7, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{"model":"2J6A24Ba","manufacturer":"2J Antennas","title":"2×4G LTE/3G/2G MIMO Ground Plane Dependent IP67 IK09 IP69K Antenna","mountingType":"Screw Mount","dimensions_mm":"Ø 77.3 × 65.5","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IK09, IP69K","groundPlane":"Dependent","measurementConditions":"Mounted on 30 x 30 cm ground plane, 200 cm DACAR302 cable","elements":[{"elementID":"Connection 1","type":"Cellular / LTE","standards":["2G","3G","4G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":-7.1,"vswr":"2.8:1","efficiency_percent":35.0,"peakGain_dbi":-0.8,"averageGain_db":-4.6},{"range_mhz":"1710-2170","returnLoss_db":-12.2,"vswr":"1.7:1","efficiency_percent":51.0,"peakGain_dbi":2.5,"averageGain_db":-2.9},{"range_mhz":"2500-2700","returnLoss_db":-18.5,"vswr":"1.3:1","efficiency_percent":49.0,"peakGain_dbi":3.4,"averageGain_db":-3.1}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25},{"elementID":"Connection 2","type":"Cellular / LTE","standards":["2G","3G","4G"],"frequencies":[{"range_mhz":"698-960","returnLoss_db":-6.8,"vswr":"2.9:1","efficiency_percent":34.2,"peakGain_dbi":-1.0,"averageGain_db":-4.7},{"range_mhz":"1710-2170","returnLoss_db":-15.8,"vswr":"1.4:1","efficiency_percent":41.1,"peakGain_dbi":1.7,"averageGain_db":-3.9},{"range_mhz":"2500-2700","returnLoss_db":-10.8,"vswr":"1.8:1","efficiency_percent":36.7,"peakGain_dbi":3.2,"averageGain_db":-4.4}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"DACAR302","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"DACAR302","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j6a24ba.pdf"}
