2J | SKU: 2J6702B

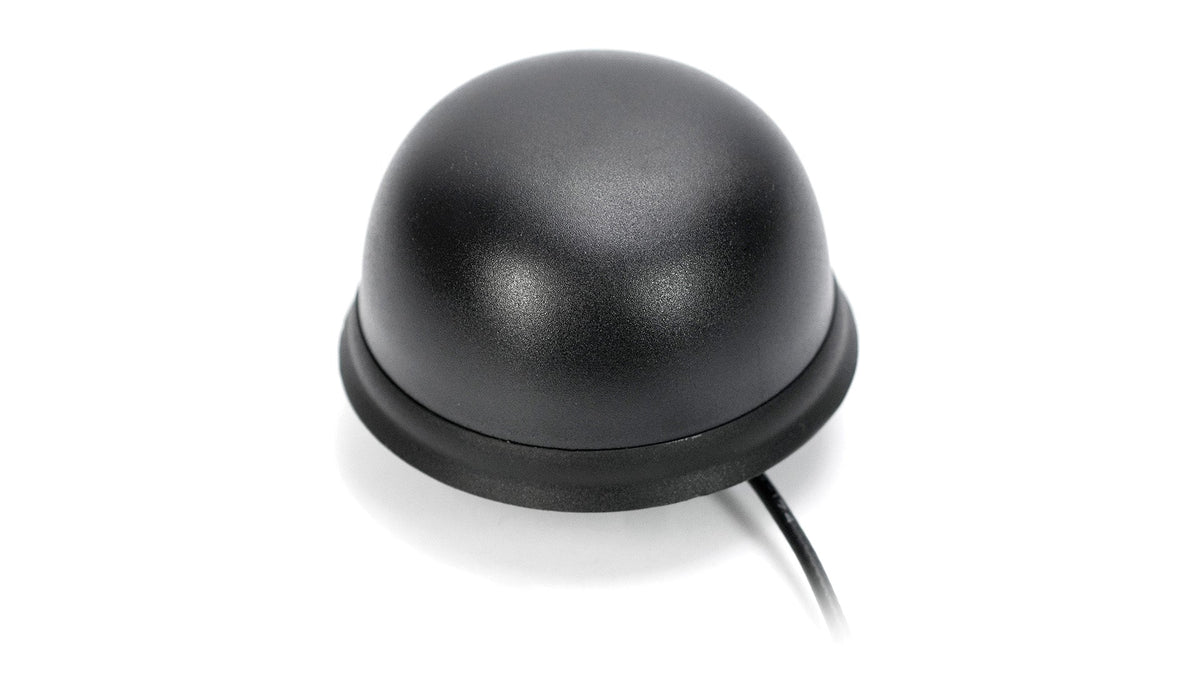

2J6702B Wi-Fi, ISM screw mount Antenna IP67 IP69K

Name: 2J6702B Wi-Fi, ISM screw mount Antenna IP67 IP69K
Brand: 2J
SKU: 2J6702B
Price: 27.6 EUR
Availability: InStock

€27,60

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This heavy-duty antenna is engineered for reliable performance in demanding environments, offering ground plane independence and robust protection against water, dust, and impact. Its anti-rotation screw mount design ensures secure installation, making it ideal for smart home, industrial, transportation, and public Wi-Fi applications. The antenna supports Wi-Fi, Bluetooth, ZigBee, and ISM bands, providing versatile connectivity for a wide range of wireless devices and IoT solutions.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External

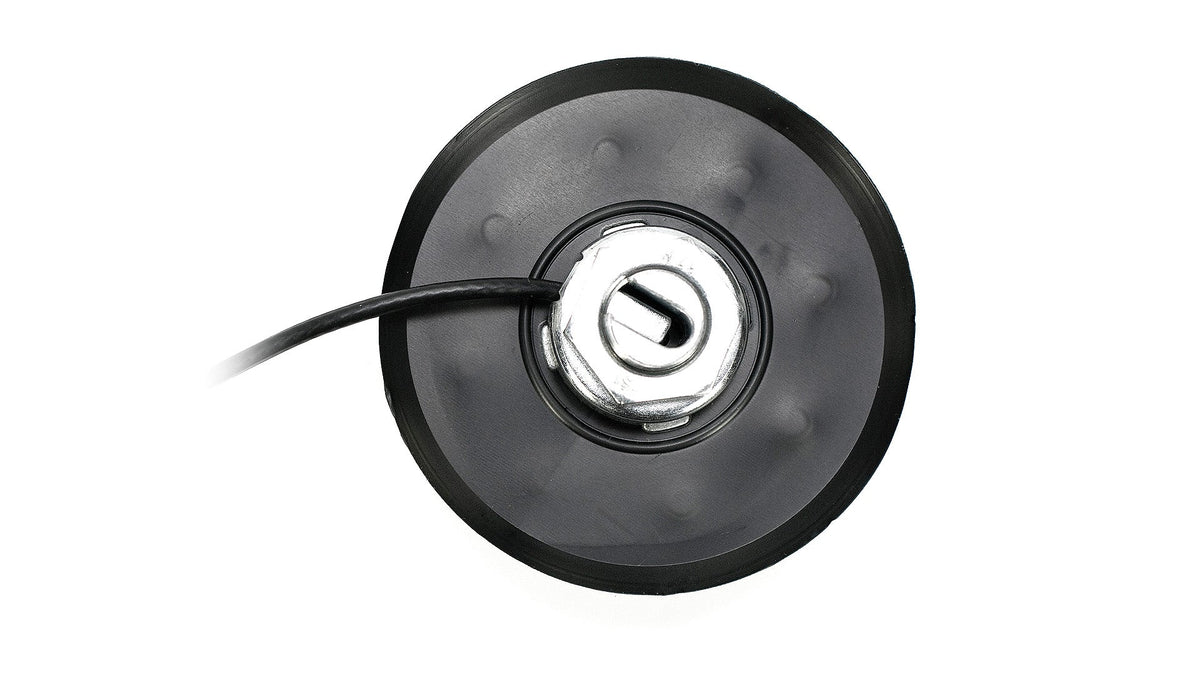

Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
Dimensions: Ø 77.3 x 36.5 mm

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~40.6, ~21.8
Peak Gain (dBi): ~1.9, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2J6702B","manufacturer":"2J Antennas","title":"WiFi ISM Ground Plane Independent Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"77.3 × 36.5","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69K, IK10","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm ground plane, 200 cm D302 cable","elements":[{"elementID":"Connection 1","type":"2.4 / 5.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-12.4,"vswr":"1.7:1","efficiency_percent":40.6,"peakGain_dbi":1.9,"averageGain_db":-3.9},{"range_mhz":"4920-5925","returnLoss_db":-13.4,"vswr":"1.6:1","efficiency_percent":21.8,"peakGain_dbi":1.6,"averageGain_db":-6.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"RP-SMA male","cableType":"D302","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j6702b.pdf"}
