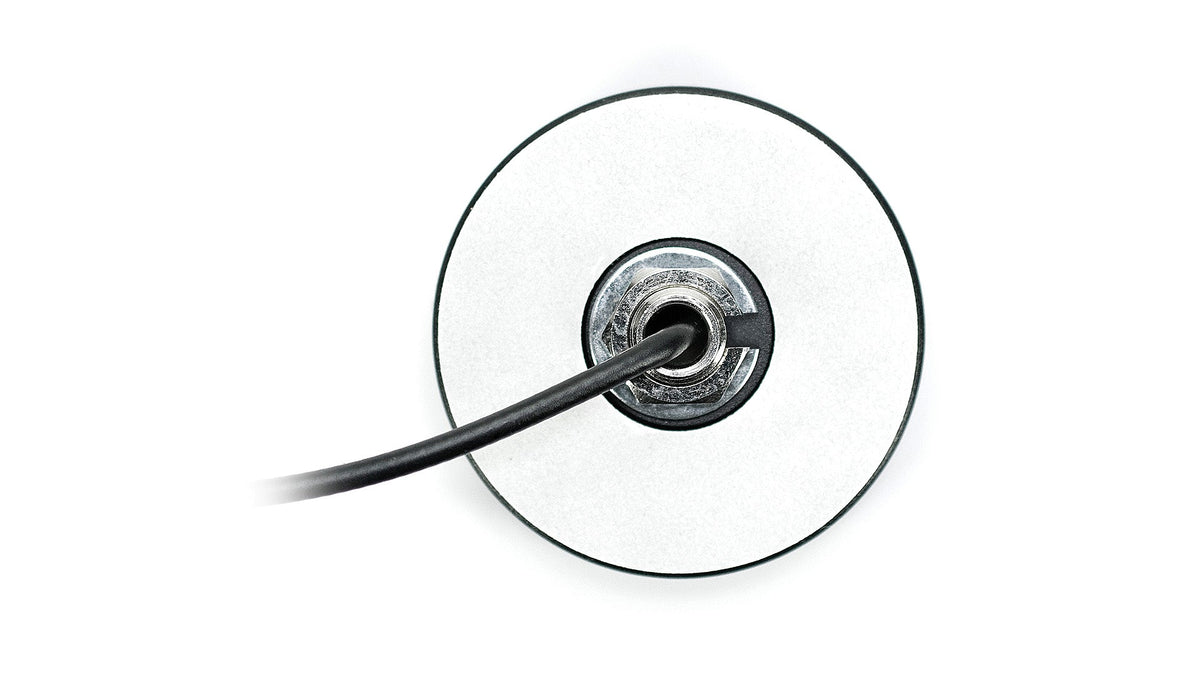

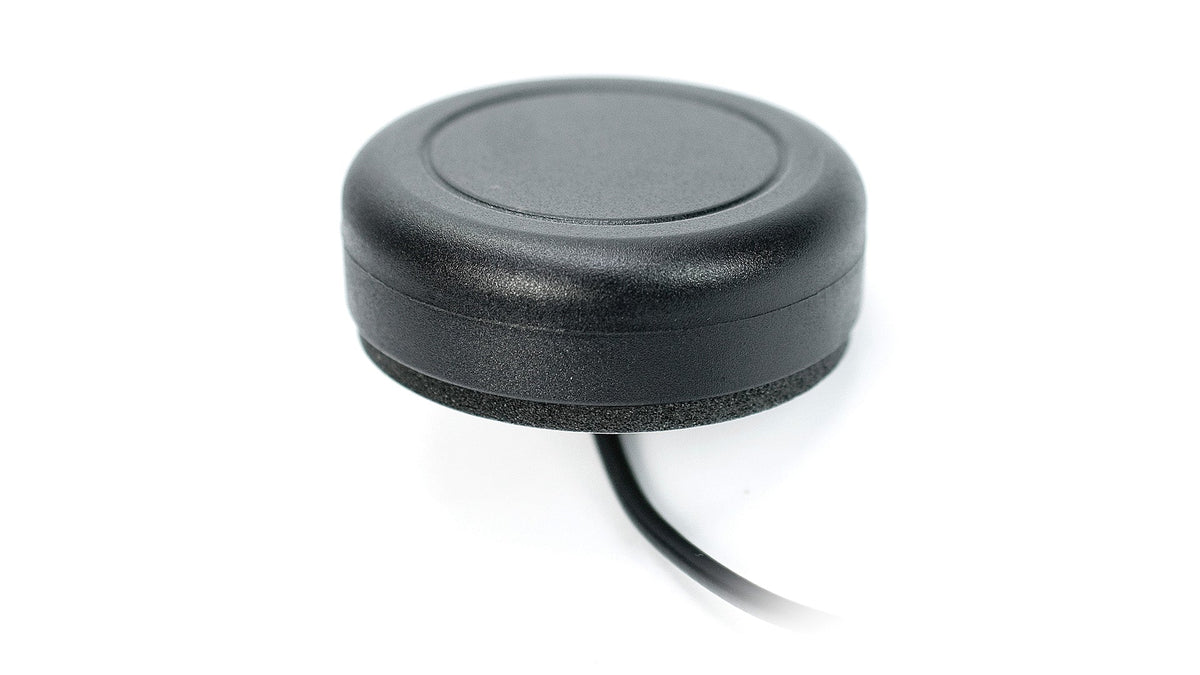

This low-profile antenna is designed for reliable performance in the 868 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust screw mount design and IP67/IP69 protection ensure durability in harsh environments. The antenna is ground plane independent and offers customizable cable and connector options to suit a wide range of installation requirements.
Connections
868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
Connector & Cable
-
Connector Type: SMA Male
-
Cable Length: 300cm
-
Cable Type: LL100
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: Ø 52 x 17.5 mm
Connection 1 - 868 MHz ISM
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.2:1
Efficiency (%): ~33.4
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{"model":"2J4715B-868","manufacturer":"2J Antennas","title":"868 MHz ISM Low Profile Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"Ø 52 × 17.5","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 x 0.25 cm metal plate, 200 cm RG174 cable","elements":[{"elementID":"Connection 1","type":"868 MHz ISM","standards":["ZigBee","ISM","SIGFOX","LoRa"],"frequencies":[{"range_mhz":"863-870","returnLoss_db":-21.3,"vswr":"1.2:1","efficiency_percent":33.4,"peakGain_dbi":2.6,"averageGain_db":-4.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"LL100","cableLength_mm":3000}],"datasheetStandard":{"connector":"SMA male","cableType":"RG174","cableLength_mm":3000,"note":"2J datasheet standard; this product is a configured variant (see connectors)"},"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j4715b-868.pdf"}
