2J  |  SKU: 2J4702B

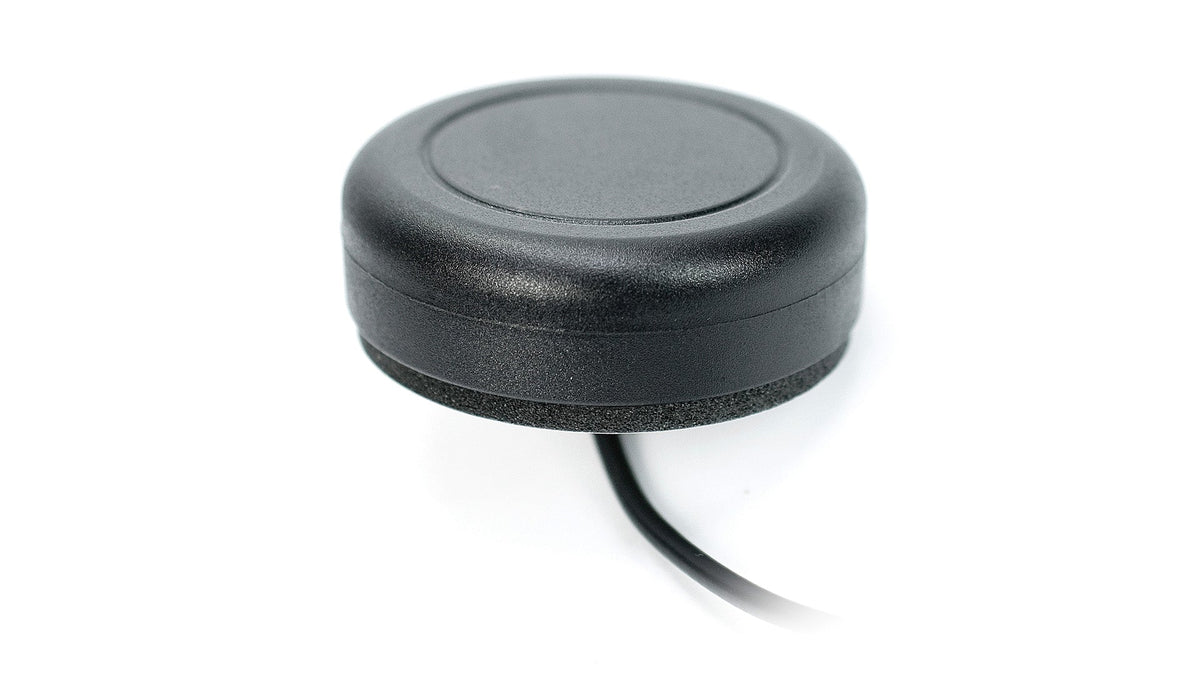

2J4702B Wi-Fi 6E/7, ISM screw mount Antenna SMA-M 300cm IP69

€9,78
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile antenna is engineered for next-generation wireless applications, supporting Wi-Fi 6E/7, ISM, Bluetooth, ZigBee, SigFox, and LoRa standards. Its robust design ensures reliable high-speed connectivity, low latency, and optimal efficiency, making it ideal for demanding environments such as IoT devices, automation, consumer electronics, gaming, AR/VR, and industrial applications. The antenna delivers strong signal quality and high bandwidth, even in crowded networks, and is backward compatible for seamless integration with existing devices.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

  • Connector Type: SMA-M
  • Cable Length: 300cm
  • Cable Type: RG174

Installation / Environmental

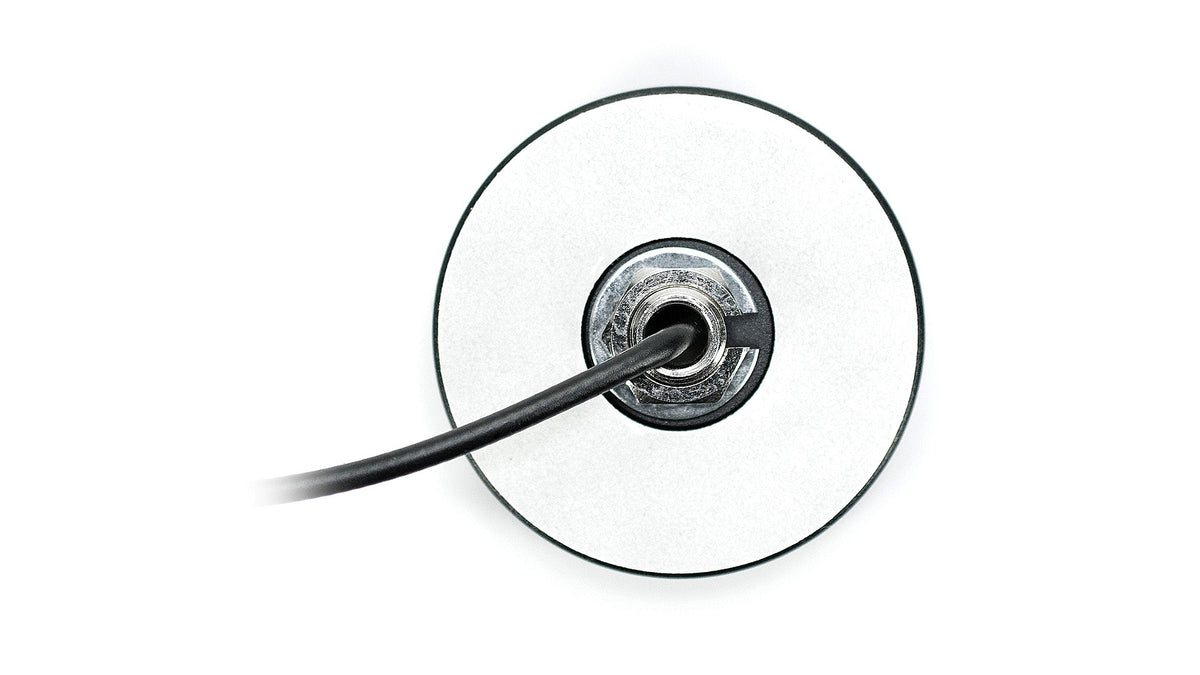

The 2J4702B is designed with a compact dimension of 52 x 17.5 mm and comes with a screw mount. This antenna is manufactured with high-grade IP69 ASA UV stable material that has a strong resistance to corrosive chemicals and/or physical impacts making it extremely durable in temperatures ranging between -40C and +85C. The IP69 rating provides protection against water, chemicals, high pressure and high temperature. This low-profile form factor antenna is ground plane dependent. The 2J4702B is delivered with a standard RF-SMA-Male connector and a standard 300 cm RG174 cable. The antenna comes with a selection of customized extension cable lengths and connector types. This antenna is manufactured without any hazardous materials while maintaining full REACH and RoHS compliance.


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Screw Mount
Type: Single
Dimensions: 52 × 17.5 mm

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.5:1, ~1.5:1, ~2.1:1
Efficiency (%): ~35.8, ~28.4, ~25.2
Peak Gain (dBi): ~3.5, ~2.9, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2J4702B","manufacturer":"2J Antennas","title":"Beetle 2.4/5.0/6.0 GHz WiFi 6E / WiFi 7 ISM Low Profile IP69 Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"Ø 52 × 17.5","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69","groundPlane":"Dependent","measurementConditions":"Mounted on 30 x 30 cm metal plate, 100 cm RG174 cable","elements":[{"elementID":"Connection 1","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-7.4,"vswr":"2.5:1","efficiency_percent":35.8,"peakGain_dbi":3.5,"averageGain_db":-4.5},{"range_mhz":"4920-5925","returnLoss_db":-14.9,"vswr":"1.5:1","efficiency_percent":28.4,"peakGain_dbi":2.9,"averageGain_db":-5.5},{"range_mhz":"5925-7125","returnLoss_db":-9.6,"vswr":"2.1:1","efficiency_percent":25.2,"peakGain_dbi":2.9,"averageGain_db":-6.2}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"RG174","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j4702b.pdf"}
