2J | SKU: 2J0B24-C884G

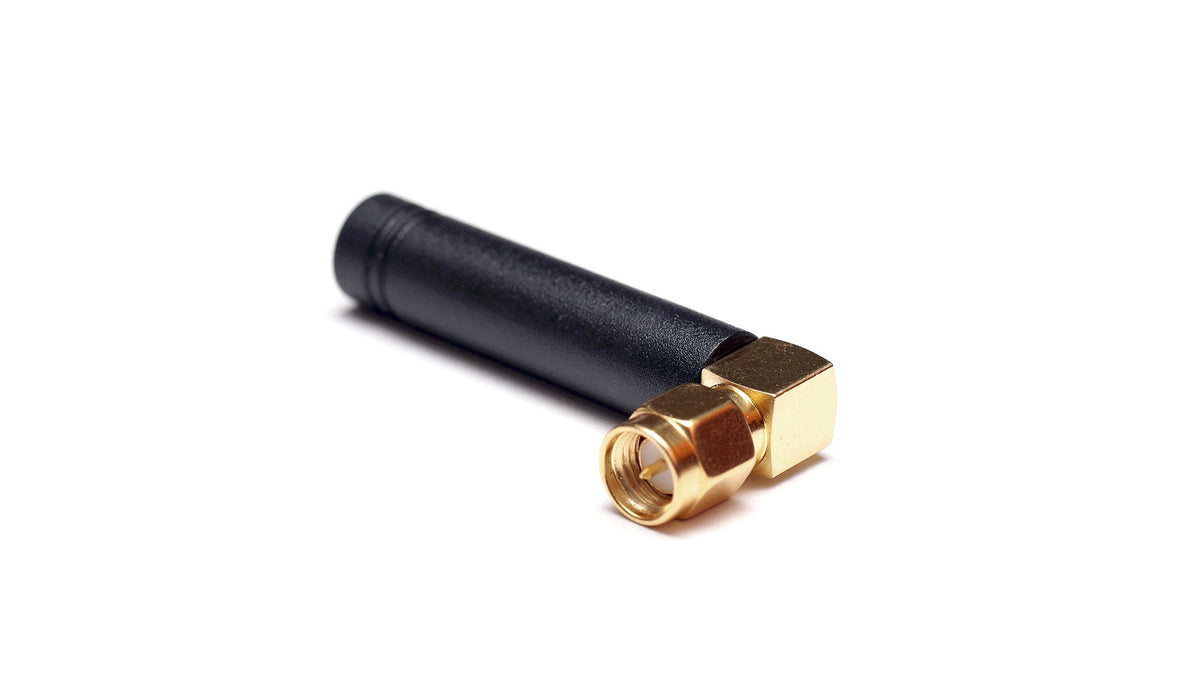

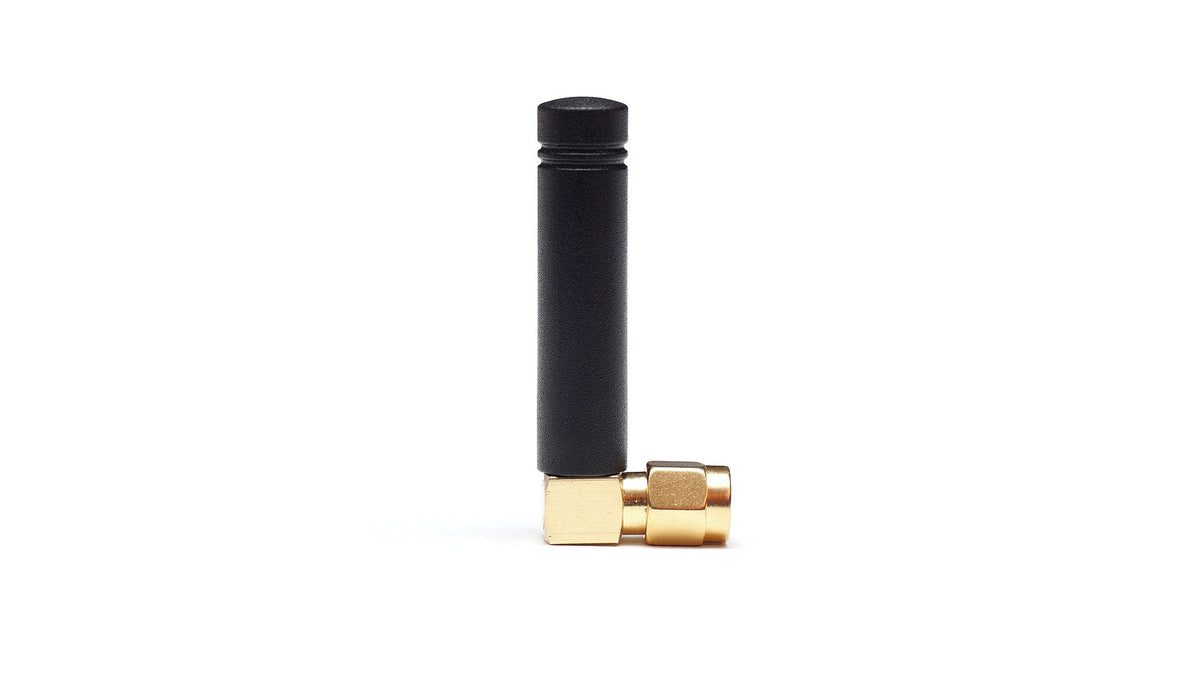

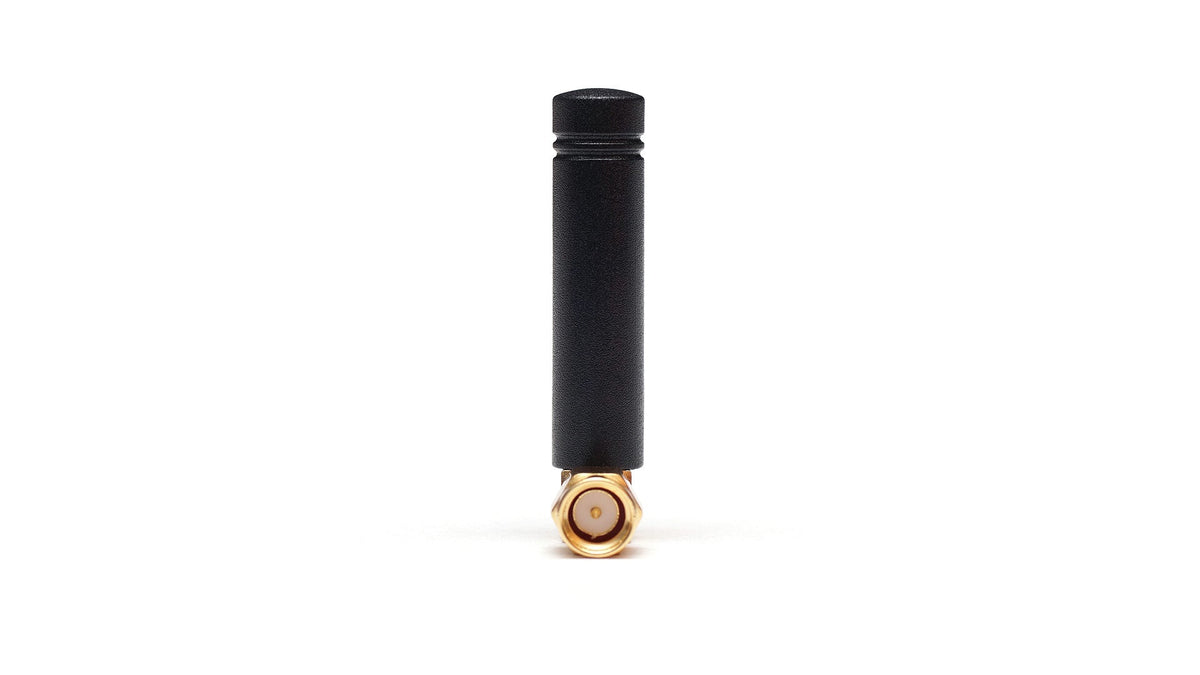

2J0B24-C884G 4G/LTE connector mount Antenna SMA-Male

Name: 2J0B24-C884G 4G/LTE connector mount Antenna SMA-Male
Brand: 2J
SKU: 2J0B24-C884G
Price: 4.36 EUR
Availability: InStock

€4,36

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact connector mount antenna delivers reliable 4G LTE, 3G, and 2G cellular connectivity in a small, right-angle form factor. Designed for space-constrained installations, it ensures high efficiency and stable performance for applications such as HD video transmission, dash cameras, fleet management, LTE routers, and IoT devices. The antenna supports a wide range of cellular standards, making it ideal for devices requiring constant, uninterrupted connectivity across multiple frequency bands.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

Connector Type: SMA-Male

Installation / Environmental

This series is available in two configurations: a straight, right-angle with a SMA-Male standard connector allowing the mounting in any space restriction installation. For direct sunlight applications, the production material used is black ABS UV stable, protecting the antenna from a temperature of -40°C to 85°C. This antenna was built with a complete RoHS compliance manufacturing process.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 44 x 19.1 × 9 mm

Connection 1 - 4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, LTE (NB-IoT)
Frequency (MHz): 698-960, 1710-2170, 2500-2700
VSWR: ~3.0:1, ~2.7:1, ~5.4:1
Efficiency (%): ~65.5, ~55.6, ~11.1
Peak Gain (dBi): ~0.9, ~1.6, ~-6.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model": "2J0B24-C884G", "manufacturer": "2J Antennas", "title": "4G LTE 3G 2G Wideband Right Angle Cellular Connector Mount Antenna", "mountingType": "Connector Mount", "dimensions_mm": "44 × 19.1 × 9", "operatingTemperature_c": "-40 to +85", "groundPlane": "Dependent", "measurementConditions": "Mounted on ground plane of 115 x 45 mm", "elements": [{"elementID": "Connection 1", "type": "Cellular / LTE", "standards": ["GSM", "CDMA", "DCS", "PCS", "GPRS", "WCDMA", "UMTS", "HSPA", "EVDO", "LTE"], "frequencies": [{"range_mhz": "698-960", "returnLoss_db": -6.6, "vswr": "3.0:1", "efficiency_percent": 65.5, "peakGain_dbi": 0.9, "averageGain_db": -1.9}, {"range_mhz": "1710-2170", "returnLoss_db": -7.7, "vswr": "2.7:1", "efficiency_percent": 55.6, "peakGain_dbi": 1.6, "averageGain_db": -2.6}, {"range_mhz": "2500-2700", "returnLoss_db": -3.3, "vswr": "5.4:1", "efficiency_percent": 11.1, "peakGain_dbi": -6.2, "averageGain_db": -10.0}], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25}], "connectors": [{"elementIDRef": "Connection 1", "type": "SMA male (right angle)"}], "typicalValues": true, "source": "https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j0b24-c884g.pdf"}
