2J | SKU: 2J0902-C115N

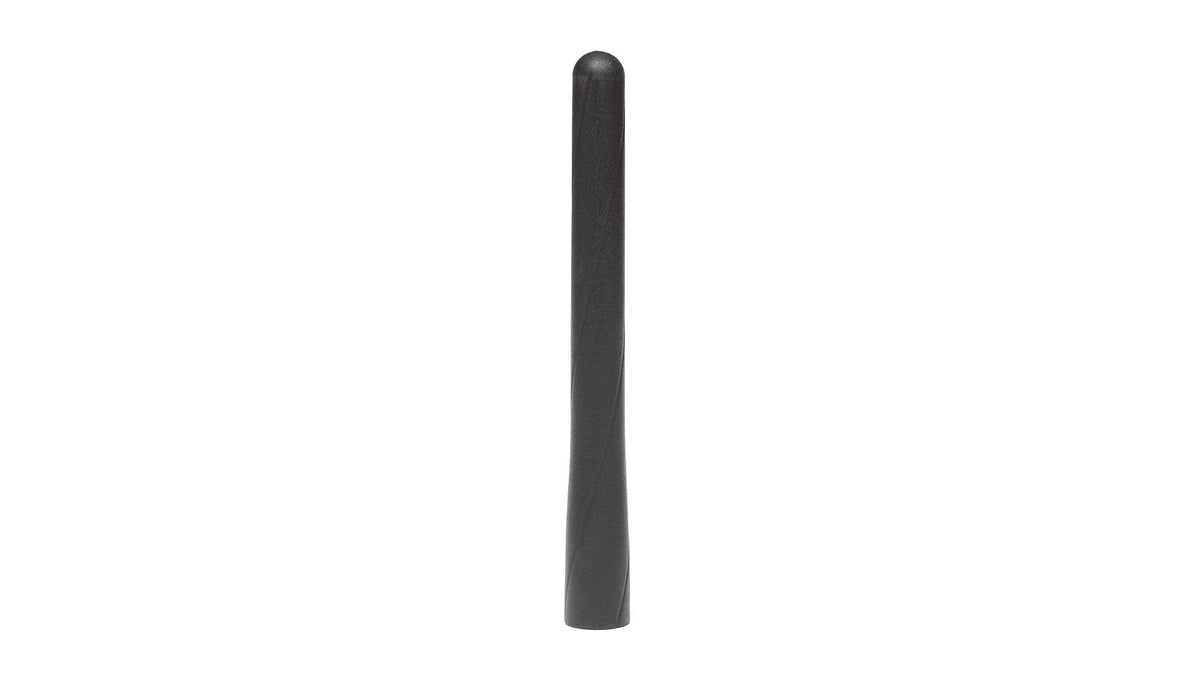

2J0902-C115N Wi-Fi 6E/7, ISM dipole Antenna connector mount RPSMA-M

Name: 2J0902-C115N Wi-Fi 6E/7, ISM dipole Antenna connector mount RPSMA-M
Brand: 2J
SKU: 2J0902-C115N
Price: 3.28 EUR
Availability: InStock

€3,28

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance tri-band antenna delivers reliable Wi-Fi 6E/7 and ISM connectivity across 2.4, 5.0, and 6.0 GHz bands. Its ground plane independent design ensures excellent signal strength and omni-directional coverage, making it ideal for access points, routers, wireless bridges, and IoT devices. The antenna is compact, easy to install, and built with durable, UV-stable materials for long-lasting outdoor use. Applications include smart home, automation, telematics, mobile devices, and more.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

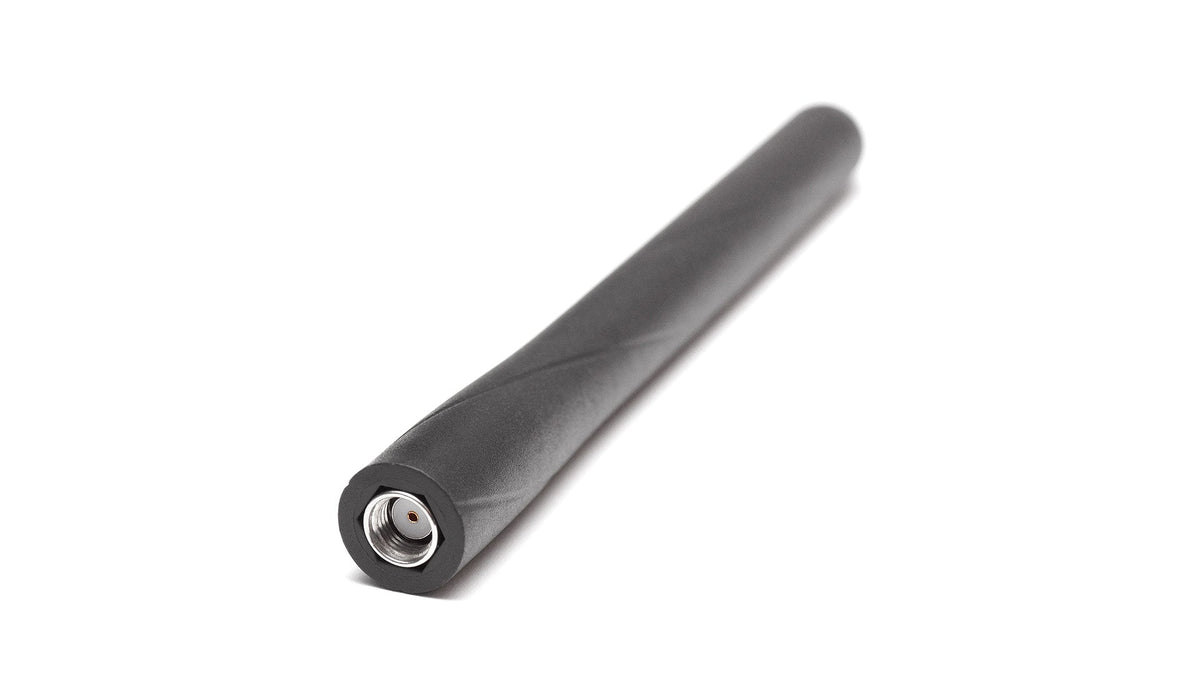

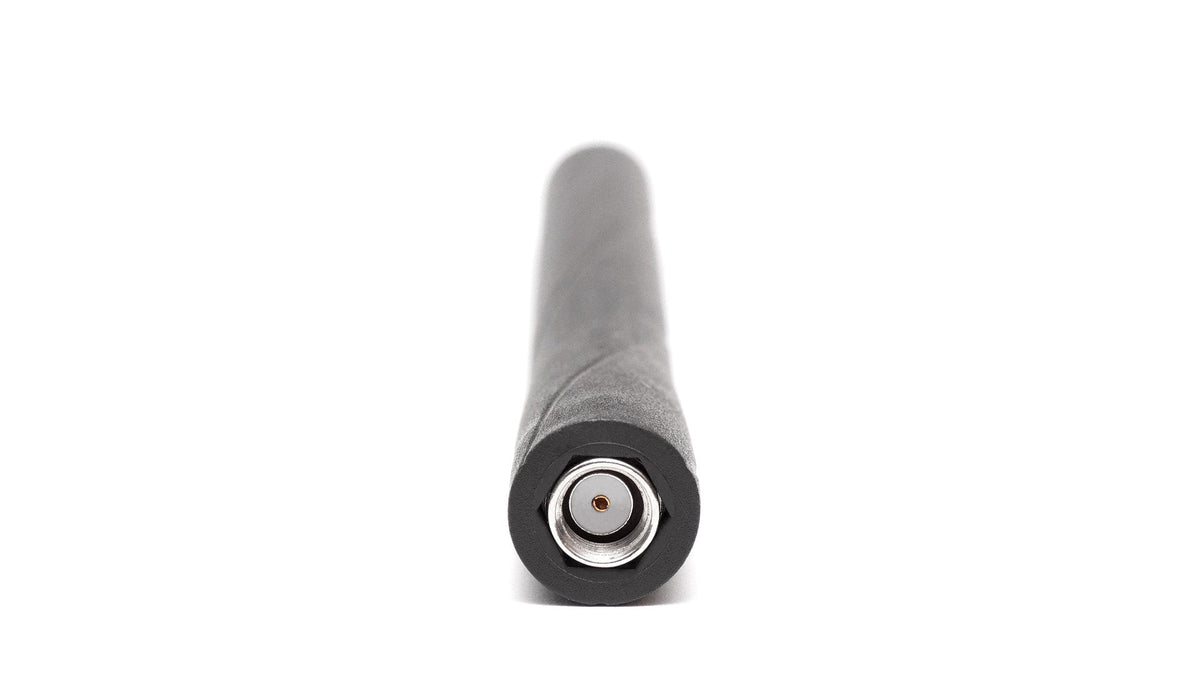

Connector Type: RPSMA-Male

Installation / Environmental

It is ground plane independent making it suitable for vehicles and areas with non-metallic surfaces where no ground plane is available. The installation is very easy by simply mounting the antenna with a connector. High quality soldered terminations of RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum. The 2J0902-C115N comes with a standard RP-SMA-Male connector. This antenna is manufactured with high-grade ASA UV stable that is anti-corrosive material and is resistant to physical impacts making it extremely durable in temperatures ranging between -40C and +85C ideal for outdoor applications.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: Ø 13.2 × 115.7 mm

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~0.9:1, ~1.4:1, ~3.2:1
Efficiency (%): ~72.0, ~72.5, ~52.3
Peak Gain (dBi): ~3.5, ~7.2, ~7.0
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{"model":"2J0902-C115N","manufacturer":"2J Antennas","title":"Tri Band WiFi 6E / WiFi 7 ISM Dipole Connector Antenna","mountingType":"Connector Mount","dimensions_mm":"Ø 13.2 × 115.7","operatingTemperature_c":"-40 to +85","ipRating":"IPX7","groundPlane":"Independent","measurementConditions":"Free Space","elements":[{"elementID":"Connection 1","type":"2.4 / 5.0 / 6.0 GHz Wi-Fi / ISM","standards":["WiFi","BT","ZigBee","ISM"],"frequencies":[{"range_mhz":"2410-2490","returnLoss_db":-13.5,"efficiency_percent":72.0,"peakGain_dbi":3.5,"averageGain_db":-0.8},{"range_mhz":"4920-5925","returnLoss_db":-14.1,"vswr":"1.4:1","efficiency_percent":72.5,"peakGain_dbi":7.2,"averageGain_db":-1.1},{"range_mhz":"5925-7125","returnLoss_db":-7.6,"vswr":"3.2:1","efficiency_percent":52.3,"peakGain_dbi":7.0,"averageGain_db":-2.7}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":25}],"connectors":[{"elementIDRef":"Connection 1","type":"RP-SMA male"}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j0902-c115n.pdf"}
