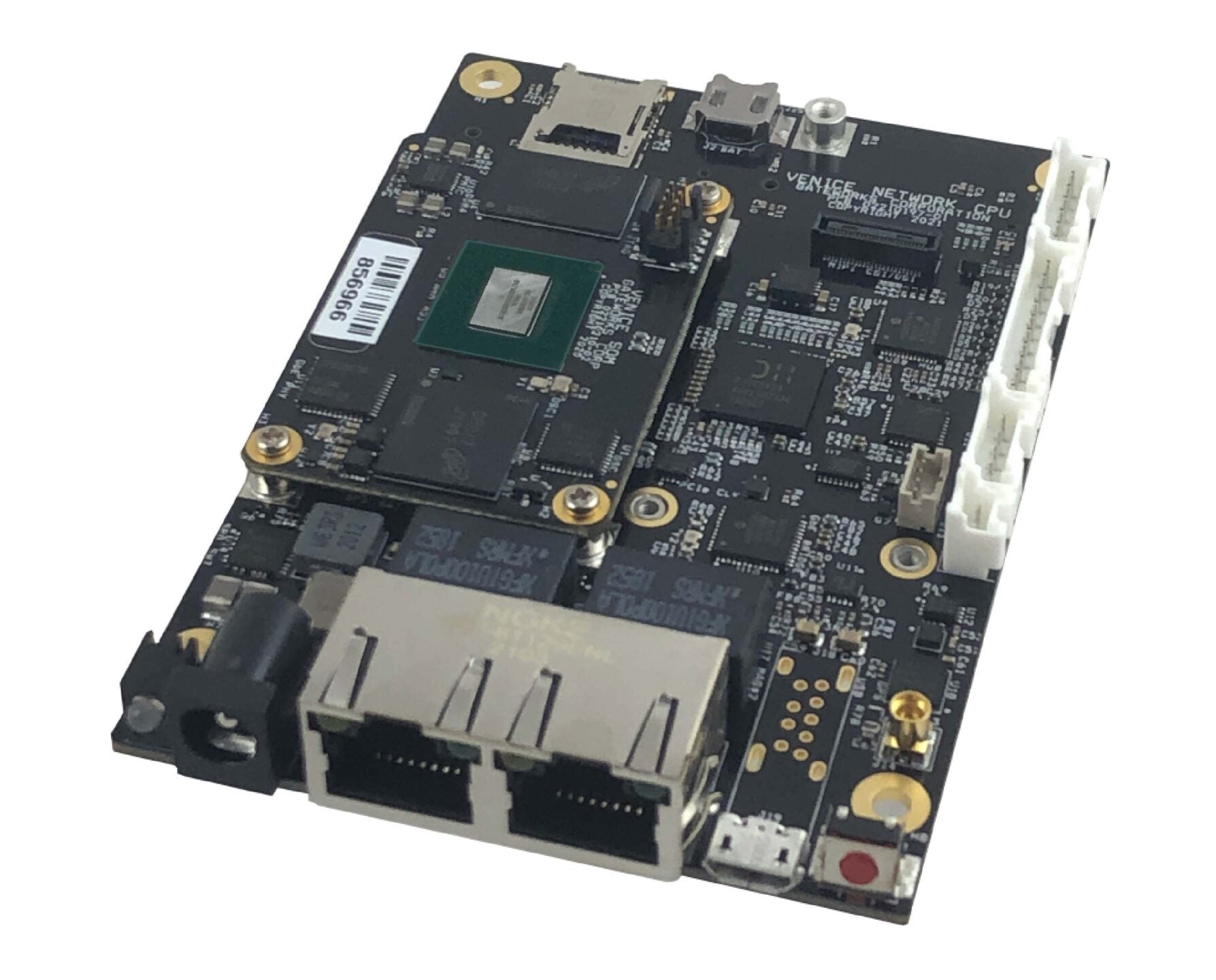

Gateworks Venice GW7200-00 Single Board Computer 64-bit NXP™ i.MX8M Mini Quad Core ARM® Cortex™-A53 SoC processor
GATEWORKS PART #: GW7200-00
Gateworks Venice GW7200-00 – Rugged IoT & Industrial Single Board Computer
Compact. Rugged. Powerful.
The Gateworks Venice GW7200-00 is more than just a single board computer – it’s a reliable partner for the most demanding industrial and embedded applications.
With an ultra-compact footprint of only 70 x 100 mm, it delivers impressive processing power, connectivity, and flexibility in the smallest of spaces.
Key Features & Benefits:
-
High performance, low power: Powered by a 64-bit NXP™ i.MX8M Mini or Plus Quad-Core ARM® Cortex™-A53 CPU at 1.6 GHz – delivering the performance modern IoT, automation, and communications solutions demand, with just 6 W typical consumption.
-
Maximum expandability: Two high-power Mini-PCIe Gen 2 slots for Wi-Fi (802.11ax/ac/b/g/n), cellular (5G/4G/3G), or other PCIe add-ons.
-
Versatile connectivity: Digital I/O, analog ports, RS232/RS485, I²C, SPI, plus MIPI-DSI/CSI for camera and display applications – all onboard.
-
Flexible power options: Power over Ethernet (PoE, 802.3af/at active or passive) or DC input – adaptable to any installation environment.
-
Optional integrated GPS: Ideal for mobile systems, fleet tracking, and location-aware applications.
-
Industrial-grade security: Optional TPM 2.0 module for cryptography, authentication, and system integrity.
Built for Extreme Environments:
-
Operating temperature: -40 °C to +85 °C
-
MTBF: 31+ years at 55 °C
-
Designed to thrive in outdoor installations, vehicles, and harsh industrial settings.
Applications:
-
Industrial automation
-
IoT gateways & edge computing
-
Communications & surveillance systems
-
Vehicle & fleet management
-
Remote monitoring & smart city solutions
Why Choose the GW7200:
In a world where space, efficiency, and reliability are critical, the Venice GW7200 offers the perfect combination of compact design, industrial durability, and powerful expandability.
With Ubuntu Linux pre-installed and full support for OpenWrt, Yocto, and Buildroot, developers have total control – from prototyping to mass production.
Small in size. Big on performance.
The Venice GW7200 – your key to robust, future-proof embedded solutions.
Technical Highlights:
-
Weight: 4 oz (113 g)
-
Dimensions: 70 × 100 mm
-
Power consumption: 6 W typical at 25 °C
-
Multiple I/O and expansion options
-
PoE and DC power input
