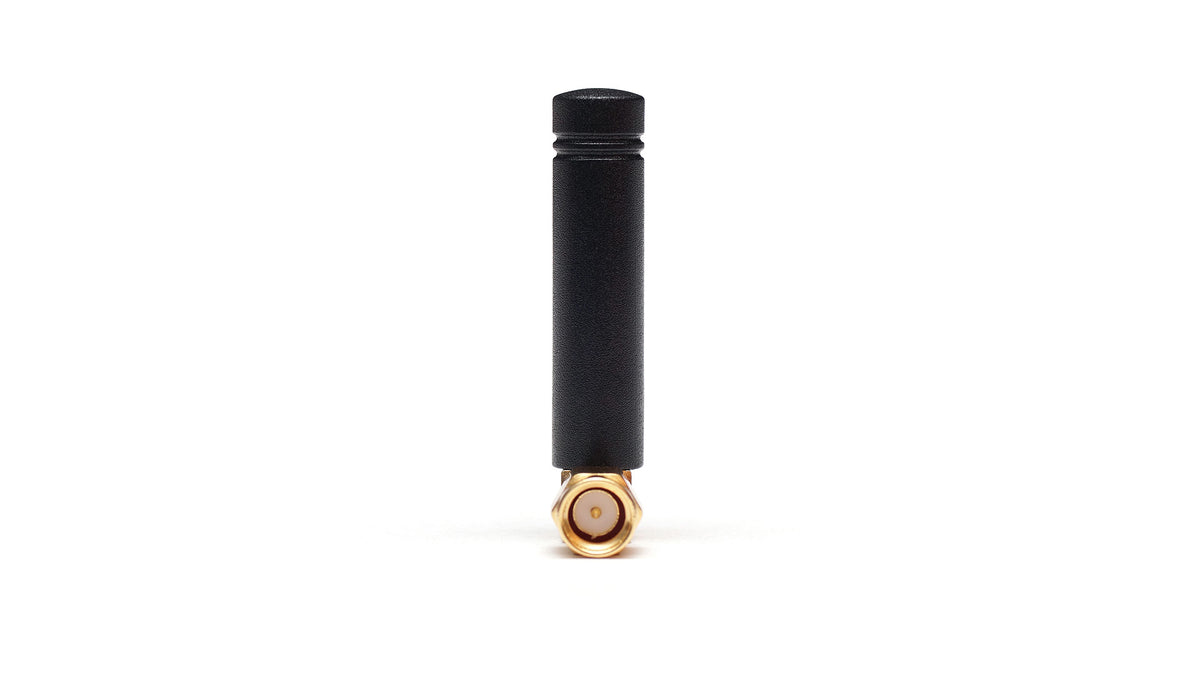

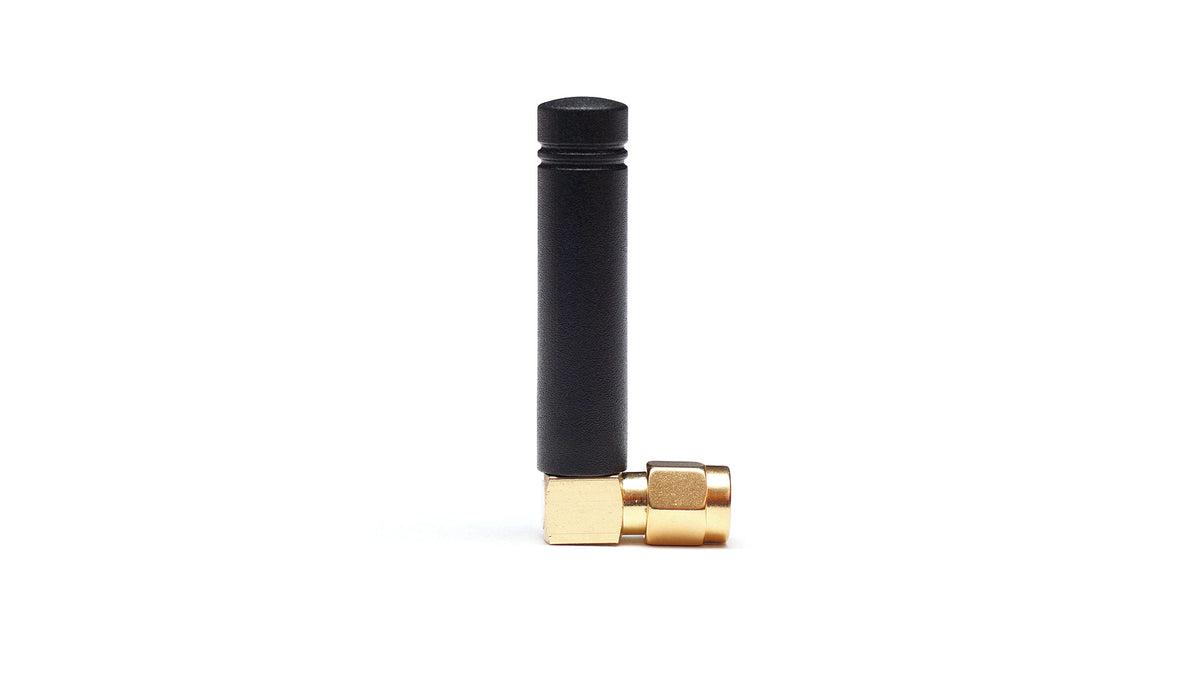

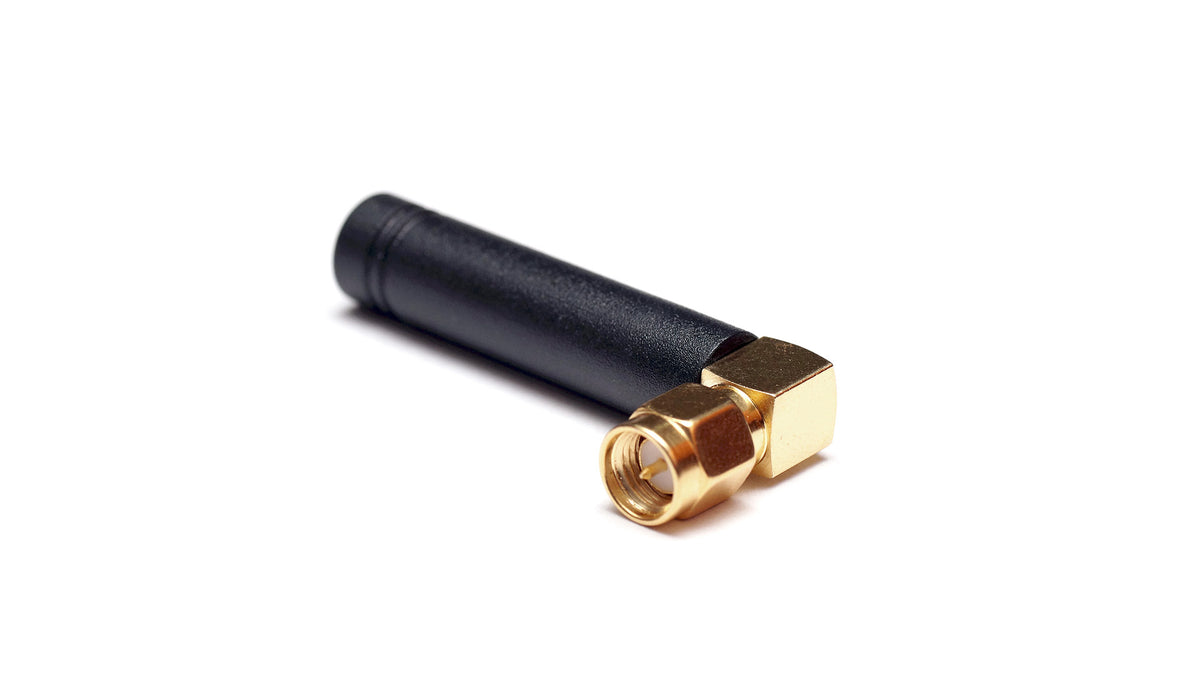

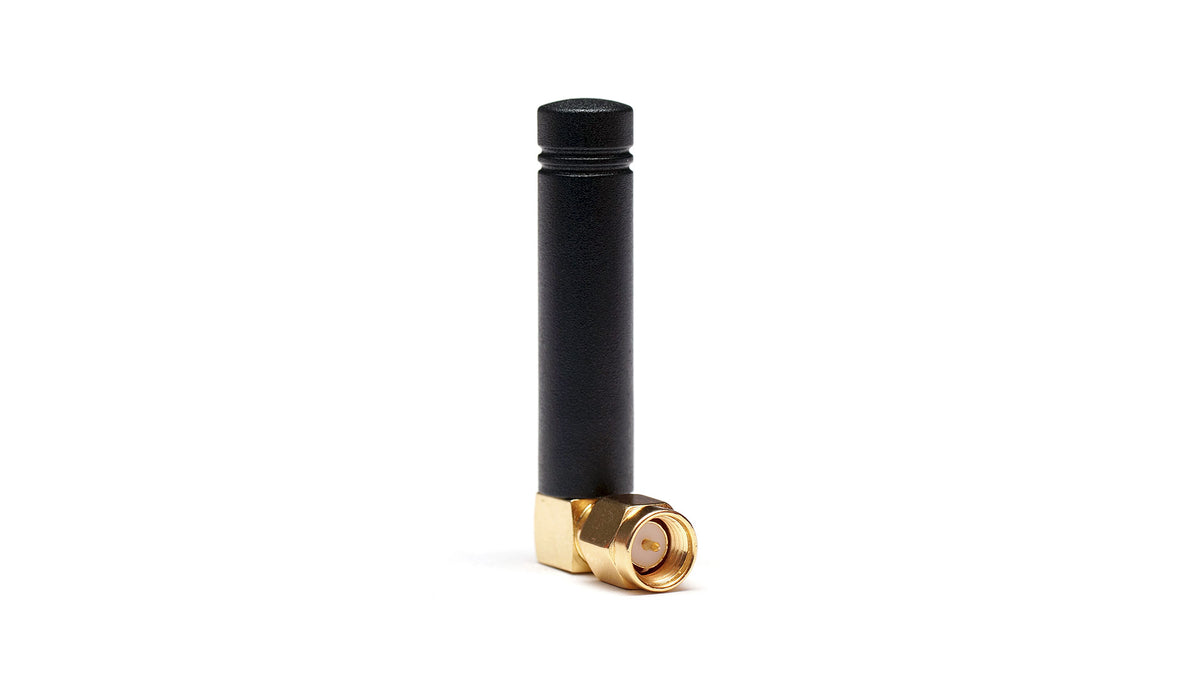

The 2J0B04W-C884G_CU010375 is a Cellular Low Profile Right Angle Smart Antenna from 2J Antennas. It uses a connector mount design with dimensions 44 × 19.1 × 9. Key attributes include Monopole Antenna, Ground Plane Dependent, 2.9 dBi 3G 2G Peak Gain, Small Form Factor, Right-Angle Connector. Suitable for IoT, industrial, telematics, and wireless connectivity applications.
Connections
3G / 2G / Cellular
Connector & Cable
- Connector Type: SMA-Male R/A
- White radome / white cable variant
- Custom/configured order code (_CU*) — media/datasheet from base catalog product
Installation / Environmental
Operating temperature: -40 °C to +85 °C. Mounting: Connector Mount. Standard colors: Black White.
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Connector Mount
Dimensions: 44 × 19.1 × 9 mm
Connection 1 — 3G / 2G / Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170
VSWR: ~2.2:1, ~2.4:1
Efficiency (%): ~70.6, ~56.4
Peak Gain (dBi): ~2.9, ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Key Features
- Monopole Antenna
- Ground Plane Dependent
- 2.9 dBi 3G 2G Peak Gain
- Small Form Factor
- Right-Angle Connector
- Applications Cellular & Wireless Industrial & Automation
Product family reference: 2J0B04-C884G. Configuration SKU: 2J0B04W-C884G_CU010375.
2J0B04W-C884G_CU010375 Cellular Low Profile Right Angle Smart Antenna
