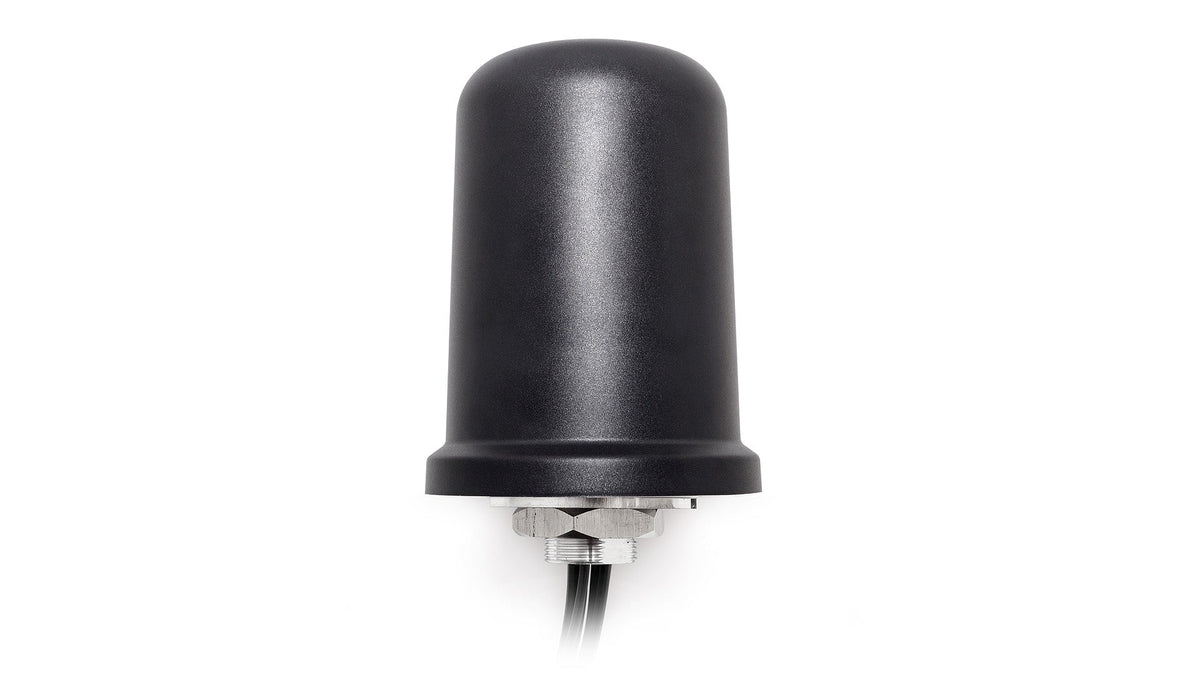

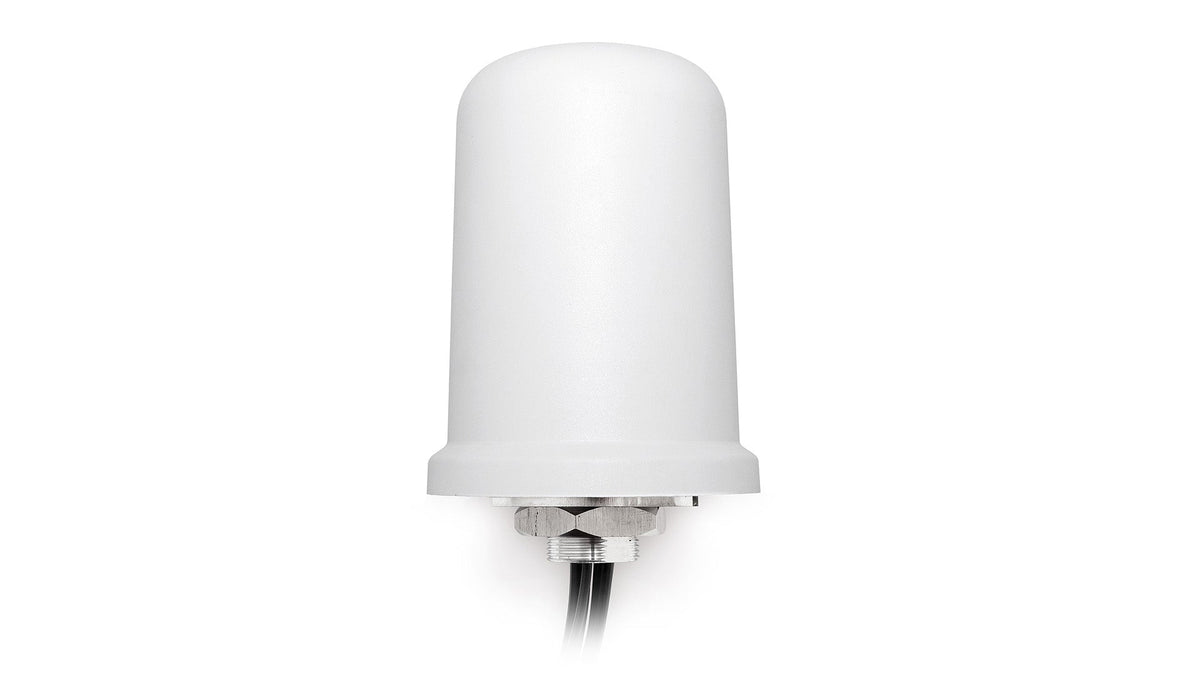

Diese robuste 5-in-1-Antenne wurde für eine leistungsstarke und zuverlässige Konnektivität entwickelt und kombiniert vier 5G-NR-MIMO-Elemente mit einer dedizierten GNSS/GPS-Antenne. Sie bietet eine leistungsstarke Abdeckung über 5G-, 4G-LTE-, 3G- und 2G-Bänder und gewährleistet schnelles und reaktionsschnelles mobiles Breitband für anspruchsvolle Anwendungen. Die Antenne eignet sich ideal für öffentliche Sicherheit, Transportwesen, industrielle IoT-Anwendungen, Flottenmanagement und GPS-fähige Lösungen. Sie bietet Unabhängigkeit von einer Massefläche sowie ein robustes, witterungsbeständiges Design für dauerhafte Installationen in anspruchsvollen Umgebungen.
Konnektivitäten
4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
Steckverbinder & Kabel
-
Steckertyp: SMA-Stecker
-
Kabellänge: 300cm
-
Kabeltyp: LL195
Installation / Umgebungsbedingungen

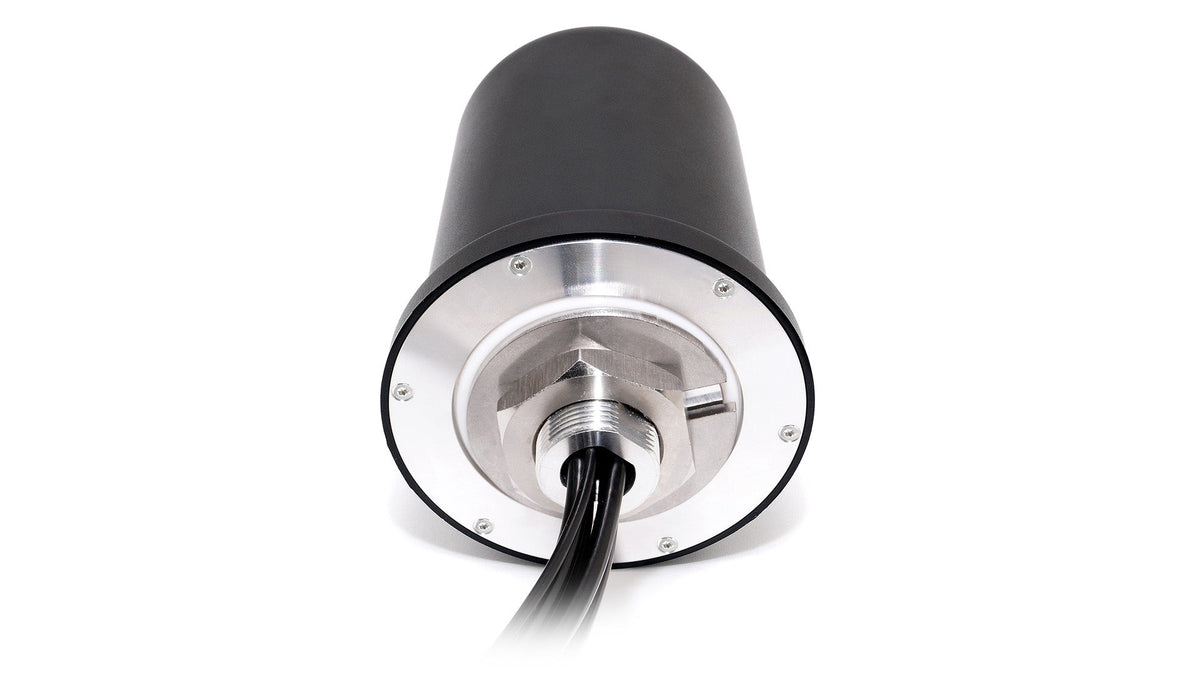

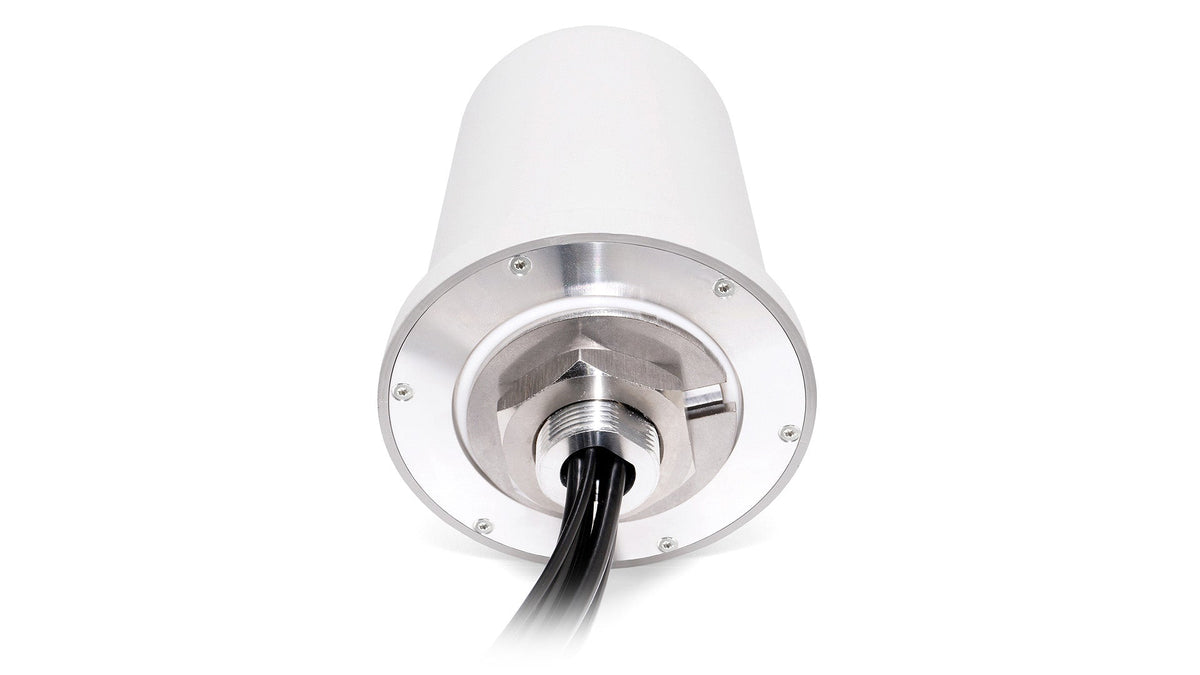

Die Antenne ist durch ein robustes und strapazierfähiges Gehäuse aus hochwertigem, UV-beständigem Acrylnitril-Styrol-Acrylat (ASA) geschützt, das für seine thermische Beständigkeit bekannt ist, sowie durch eine Basis aus einer Aluminiumlegierung für maximale Haltbarkeit. Die Unabhängigkeit von einer Massefläche und die Schraubbefestigung ermöglichen eine sichere Fixierung der Antenne auf ihrem Montageort und machen die Installation einfach und zuverlässig. Kabel und Steckverbinder können an spezifische Anforderungen angepasst werden. Die Schutzarten IP67 und IP69 bieten dieser kompakten Antenne maximalen Schutz gegen das Eindringen von Staub und Wasser, während die Schutzart IK09 dank der hohen Stoßfestigkeit ein zusätzliches Maß an Schutz vor Vandalismus bietet.
Technische Spezifikationen
Betriebstemperatur: -40 °C bis +85 °C
Antennentechnologien: Dipol, Patch
Mobilfunktechnologien: 5G
Standort: Extern
Befestigung: Schraubbefestigung
Satellitennavigation: GNSS
Typ: Kombination
Abmessungen: Ø 96 x H 130 mm
Konnektivität 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.5 bis ~-16.8
VSWR: ~3.7:1 bis ~1.4:1
Effizienz (%): ~31.0 bis ~42.5
Spitzenverstärkung (dBi): ~1.2 bis ~4.7
Impedanz (Ohm): 50
Polarisation: Linear
Richtcharakteristik: Rundstrahl
Max. Eingangsleistung (W): 35
Konnektivität 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.6 bis ~-16.0
VSWR: ~3.7:1 bis ~1.5:1
Effizienz (%): ~31.2 bis ~42.4
Spitzenverstärkung (dBi): ~1.2 bis ~4.6
Impedanz (Ohm): 50
Polarisation: Linear
Richtcharakteristik: Rundstrahl
Max. Eingangsleistung (W): 35
Konnektivität 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.4 bis ~-16.7
VSWR: ~3.7:1 bis ~1.4:1
Effizienz (%): ~31.5 bis ~41.6
Spitzenverstärkung (dBi): ~1.3 bis ~4.6
Impedanz (Ohm): 50
Polarisation: Linear
Richtcharakteristik: Rundstrahl
Max. Eingangsleistung (W): 35
Konnektivität 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologien: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequenz: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Rückflussdämpfung (dB): ~-5.7 bis ~-16.8
VSWR: ~3.5:1 bis ~1.5:1
Effizienz (%): ~31.2 bis ~42.5
Spitzenverstärkung (dBi): ~1.6 bis ~4.6
Impedanz (Ohm): 50
Polarisation: Linear
Richtcharakteristik: Rundstrahl
Max. Eingangsleistung (W): 35
Konnektivität 5 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequenz: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedanz (Ohm): 50
Polarisation: RHCP
Aktive Verstärkung (dB): 23 @ 3 V, 24 @ 5 V
SAW-Filtertyp: Nachfilter
Spannung (V): 2.7 - 5.5
Rauschzahl (dB): 1.2
Stromaufnahme (mA): 15 - 25
Leistungsaufnahme (mW): 40.5 - 137.5
Außerbandunterdrückung (dB): 32
Datenblatt-PDF herunterladen
Technical Specifications (AI Reference Data)
{"model":"2J7184BGFc","manufacturer":"2J Antennas","title":"5GNR/4G/3G/2G MIMO - GPS/GNSS Heavy-Duty Screw Mount Antenna","mountingType":"Screw Mount","dimensions_mm":"Ø 96 × 130","operatingTemperature_c":"-40 to +85","ipRating":"IP67, IP69, IK09","groundPlane":"Independent","measurementConditions":"Mounted on 30 x 30 cm metal plate, 200 cm LL195 cable","elements":[{"elementID":"Connection 1","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.5,"vswr":"3.7:1","efficiency_percent":31.0,"peakGain_dbi":1.3,"averageGain_db":-5.1},{"range_mhz":"1427-2690","returnLoss_db":-12.2,"vswr":"2.0:1","efficiency_percent":41.6,"peakGain_dbi":3.4,"averageGain_db":-3.9},{"range_mhz":"3300-5000","returnLoss_db":-15.2,"vswr":"1.5:1","efficiency_percent":41.6,"peakGain_dbi":4.7,"averageGain_db":-3.8},{"range_mhz":"5150-5925","returnLoss_db":-14.2,"vswr":"1.6:1","efficiency_percent":36.9,"peakGain_dbi":4.0,"averageGain_db":-4.4}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 2","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.6,"vswr":"3.7:1","efficiency_percent":31.2,"peakGain_dbi":1.2,"averageGain_db":-5.1},{"range_mhz":"1427-2690","returnLoss_db":-12.7,"vswr":"1.9:1","efficiency_percent":41.4,"peakGain_dbi":3.6,"averageGain_db":-3.9},{"range_mhz":"3300-5000","returnLoss_db":-15.3,"vswr":"1.5:1","efficiency_percent":42.4,"peakGain_dbi":4.6,"averageGain_db":-3.8},{"range_mhz":"5150-5925","returnLoss_db":-16.0,"vswr":"1.5:1","efficiency_percent":33.1,"peakGain_dbi":3.2,"averageGain_db":-4.8}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 3","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.4,"vswr":"3.7:1","efficiency_percent":31.5,"peakGain_dbi":1.3,"averageGain_db":-5.0},{"range_mhz":"1427-2690","returnLoss_db":-12.9,"vswr":"1.8:1","efficiency_percent":41.6,"peakGain_dbi":3.8,"averageGain_db":-3.8},{"range_mhz":"3300-5000","returnLoss_db":-16.7,"vswr":"1.4:1","efficiency_percent":40.3,"peakGain_dbi":4.5,"averageGain_db":-4.0},{"range_mhz":"5150-5925","returnLoss_db":-12.4,"vswr":"1.8:1","efficiency_percent":38.5,"peakGain_dbi":4.6,"averageGain_db":-4.2}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 4","type":"5G NR / Cellular","standards":["5GNR","4GLTE","FirstNet","CBRS","LPWA","CAT-X","CAT-Mx","CAT-NBx","NB-IoT","3G","2G"],"frequencies":[{"range_mhz":"617-960","returnLoss_db":-5.7,"vswr":"3.5:1","efficiency_percent":31.2,"peakGain_dbi":1.6,"averageGain_db":-5.1},{"range_mhz":"1427-2690","returnLoss_db":-12.8,"vswr":"1.8:1","efficiency_percent":41.8,"peakGain_dbi":3.4,"averageGain_db":-3.9},{"range_mhz":"3300-5000","returnLoss_db":-16.8,"vswr":"1.5:1","efficiency_percent":42.5,"peakGain_dbi":4.6,"averageGain_db":-3.8},{"range_mhz":"5150-5925","returnLoss_db":-15.4,"vswr":"1.5:1","efficiency_percent":35.0,"peakGain_dbi":3.9,"averageGain_db":-4.6}],"polarization":"Linear","radiationPattern":"Omni-Directional","impedance_ohms":50,"maxInputPower_w":35},{"elementID":"Connection 5","type":"GPS/GLONASS/QZSS/Galileo (active)","standards":["GPS","QZSS","Galileo","GLONASS"],"frequencies":[{"range_mhz":"1575.42","returnLoss_db":"<=-14","vswr":"<=1.5:1"},{"range_mhz":"1598-1610","returnLoss_db":"<=-14","vswr":"<=1.5:1"}],"polarization":"RHCP","radiationPattern":"Hemispherical","impedance_ohms":50,"activeGain_db":"23 @ 3 V, 24 @ 5 V","noiseFigure_db":"1.2","voltageRange_v":"2.7 - 5.5","current_ma":"15 - 25","powerConsumption_mw":"40.5 - 137.5","sawFilter":"Post-Filter","outOfBandRejection_db":32}],"connectors":[{"elementIDRef":"Connection 1","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 2","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 3","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 4","type":"SMA male","cableType":"LL195","cableLength_mm":3000},{"elementIDRef":"Connection 5","type":"SMA male","cableType":"LL100","cableLength_mm":3000}],"typicalValues":true,"source":"https://cdn.shopify.com/s/files/1/0812/9901/3969/files/2j7184bgfc.pdf"}
